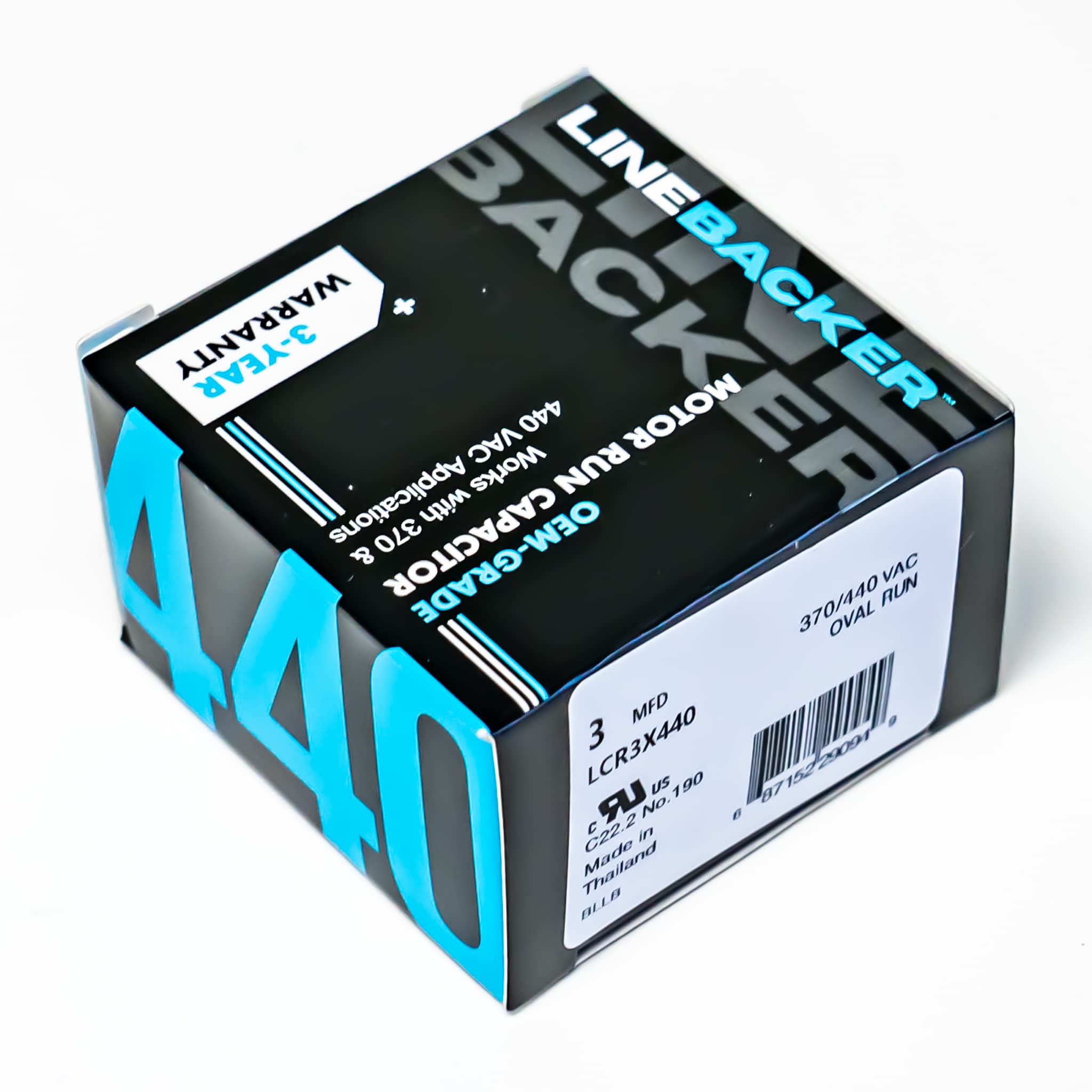

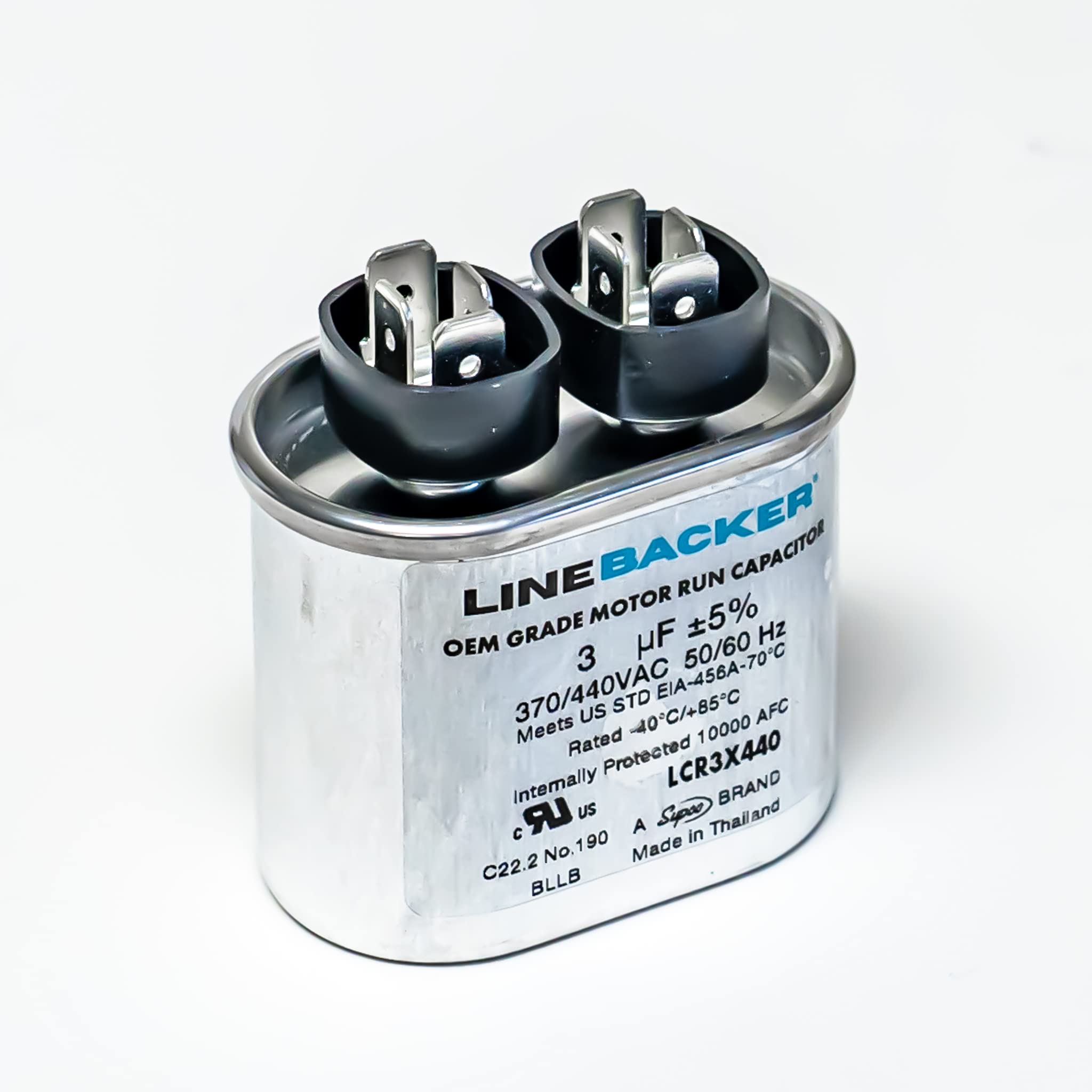

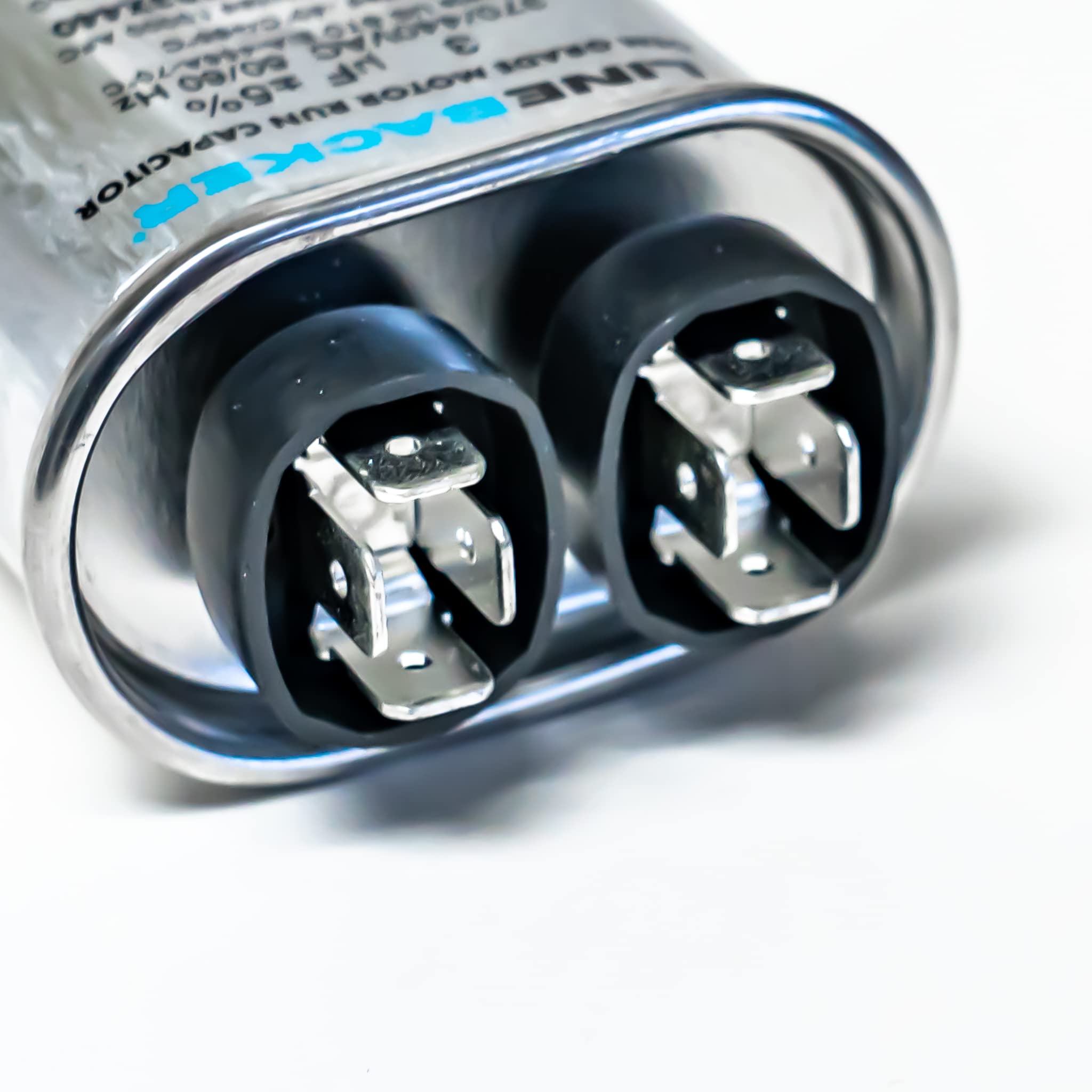

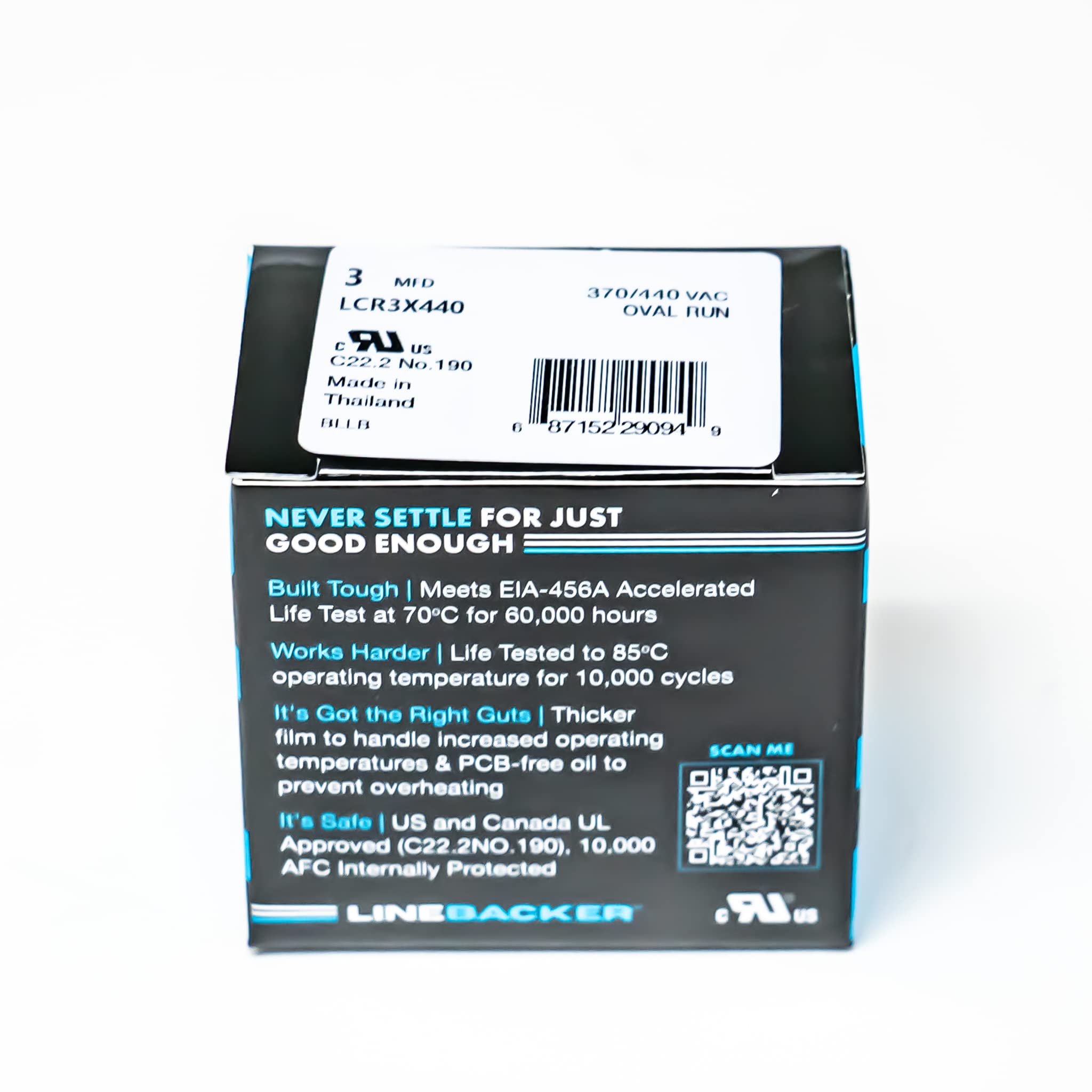

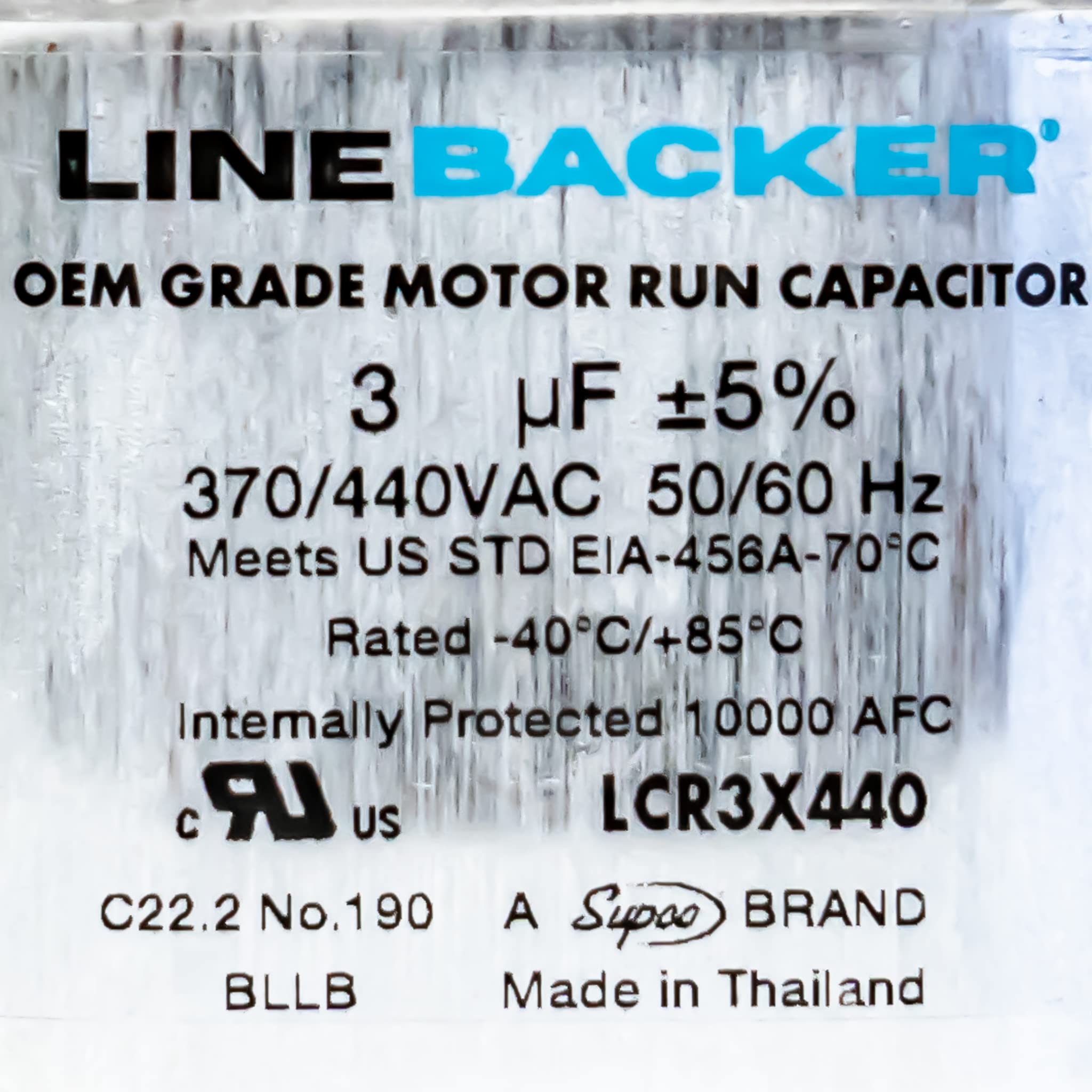

Supco LCR3X440 Capacitor Oval Run 3 uf 370/440 Volts

Product Description

The SUPCO LCR3X440 is an oval run capacitor with 3 uf and 370/440 Volts, designed for HVAC motors and compressors. This Linebacker capacitor meets EIA-456A accelerated life test standards. It is built for longevity and performance, manufactured with thick polypropylene foil to handle increased operating temperatures.

• Dimensions: 2.03 in x 1.24 in x 1.57 in
• Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours
• 10,000 AFC pressure sensitive short circuit interrupting capability

Product Highlights

The SUPCO LCR3X440 capacitor is suitable for condenser fan motors, furnace blower motors, refrigeration compressors and air conditioning compressors.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCR3X440

Technical Specifications

• Part ID / MPN: LCR3X440
• Product Type: CAPACITOR
• Manufacturer: Supco
• Brand: Supco
• Model / MPN: LCR3X440
• Voltage: Up to 440 VAC
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Foil Thickness: 6.0 µm +/- 5%
• Standard Tolerance: +/- 5%
• MFD Value: 3
• Style: Oval Run
• Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
• Voltage Rating: 440 V
• Capacitor Voltage: 370/440VAC
• Capacitor (MFD): 3 Mfd uf
• Tolerance (MFD): + / - 5%
• Agency: UL, VDE
