Supco LCD75+5X440R Capacitor Round Dual Run 75 + 5 uf 370/440 Volts LCD75+5X440R

Product Description

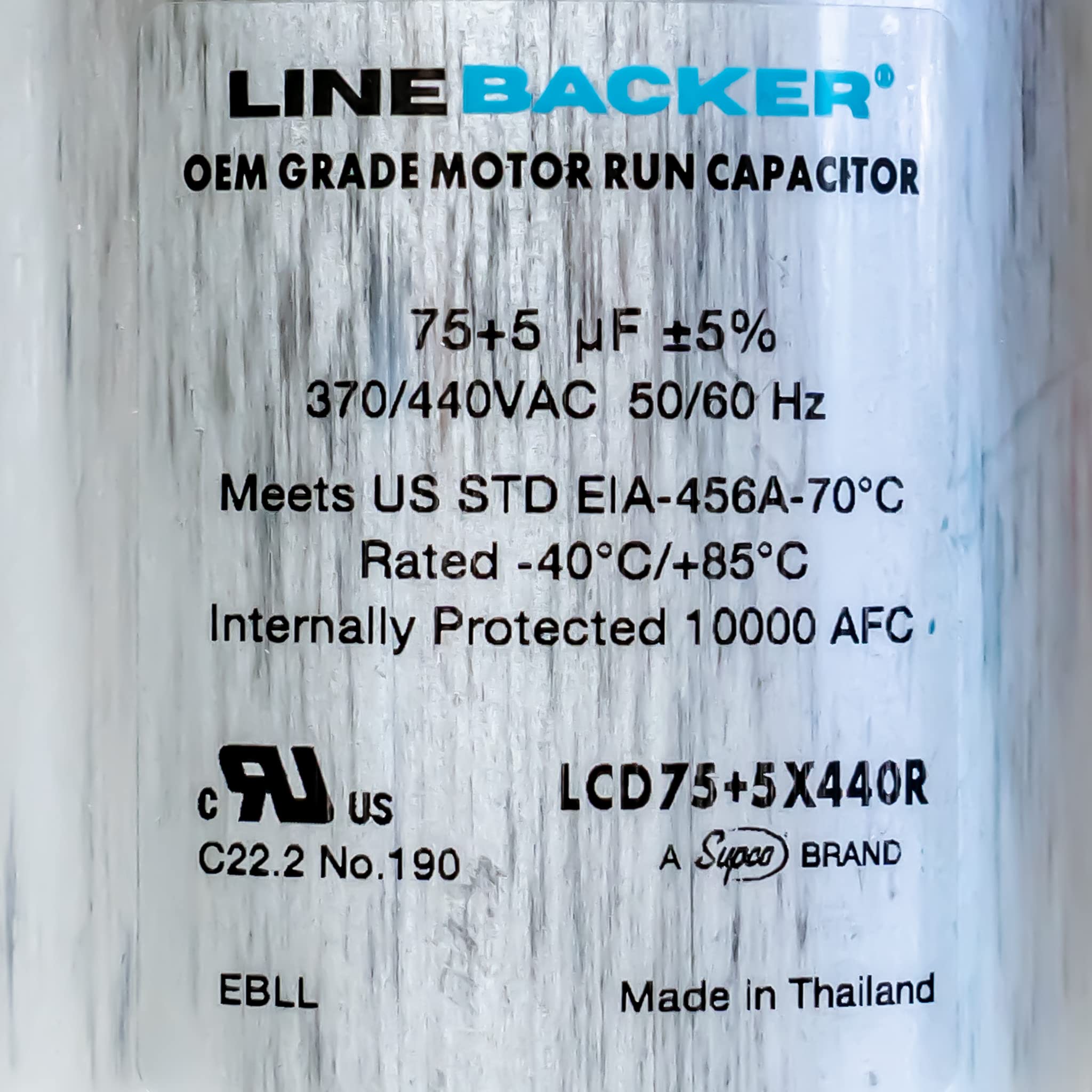

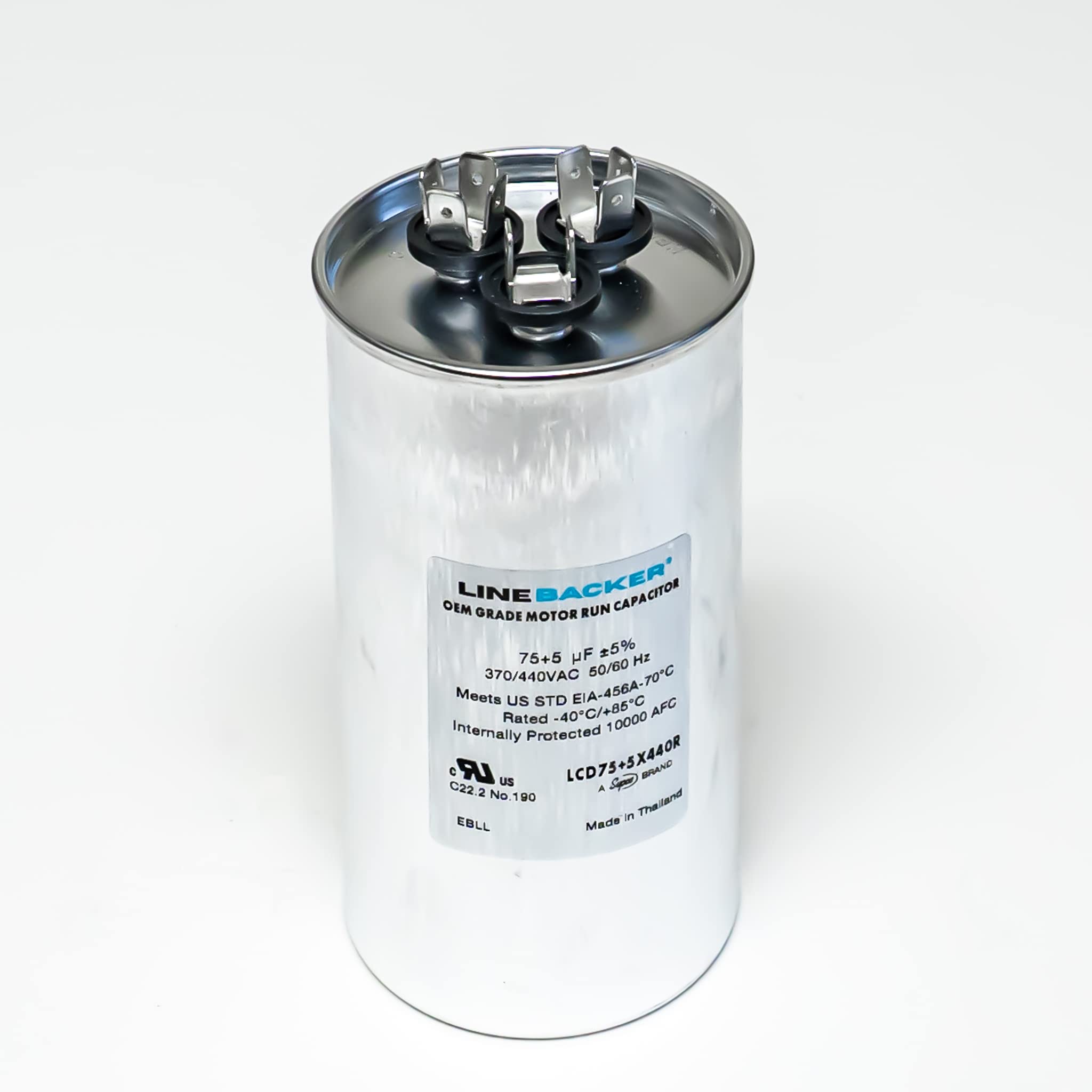

The SUPCO LCD75+5X440R is a round dual run capacitor with 75 + 5 Mfd uf. It has dimensions of 2.5 in dia x 4.7 in. Linebacker capacitors are manufactured with thick polypropylene foil to handle increased operating temperatures. It is suitable for condenser fan motors, refrigeration compressors, air conditioning compressors, and furnace blower motors.

• Supco Part Number LCD75+5X440R
• Capacitor, Round Dual Run, 75 + 5 Mfd uf
• Dimensions: 2.5 in dia x 4.7 in

Product Highlights

This capacitor meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours and has a 10,000 AFC pressure sensitive short circuit interrupting capability.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCD75+5X440R
• Country of Origin: Thailand

Technical Specifications

• Voltage: Up to 440 VAC
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Foil Thickness: 6.0 µm +/- 5%
• Standard Tolerance: +/- 5%
• MFD Value: 75+5
• Style: Round
• Size: 2.5x4.72
• Applications: Condenser fan motors, Refrigeration Compressors, Air conditioning compressors, Furnace blower motors
• Capacitor Voltage: 370/440VAC
• Capacitor (MFD): 75 + 5 Mfd uf
• Dimensions: 2.5 in dia x 4.7 in
• Tolerance (MFD): + / - 5%
• Agency: UL, VDE
• Capacitance: 75 + 5 uf
• Model Number: LCD75+5X440R
• Brand: Supco
• MPN: LCD75+5X440R
• Manufacturer: Supco
• Product Type: Capacitors
• Category: Capacitors
• UPC: 687152290642
