Supco LCD60+10X440R Capacitor Round Dual Run 60 + 10 uf 370/440 Volts LCD60+10X440R

Product Description

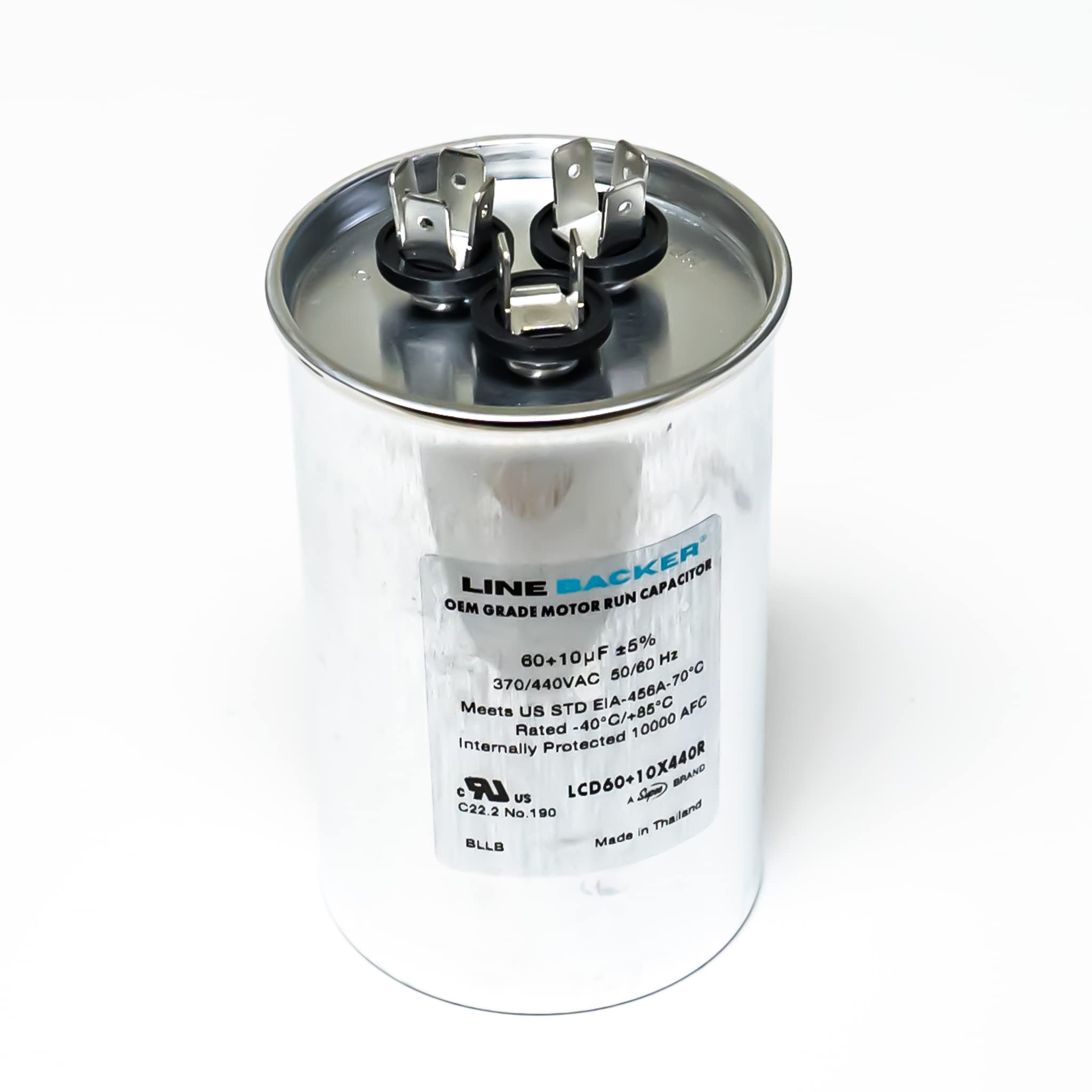

The SUPCO LCD60+10X440R is a capacitor round dual run 60 + 10 uf 370/440 Volts for HVAC motors and compressors. Linebacker capacitors are manufactured to meet rigorous standards. It is made with thick polypropylene foil to handle increased operating temperatures. Ideal for condenser fan motors, furnace blower motors, refrigeration compressors, and air conditioning compressors.

• Capacitor, Round Dual Run, 60 + 10 Mfd uf
• Dimensions: 2.5 in dia x 3.94 in
• Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours

Product Highlights

The SUPCO LCD60+10X440R capacitor is life tested and dielectric tested for insulation effectiveness. It has a 10,000 AFC pressure sensitive short circuit interrupting capability and is UL approved for US and Canada.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCD60+10X440R

Technical Specifications

• Brand: Supco
• Manufacturer: Supco
• Part ID / MPN: LCD60+10X440R
• Model / MPN: LCD60+10X440R
• Product Type: CAPACITOR
• Voltage: Up to 440 VAC
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Foil Thickness: 6.0 5m +/- 5%
• Standard Tolerance: +/- 5%
• MFD Value: 60+10
• Style: Round
• Size: 2.5x3.94
• Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
• Capacitor Voltage: 370/440VAC
• Capacitor (MFD): 60 + 10 Mfd uf
• Dimensions: 2.5 in dia x 3.94 in
• Tolerance (MFD): + / - 5%
• Agency: UL, VDE
• Capacitance: 60+10 uF
• Diameter: 2-1/2 in
• Housing Material: Polypropylene Foil
• Overall Height: 3.94 in
• Shape: Round
• Voltage Rating: 440 V
