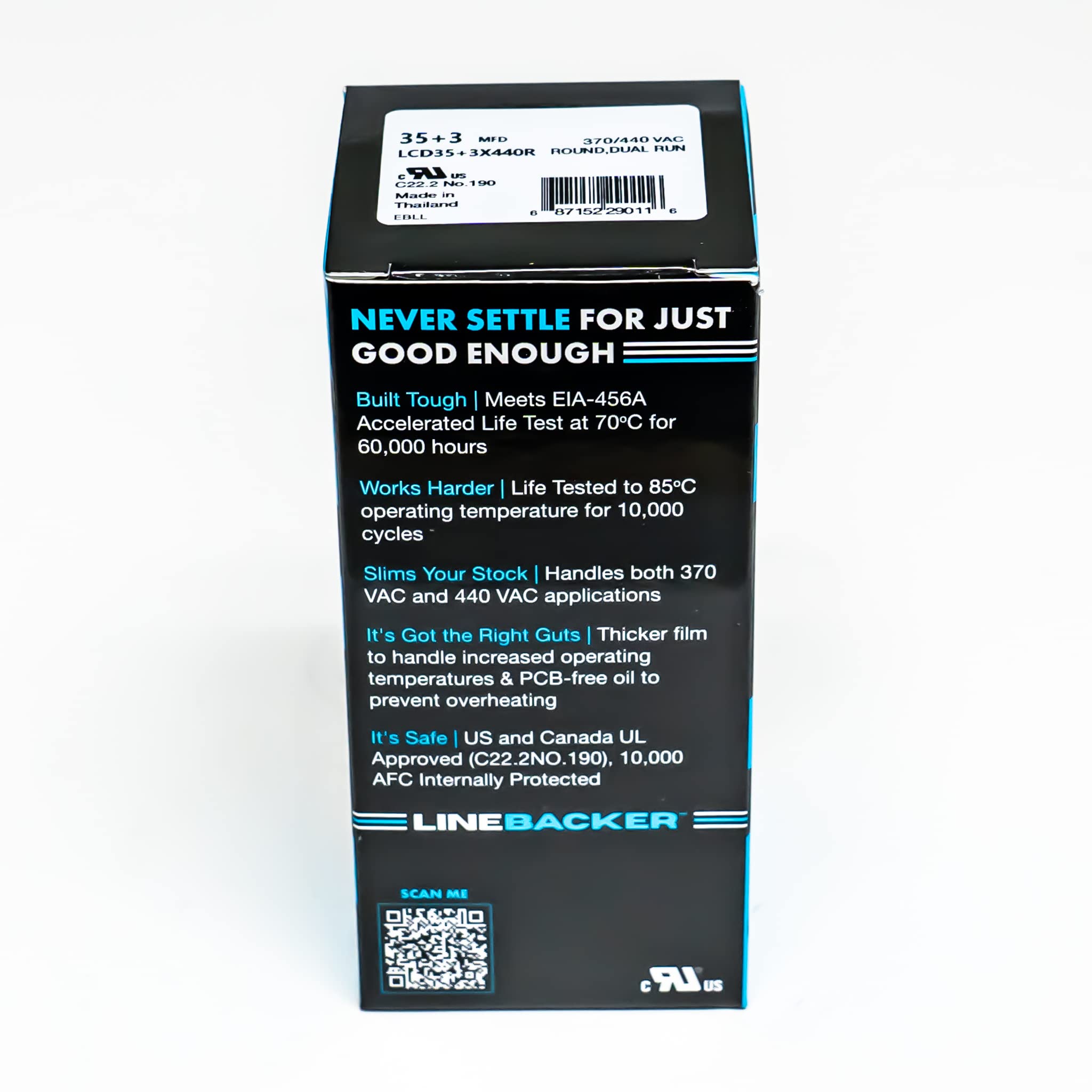

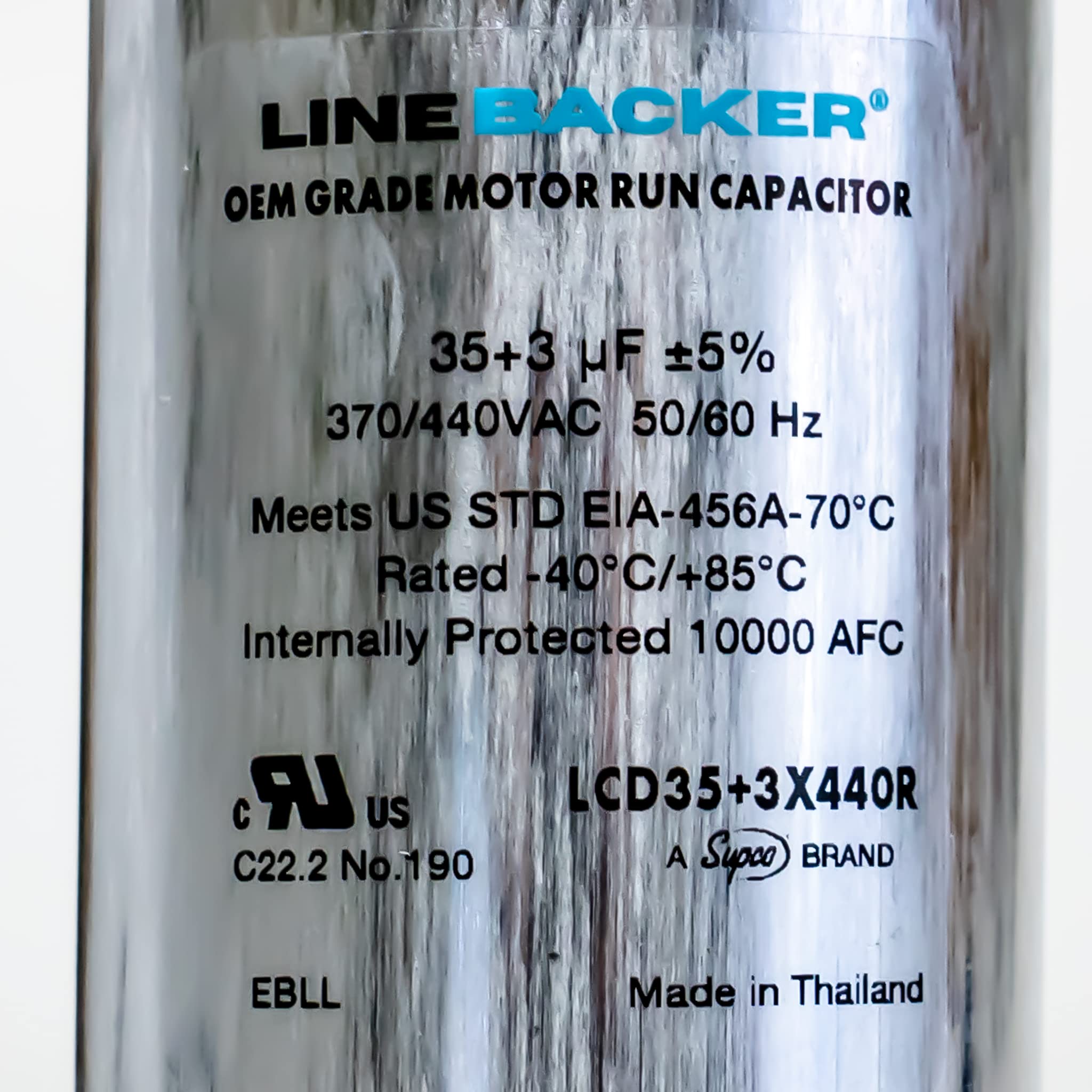

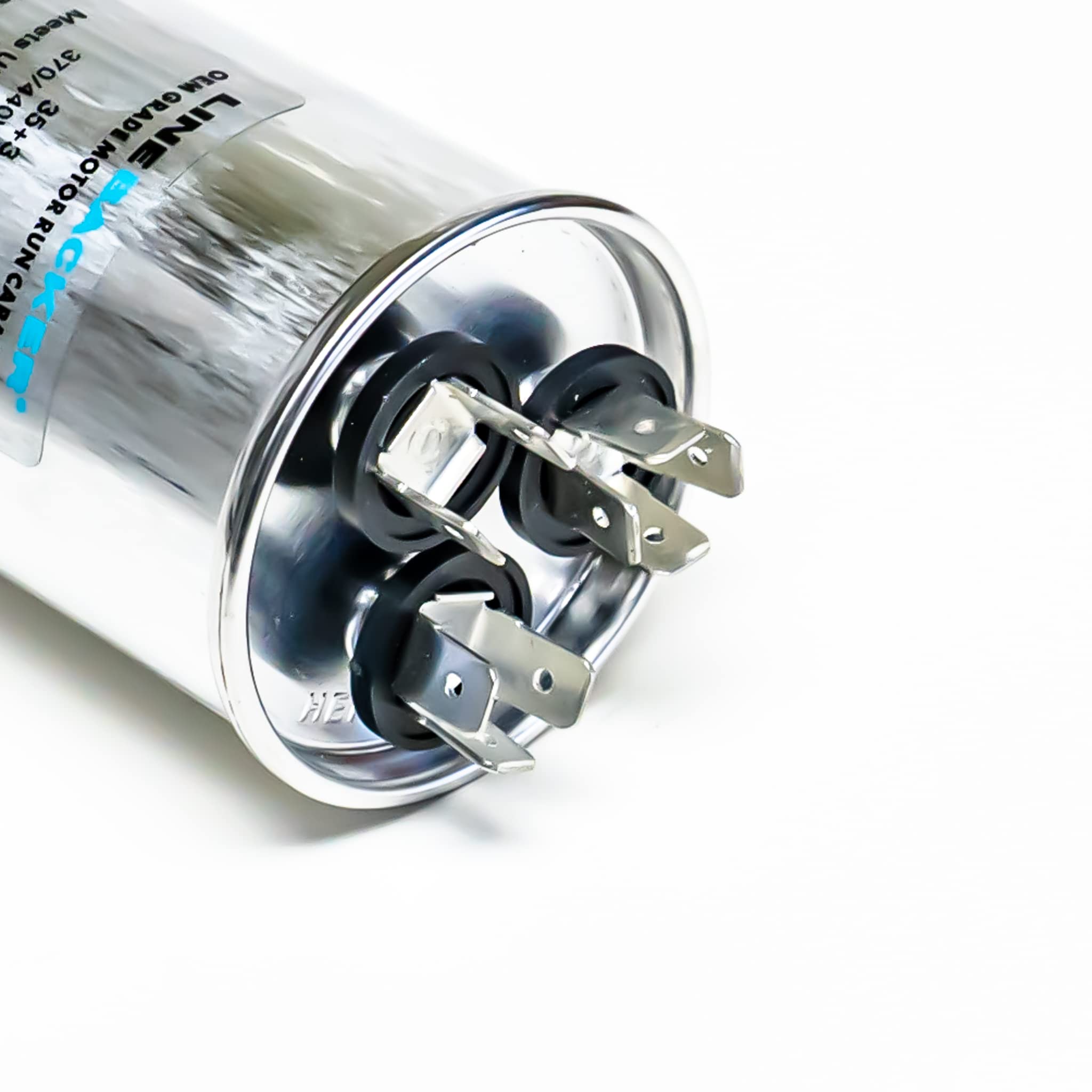

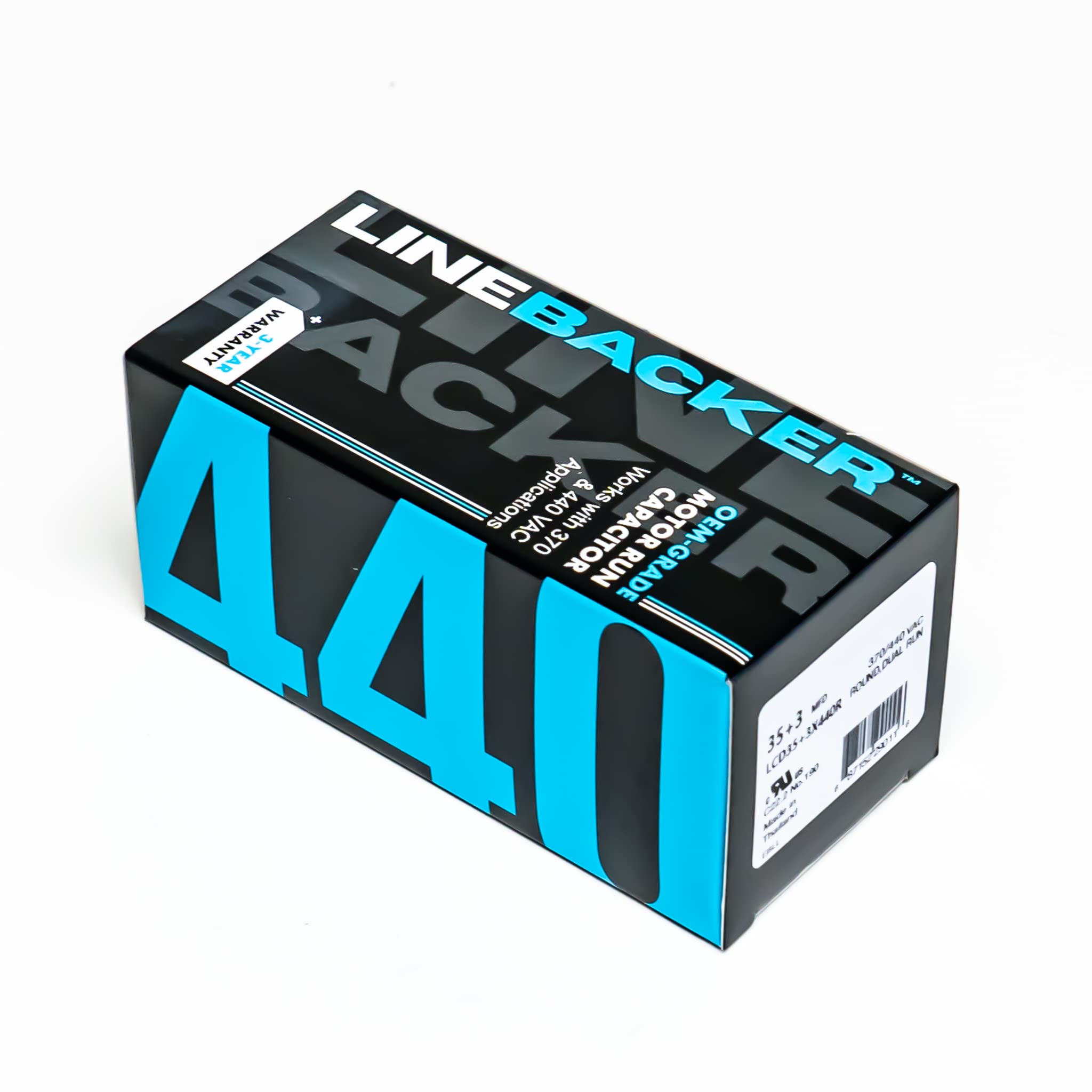

Supco LCD35+3X440R Capacitor Round Dual Run 35 + 3 uf 370/440 Volts

Product Description

The SUPCO LCD35+3X440R is a round dual run capacitor designed for HVAC motors and compressors. This capacitor has a capacitance of 35 + 3 Mfd uf and a voltage rating of 370/440 Volts. It is built to meet EIA-456A accelerated life test at 70 degrees C for 60,000 hours.

• Capacitor, Round Dual Run, 35 + 3 Mfd uf
• Dimensions: 2 in dia x 3.9 in
• Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours

Product Highlights

The SUPCO LCD35+3X440R capacitor is ideal for HVAC systems, ensuring longevity and reliable performance with its robust design and rigorous testing.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCD35+3X440R

Technical Specifications

• Part Number: LCD35+3X440R
• Capacitor Type: Round Dual Run
• Capacitance: 35 + 3 Mfd uf
• Voltage: 370/440 Volts
• Capacitor Voltage: 370/440VAC
• Style: Round
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40 to 85 degrees F (-40 to 85 C)
• Agency: UL, VDE
• Diameter: 1.97 in
• Housing Material: Polypropylene Foil
• Overall Height: 3.94 in
• Shape: Round
• Voltage Rating: 440 V
