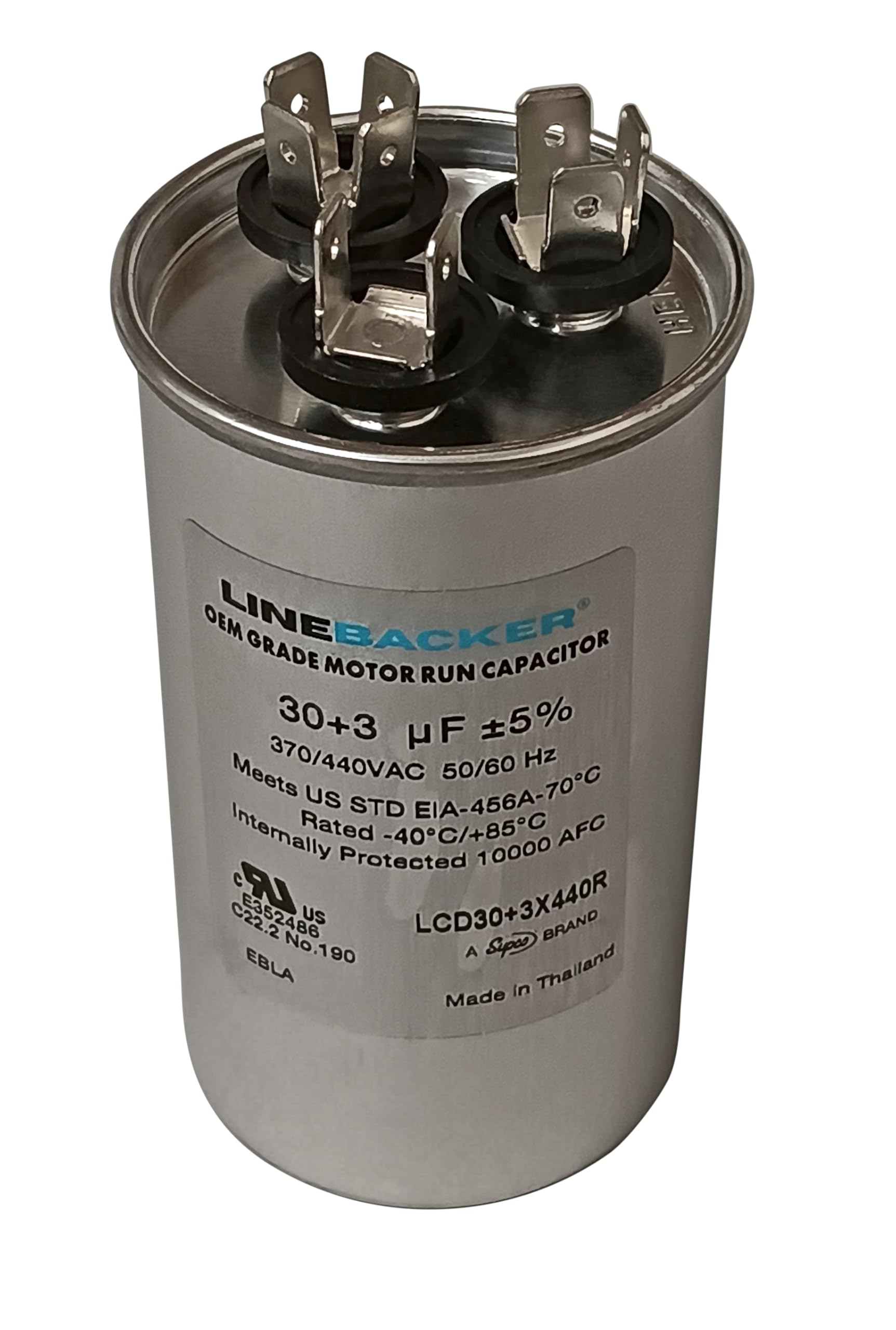

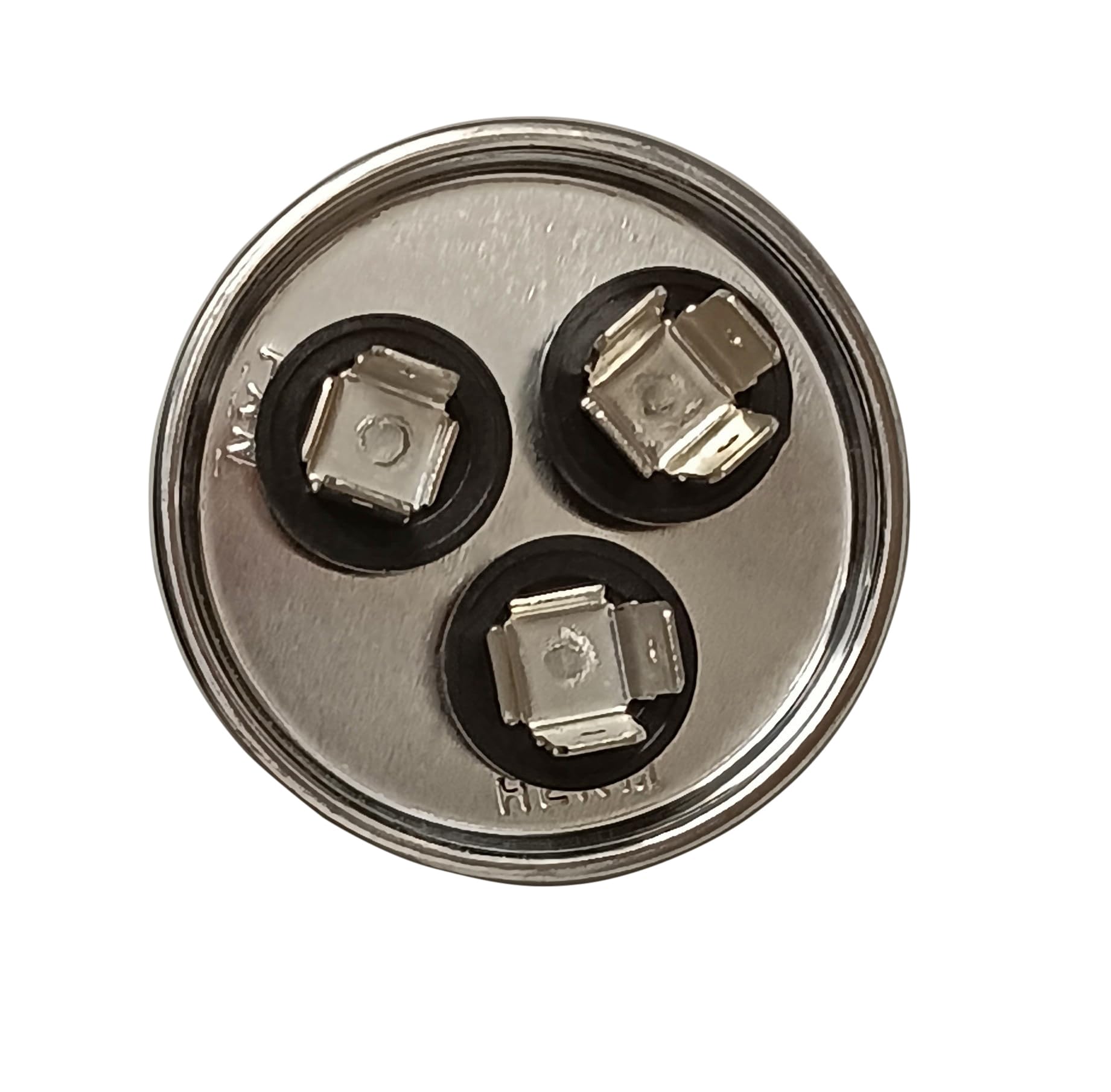

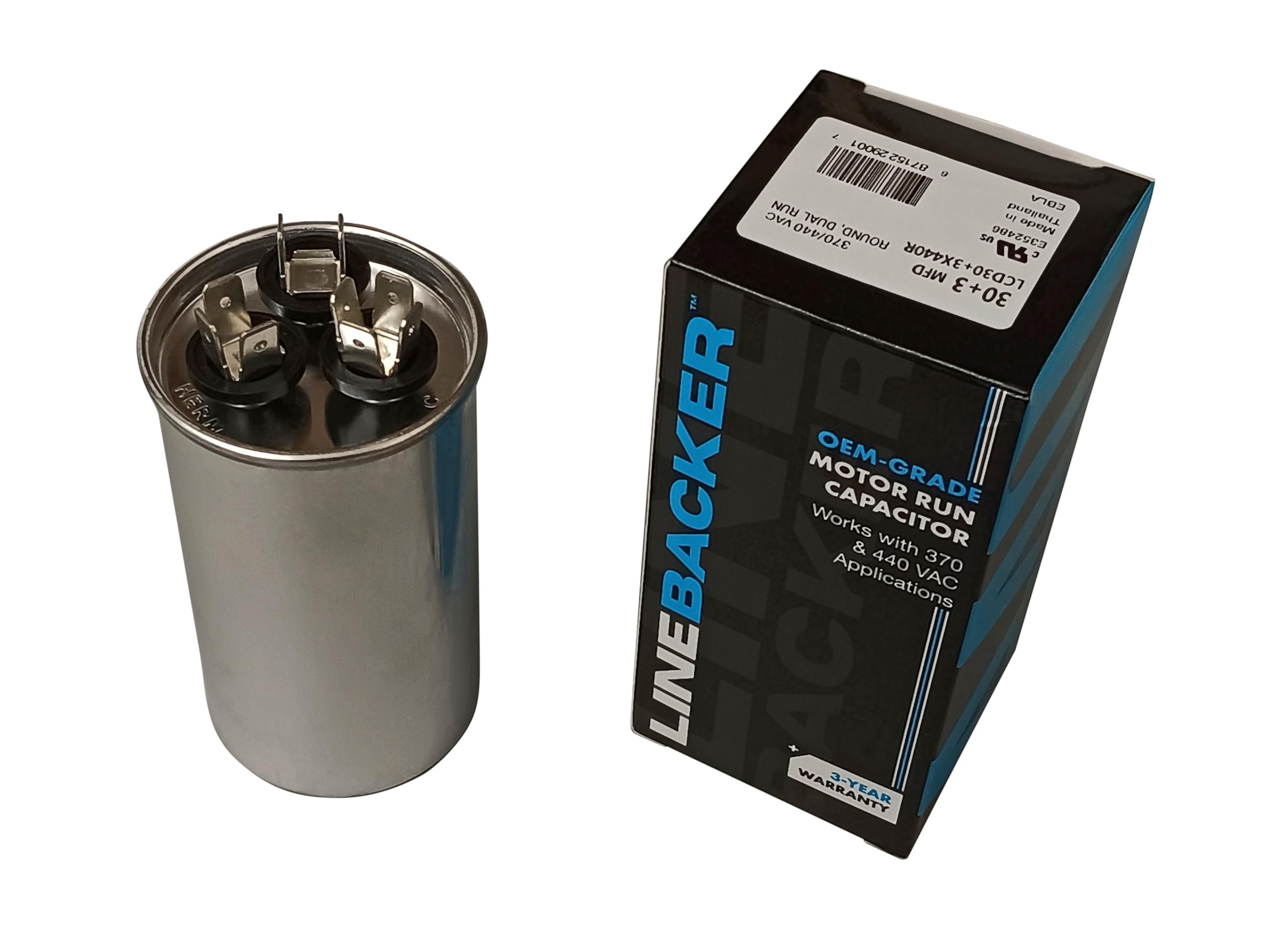

Supco LCD30+3X440R Capacitor Round Dual Run 30 + 3 uf 370/440 Volts LCD30+3X440R

Product Description

The Supco LCD30+3X440R is a round dual run capacitor with 30 + 3 uf and 370/440 Volts, designed for HVAC motors and compressors. It meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours. This capacitor is built for longevity and performance, manufactured with thick polypropylene foil to handle increased operating temperatures.

• Capacitor, Round Dual Run, 30 + 3 Mfd uf
• Dimensions: 2 in dia x 3.5 in
• Meets EIA-456A accelerated life test at 70 degrees C for 60,000 hours

Product Highlights

The Supco LCD30+3X440R capacitor ensures reliable operation in HVAC systems, offering durability and performance under demanding conditions.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: LCD30+3X440R

Technical Specifications

• Brand: Supco
• MPN: LCD30+3X440R
• UPC: 687152290017
• Product Type: CAPACITOR
• Manufacturer: Supco
• Model / MPN: LCD30+3X440R
• Capacitor Voltage: 370/440VAC
• Style: Round
• Capacitor (MFD): 30 + 3 Mfd uf
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40 to 85 degrees F (-40 to 85 C)
• Agency: UL, VDE
• Capacitance: 30+3 uF
• Diameter: 1.97 in
• Housing Material: Polypropylene
• Overall Height: 3.54 in
• Shape: Round
• Voltage Rating: 440 VAC
• Additional Information: +/-5% Standard Tolerance, -40 to 185 deg F Temperature Rating, 6 um +/-5% Foil Thickness
• Capacitor Type: Dual Run Capacitor
• Microfarad Rating (MFD): 30 + 3 µF
• Supply Voltage: 440V
