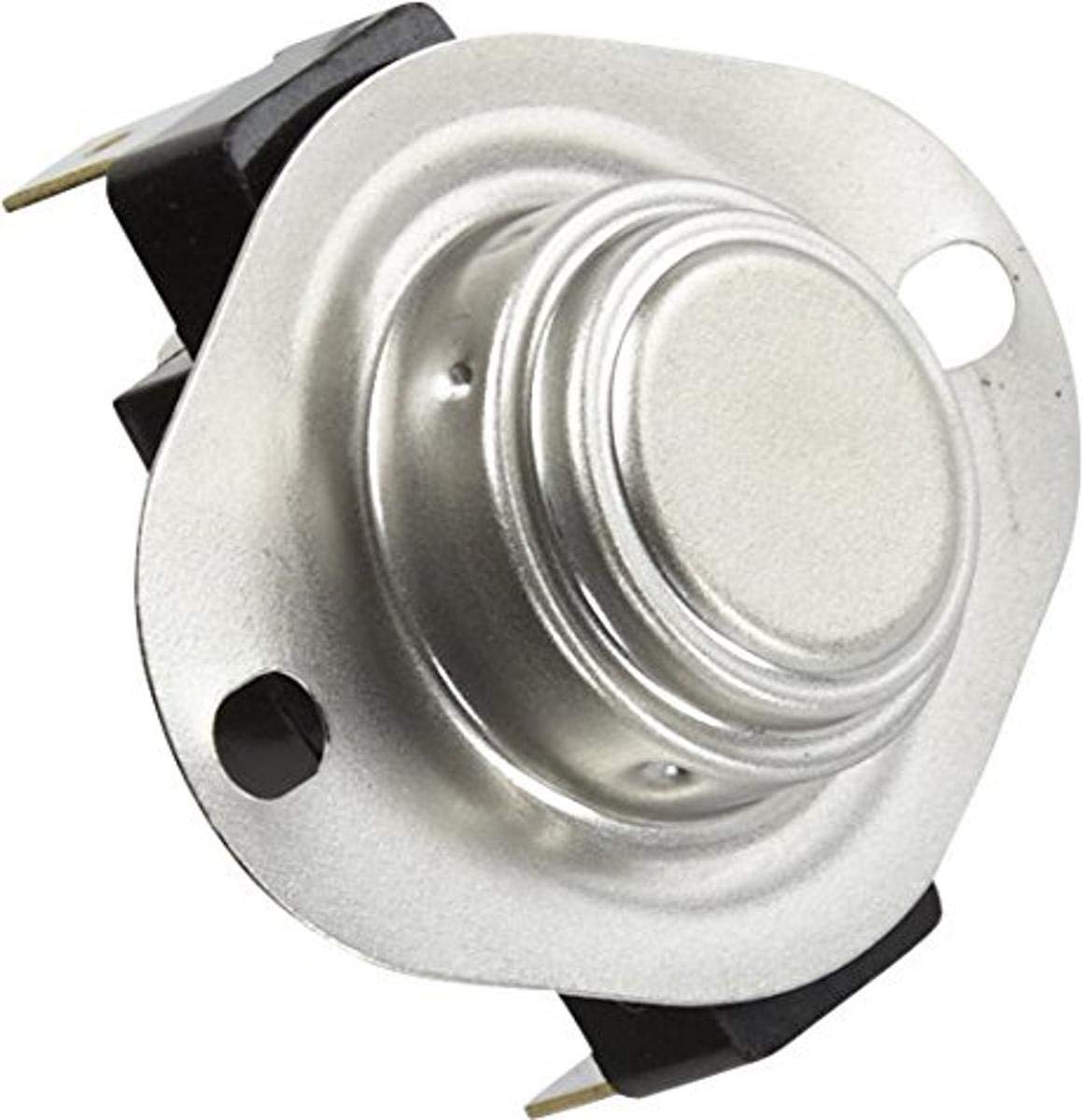

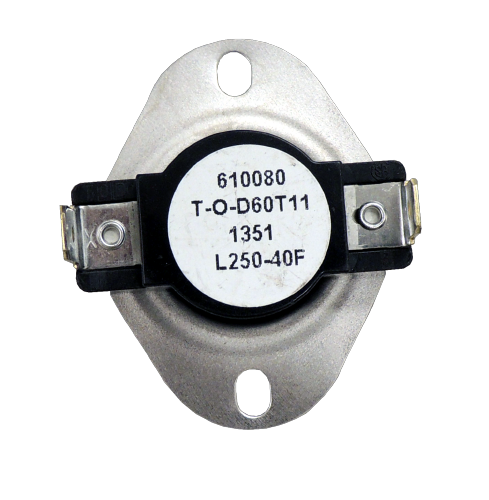

Supco L250 Thermostat 60T11 Style

Product Description

The SUPCO L250 thermostat is a bimetal disc temperature control offering reliability in a cost-effective design. It can handle loads up to 25 amps at 240VAC. The L-Series switches are single pole single throw 60T11 style (3/4") with auto-reset, designed to open on temperature rise.

• 1/4" quick disconnect terminals
• Close when temperature differential is reached
• Open on rise

Product Highlights

The SUPCO L250 thermostat is suitable for fan and limit applications and domestic dryers.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: L250

Technical Specifications

• Differential: 40
• Open (F): 250
• Close (F): 210
• FLA @ 120VAC: 10A
• FLA @ 240VAC: 5A
• LRA @ 120VAC: 60A
• LRA @ 240VAC: 30A
• Pilot Duty @ 120VAC / 240VAC: 125 VA
• RLA @ 120VAC / 240VAC: 25A
• Agency: UL®, CSA®
• Applications: Fan and limit applications, Domestic Dryer
• Type: Single pole - single throw
• Opens at: 250 Degrees Fahrenheit
• Closes at: 210 Degrees Fahrenheit
• Terminals: 1/4" quick disconnect
