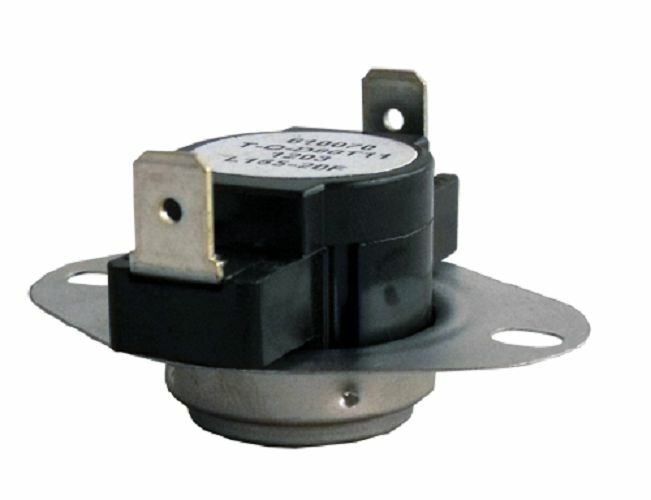

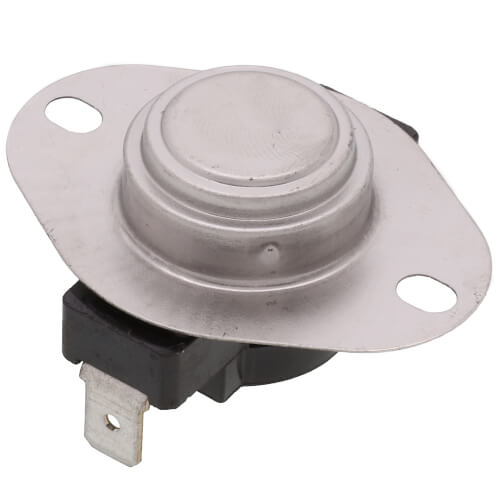

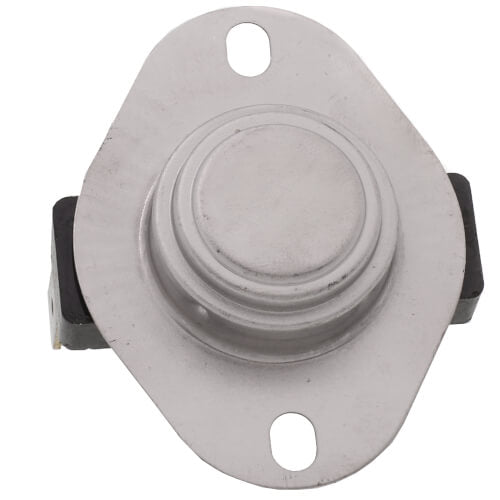

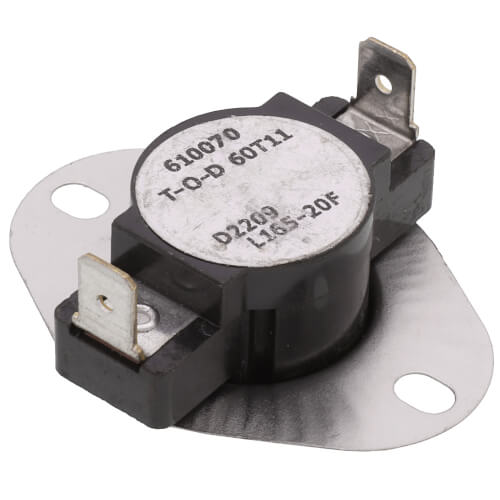

Supco L165-20F L-Series Snap-Action SPST Limit Control Thermostat

Product Description

The SUPCO L165-20F is a limit control thermostat designed for regulating temperature effectively. This model features a bi-metal disc that detects temperature changes and operates quickly to separate contacts. It supports loads up to twenty-five amps at two hundred forty VAC, ensuring durability and efficiency.

• Closes when temperature differential is reached
• Opens on temperature rise
• 1/4 inch quick disconnect terminals

Product Highlights

This thermostat provides reliable temperature control in various systems. Its robust construction ensures longer life and stability in demanding environments.

Product Information

Standard Information

• Brand: SUPCO
• Type: Temperature Limit Control
• Model: L165
• MPN: L165-20F

Technical Specifications

• RLA @ 120VAC / 240VAC: 25A
• Pilot Duty @ 120VAC / 240VAC: 125 VA
• LRA @ 240VAC: 30A
• LRA @ 120VAC: 60A
• FLA @ 240VAC: 5A
• FLA @ 120VAC: 10A
• Differential: 20°F
• Open (°F): 165°F
• Close (°F): 145°F
