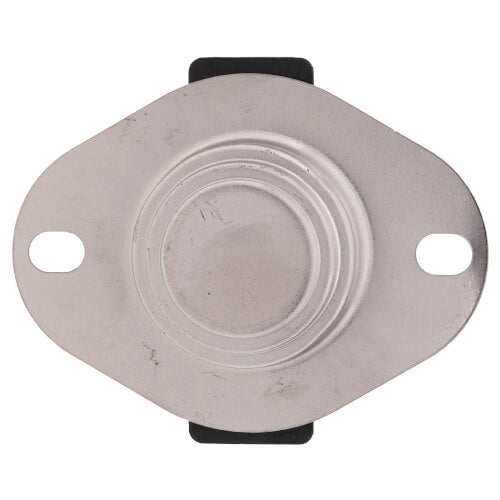

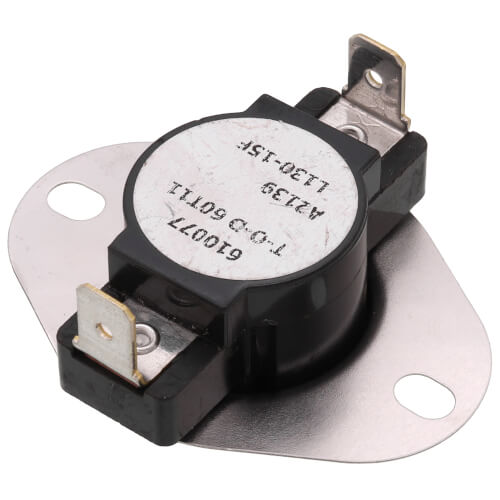

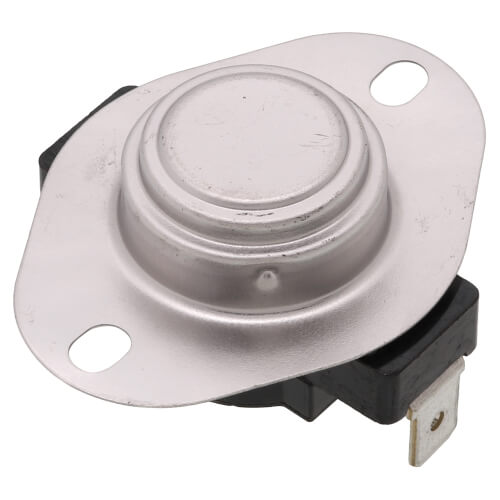

Supco L130 Series General Purpose Thermostat Open on Rise 125 VA Pilot Duty 15 Deg F Differential 115 to 130 Deg F

Product Description

The Supco L130 General Purpose Thermostat is designed for versatile, high-performance temperature control in HVAC systems. Featuring a robust bimetal disc design, it regulates temperatures effectively, making it ideal for fan and limit applications or home laundry dryers.

• SPST contact form allows for simple, straightforward functionality.
• Open on rise switch action ensures reliable performance under changing conditions.
• Quick-connect, 1/4 inch electrical connections for easy installations.

Product Highlights

Constructed to handle up to 25 amps at 240 volts AC, this thermostat is suited for both light commercial and residential settings. Its welded construction enhances integrity, allowing for durable and consistent operation.

Product Information

Standard Information

• Brand: Supco
• MPN: L130

Technical Specifications

• Type: General Purpose
• Series: L Series
• Contact Form: SPST
• Differential: 15 deg F
• Switch Action: Open on Rise
• Inductive Rating: 14/10 A
• Resistive Rating: 25 A
• Pilot Duty Rating: 125 VA
• Temperature Rating: 115 to 130 deg F
• Electrical Connections: 1/4 in Quick-Connect
