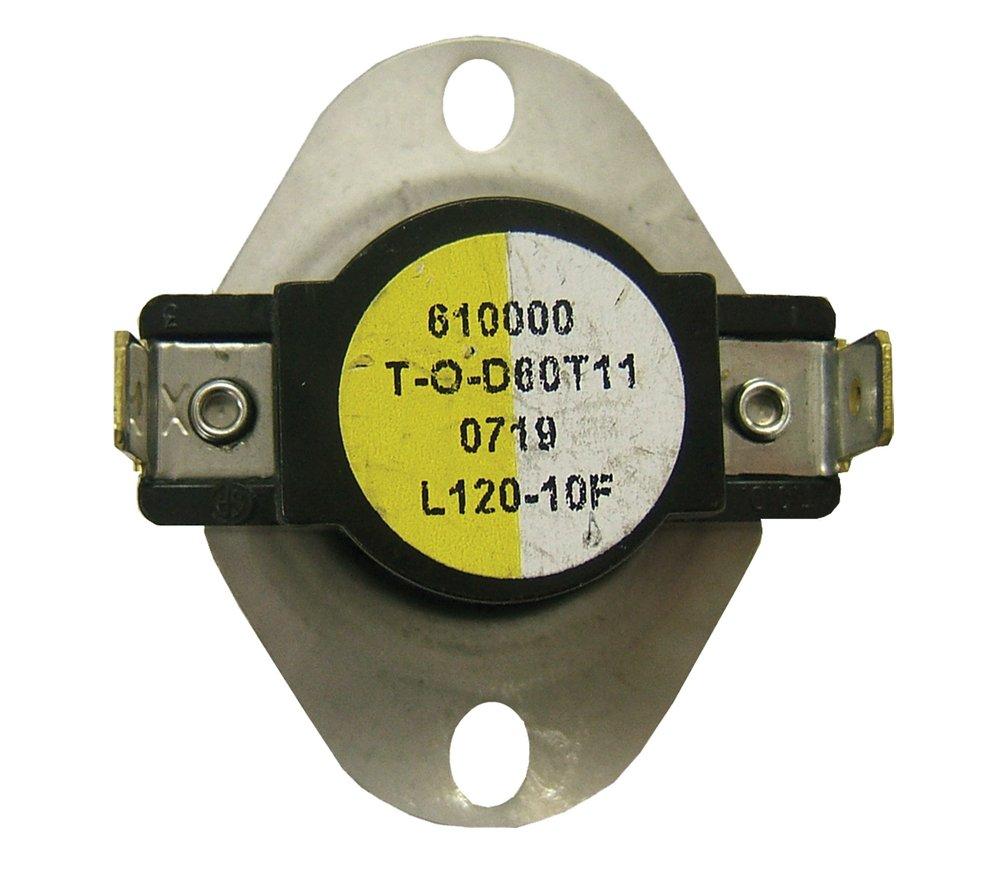

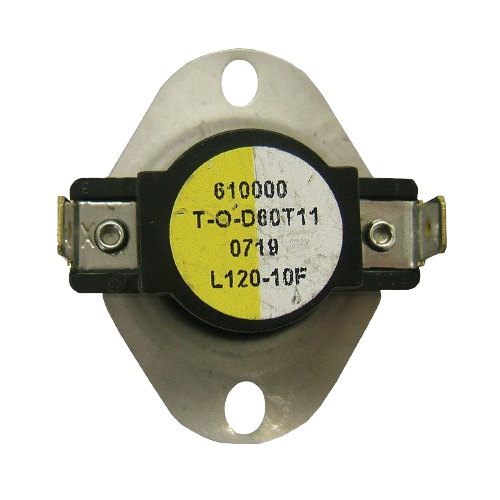

Supco L120 120 Degree Limit Switch 240V (120 Degree) K34-855/626444

Product Description

The Supco L120 is a snap-action limit thermostat (MPN L120) that opens on temperature rise at 120°F and closes at 110°F with a 10°F differential. It is a single-pole single-throw (SPST) control rated 60T, with welded construction and 1/4 in quick-disconnect terminals. The device is suitable for fan and limit applications and domestic dryer controls and provides resistive and pilot-duty electrical ratings.

• Opens at 120°F and closes at 110°F (10°F differential); open-on-rise action, auto-reset
• SPST snap-action switch, 1/4 in quick-disconnect terminals, welded construction
• Electrical ratings include 60T; resistive up to 25 A at 240 VAC; pilot duty 125 VA; UL and CSA approvals

Product Highlights

Snap-action bimetal limit thermostat, 120°F open/110°F close, SPST, 1/4 in quick-disconnect, 60T electrical rating

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: L120

Technical Specifications

• Brand: Supco
• MPN: L120
• Manufacturer: White-Rodgers
• Category: Limit Switches
• Model: L120
• Voltage: 240 V
• Contact Configuration: SPST (single pole single throw)
• Switch Action: Open on rise (auto-reset)
• Differential: 10 °F
• Open Temperature: 120 °F
• Close Temperature: 110 °F
• Disc Diameter: 3/4 in (19 mm)
• Terminals: 1/4 in quick-disconnect
• Construction: Welded construction for current-carrying integrity
• Electrical Rating: 60T
• Inductive Rating: 14 A at 120 VAC; 10 A at 240 VAC (inductive)
• Resistive Rating: 25 A (resistive)
• Pilot Duty: 125 VA
• Agency Approvals: UL, CSA
• Mount/Size: 3/4 in (19 mm) bimetal disc
• UPC: 786710001857
• GTIN / EAN: 0786710001857
• Replacement MPNs: K34-855, 626444
