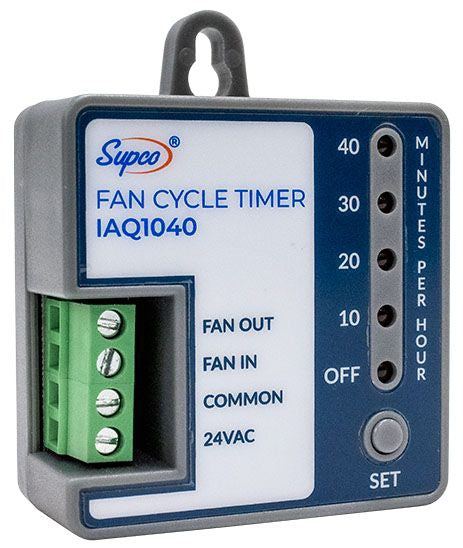

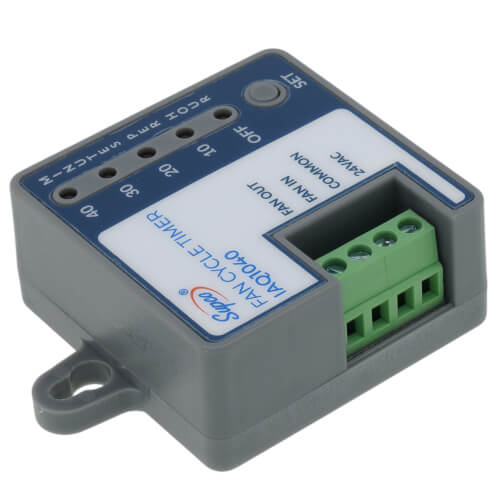

Supco IAQ1040 Fan Cycle Timer AC Operated 2.2 x 2.2 x 1

Product Description

The Supco IAQ1040 is a fan cycle timer designed for HVAC systems. It operates on AC power with a coil voltage range of eighteen to thirty volts. The timer features a current rating of five amps and an adjustable timing range of ten, twenty, thirty, or forty minutes per hour. This product helps optimize indoor air circulation when heating or cooling is not required.

• Operates fan or blower with selected run times
• Delay function prevents moisture buildup
• LED indicators for fan status

Product Highlights

The IAQ1040 monitor's fan operation through low voltage thermostat connections. It maximizes indoor air quality by regulating the fan activity based on the thermostat's signals.

Product Information

Standard Information

• Part Number: IAQ1040
• Manufacturer: Supco

Technical Specifications

• Coil Voltage: 18 to 30 Volt AC
• Current Rating: 5 Amp AC
• Size: 2.2 inches Length x 2.2 inches Width x 1 inch Depth
• Timing Mode: On/Off
• Timing Range: 10/20/30/40 minutes per hour
