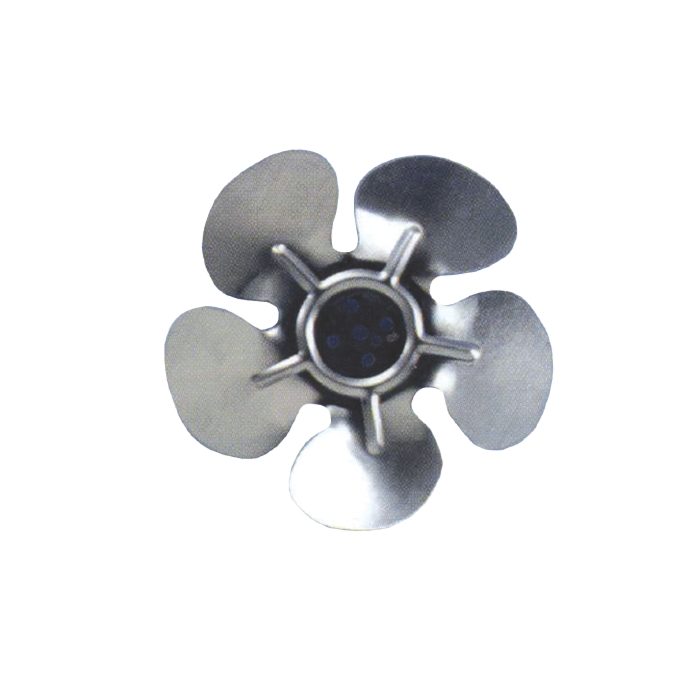

Supco fb106 Condenser Fan Blade 8 in 5 Blade Cw Aluminum

Product Description

The SUPCO fb106 is an aluminum condenser fan blade designed for use in air conditioning and refrigeration systems. With an 8-inch blade diameter and a 1/4-inch bore, this five-blade assembly moves air across the condenser coil to reject heat from the refrigerant circuit. Clockwise rotation is fixed, so correct orientation during installation is critical. The aluminum construction keeps weight low while resisting corrosion in outdoor condenser environments. HVAC technicians and refrigeration service pros install this blade as a direct replacement when a damaged or unbalanced fan blade is causing vibration, noise, or reduced airflow across the condenser.

This fan blade is suited for residential and light commercial condenser units where an 8-inch diameter, five-blade, clockwise-rotation replacement is required. Typical applications include rooftop condenser sections, split-system outdoor units, and refrigeration condensing units that use a 1/4-inch shaft motor. Always verify shaft diameter, blade diameter, rotation direction, and blade count against the unit being serviced before ordering.

Key Features

• 8-inch blade diameter for condenser airflow applications
• Five-blade design for balanced airflow and smooth operation
• Clockwise rotation — confirm unit requirement before installation
• 1/4-inch bore fits standard condenser fan motor shafts
• Aluminum construction for corrosion resistance and low rotating mass

Compatibility

Designed as an OEM-style replacement condenser fan blade for residential and light commercial air conditioning and refrigeration condensing units requiring an 8-inch diameter, five-blade, clockwise-rotation blade with a 1/4-inch bore.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Disconnect and lock out power to the condensing unit before removing the existing fan blade or accessing the motor shaft. Confirm shaft diameter, rotation direction, and blade pitch match the original equipment specifications before mounting. Secure the blade to the motor shaft with the set screw and verify the blade spins freely without contacting the fan shroud before restoring power.

Technical Specifications

• Blade Diameter: 8 inches
• Bore Size: 1/4 inch
• Number of Blades: 5
• Rotation: Clockwise
• Material: Aluminum

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: fb106
