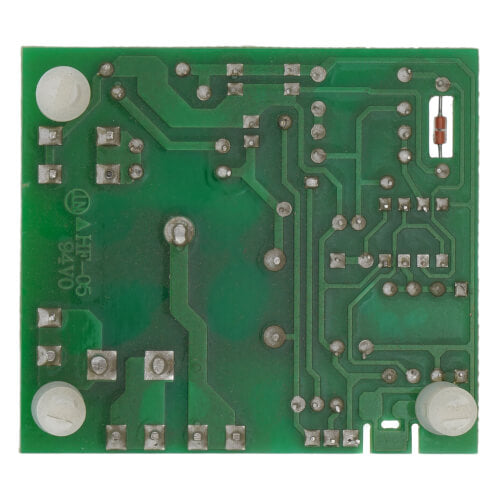

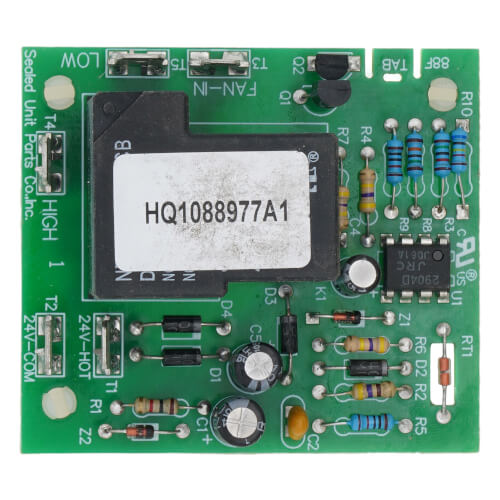

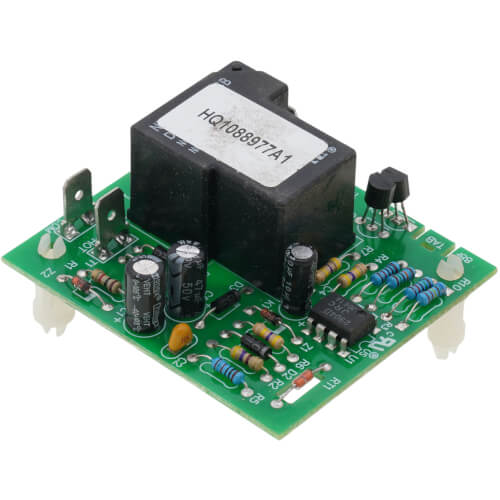

SUPCO F7799P Fan Control Board

Product Description

The SUPCO F7799P fan control board is essential for condenser units. This board adjusts the fan speed depending on the outdoor temperature, helping to keep the condensing system pressure within set limits. Designed for compatibility with various brands such as Tempstar, Heil, and Comfortmaker, it ensures improved performance of your HVAC system.

• Controls fan speed efficiently in condenser units.
• Maintains optimal condensing system pressure.
• Compatible with multiple brand systems.

Product Highlights

This control board operates on twenty-four VAC or DC, making it versatile for different setups.

Product Information

Standard Information

• Brand: SUPCO
• MPN: F7799P

Technical Specifications

• Size: 2.4 inches x 2.1 inches x 1.55 inches
• Input Voltage: 24 VAC or DC ± 10%
• Operating Temperature Range: -40°C to 75°C
• Maximum Humidity: 95% condensing
• Frequency: 50/60 Hz
• Output Current (Low Speed): 20A @ 240VAC
• Output Current (High Speed): 10A @ 240VAC
• Temperature Set Point with Tab: 80°F ± 6% + 4°F ± 1% differential
• Temperature Set Point without Tab: 88°F ± 6% + 4.4°F ± 1% differential
• Delay on Make: 1 to 2 seconds
• Packaging: Single Packed
