Product Description

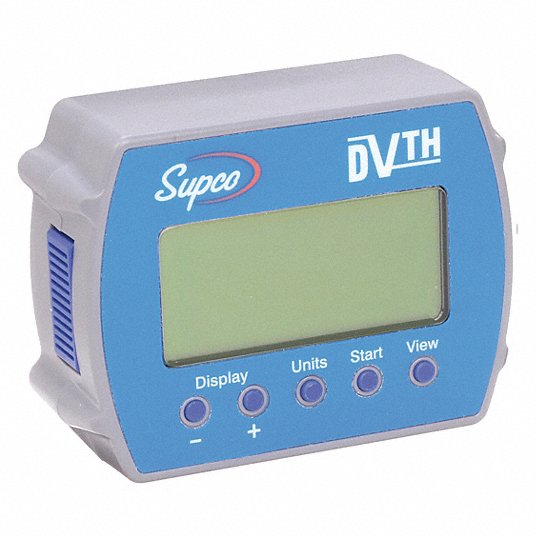

The SUPCO DVTH Temp/Humidity Logger is a data logging device designed for monitoring environmental conditions. It measures relative humidity from 0 to 90 percent with an accuracy of +/-2 percent, and features an internal sensor. This logger is suitable for applications such as refrigerant/freezer units, commercial refrigeration, wine storage, medical storage, laboratories, greenhouses, museums, and florists. It includes PC software and a USB cable for data analysis and export.

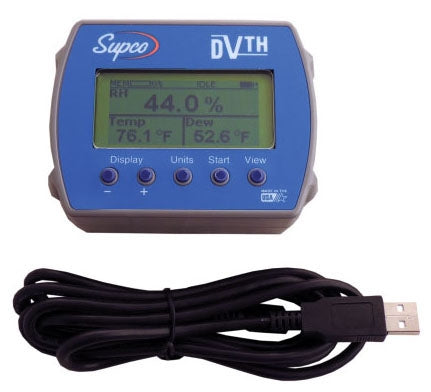

- Displays real-time temperature, humidity, and dew point, along with logging summary, sample rate, and memory status.

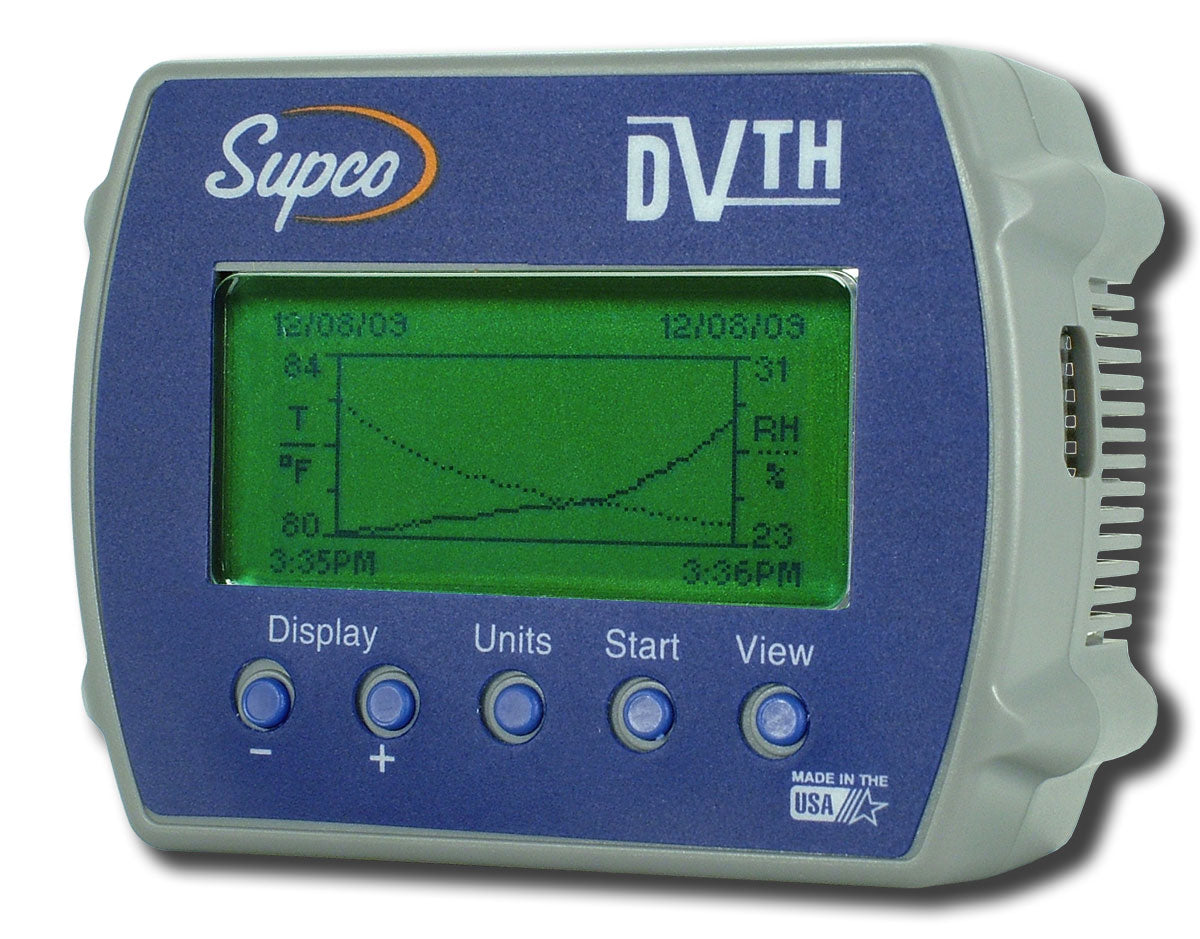

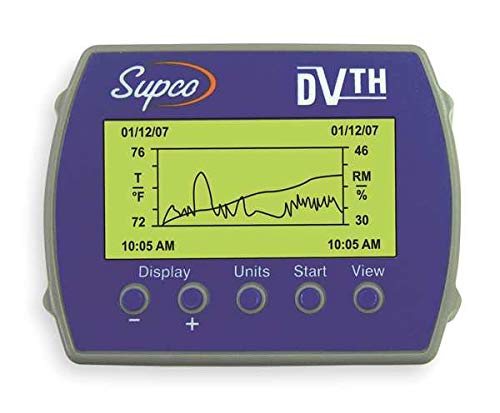

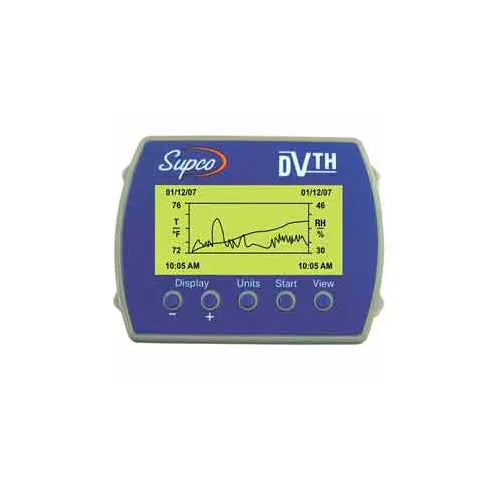

- Features a graph display to show measurement trends with a scrolling function.
- Data is exportable to text or Excel files for further analysis.
Product Highlights
The SUPCO DVTH is an internal sensor temperature and humidity logger, ideal for environmental monitoring in various commercial and medical settings, including refrigerators, laboratories, and museums.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: DVTH
-
Country of Origin: China
Technical Specifications
-
Humidity Accuracy: +/-2%
-
Battery Size: AA
-
Humidity Range: 0 to 90% (Non-condensing)
-
Sensor Type: Internal
-
Humidity Resolution: 0.01% RH
-
Temperature Resolution: 0.01°F or 0.01°C
-
Power Source: 3 AA Alkaline or Lithium Batteries
-
Temperature Accuracy: ±1°F (0.5°C)
-
Storage Temperature Range: -5°F to 160°F (-20°C to 70°C)
-
Operating Temperature Range: 15°F to 150°F (-10°C to 65°C)
-
Time Accuracy: ±100ppm at 75°F
-
Battery Life: 1 year (continuous use), 2 years (average use)
-
Sample Capacity: 43,344 points (temperature only), 21,672 points (temperature, humidity, dew point)
-
Programmable Sampling Interval: 1 second to 18 hours (in 1-second increments)
-
Alarms: Visual over/under alarm for temperature and humidity (dew point alarms not available)
-
Calibration: User single point offset calibration via software (password protected)
-
PC Interface: USB
-
Power Consumption: Max Recording: 2.7 mW, Standby: 1.4 mW, Power Down: 5.0 µW
-
Data Security: Unique factory ID, recording session counter, password protected calibration
-
OS Compatibility: Windows 98SE, ME, 2000, XP and above
-
Minimum System Requirements: 5MB disk space, 800x600 screen resolution, 1 free USB port
-
Recording Start Options: Button press, immediate after setup, user specified date/time
-
Recording Mode: Stop on memory full, or continuous with rollover
-
User ID Field: Up to 30 characters
-
Logger Channels: User selectable (disabling increases storage)
-
Units: US and Metric
-
Parameters Measured: Relative Humidity, Temperature
-
Data Logger Type: Humidity; Temperature
-
Maximum Dew Point Measured: 150°F
-
Minimum Dew Point Measured: 15°F
-
Number of Probes Included: 0
-
Resistance Properties: Impact Resistant
-
Number of Batteries Required: 3
-
Battery Voltage: 1.5V
-
Battery Chemistry: Alkaline
