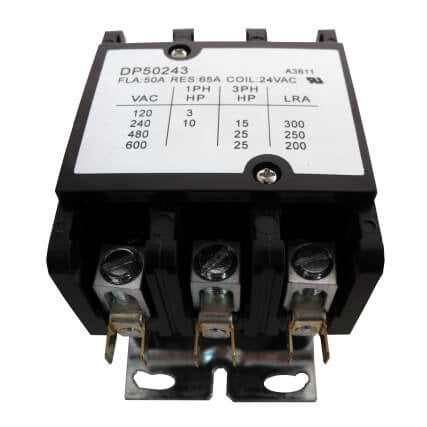

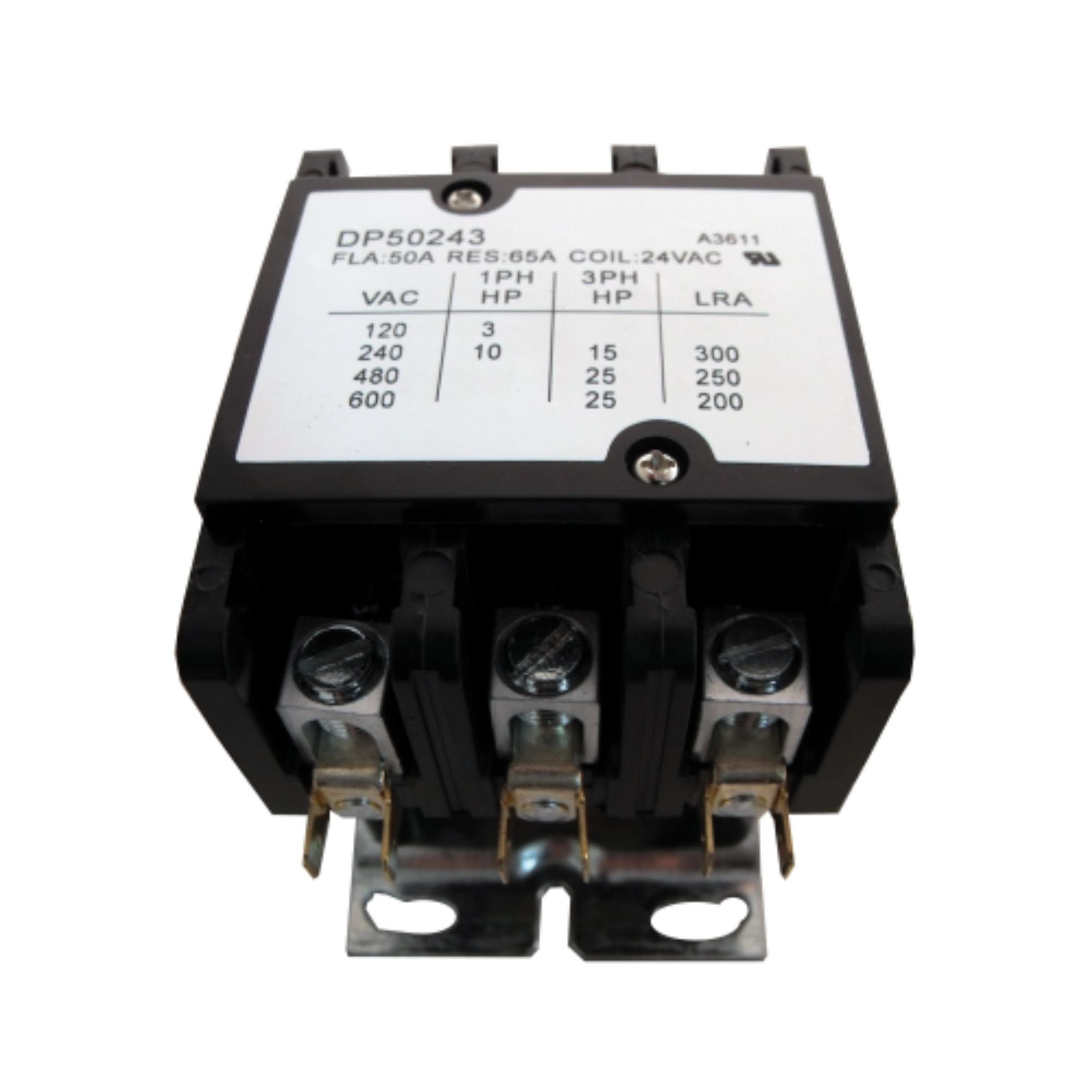

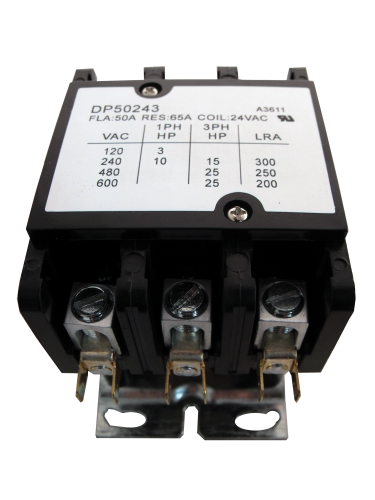

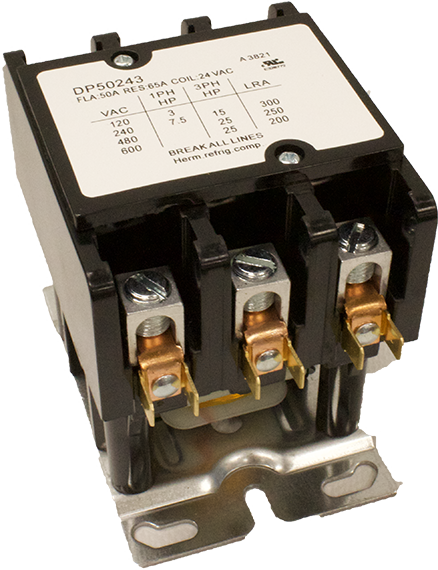

Supco DP50243 Contactor 50A 24V 3 Pole (1 Pack)

Product Description

Supco DP50243 is a definite-purpose 3-pole contactor with a 24 V coil and 50 A contact rating designed for HVAC and refrigeration control applications. It features box lug termination and silver cadmium oxide contacts and provides a resistive load rating of 65 A. The contactor has an operating temperature range of -40°F to 150°F and a compact, interchangeable mounting design compatible with common competitive contactors.

• 24 V coil voltage with 50 A contact rating in a 3-pole configuration for HVAC and refrigeration control.
• Box lug termination with 35 in-lbs termination torque and silver cadmium oxide contact material.
• Resistive load amperage 65 A; operating temperature -40°F to 150°F; compact interchangeable mounting for replacement applications.

Product Highlights

Definite-purpose HVAC/R contactor; 3-pole, 50 A contact rating, 24 V coil, box lug termination.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: DP50243
• Country of Origin: China
