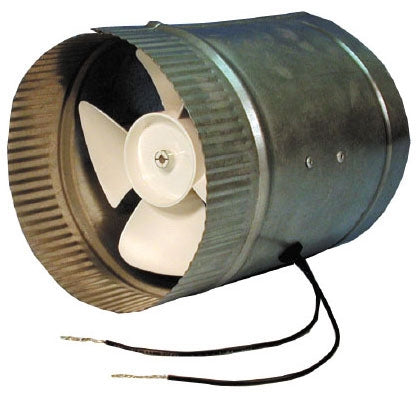

Supco DB6 Duct Booster Fan 115 VAC, 6x6 Inch

Product Description

Supco DB6 is a high-efficiency duct booster fan designed to enhance the airflow in HVAC systems. With its 6x6 inch duct size compatibility and 115 VAC operation, it is suitable for both heating and cooling equipment in areas where airflow is low. This unit supports an air flow rate of 250 CFM and operates quietly at 2.2 sones. Its compact design allows for easy installation in various duct shapes including round, square, or rectangular.

• Improves HVAC system efficiency and airflow.
• Quiet operation at 2.2 sones.
• Included mounting kit for easy installation.

Product Highlights

This booster fan is known for its easy installation and economical operation, particularly useful in forced air systems. It operates at a speed of 1950 RPM with a power rating of 30 watts, efficiently circulating air within the system.

Product Information

Standard Information

• Voltage: 115 Volt AC 60 Hz
• Current: 0.35 Amp
• Power: 30 Watt
• Speed: 1950 RPM
• Air Flow: 250 CFM

Technical Specifications

• Blade Diameter: 5.25 Inch
• Duct Size: 6 Inch x 6 Inch
• Sound Level: 2.2 Sones
• Temperature Rating: 50 to 140 Deg F
• Approvals: ANSI/UL 507, ETL (Canada and US)
