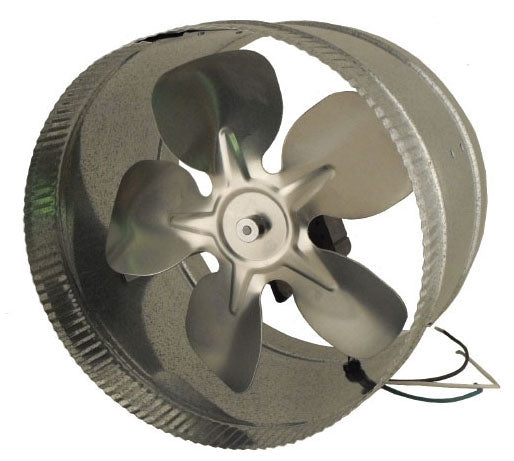

Supco DB12 Duct Booster Fan 115 VAC Replacement DB12

Product Description

Enhance airflow in heating and cooling systems with the Supco DB12 Duct Booster Fan. Designed for both commercial and residential use, this booster fan increases air circulation in low airflow areas, improving overall system efficiency.

• Optimizes airflow with a powerful 1300 RPM motor.
• Integrates seamlessly into existing ductwork with a 9 inch by 12 inch fit.
• UL and ETL certified, ensuring reliable performance and safety standards.

Product Highlights

With a 10 inch blade diameter and operating at 115 VAC and 1.5 amps, this duct booster can effectively move air at 800 CFM, making it an excellent choice for enhancing air distribution in your HVAC systems.

Product Information

Standard Information

• Brand: Supco
• Model/MPN: DB12

Technical Specifications

• Blade Diameter: 10 inches
• Voltage Rating: 115 Volt AC 60 Hertz
• Current Rating: 1.5 Amp
• Power Rating: 120 Watt
• Air Flow Rate: 800 CFF
• Sound Level: 3 Sones
• Speed Rating: 1300 RPM
• Temperature Range: 50 to 140 degrees Fahrenheit
