Product Description

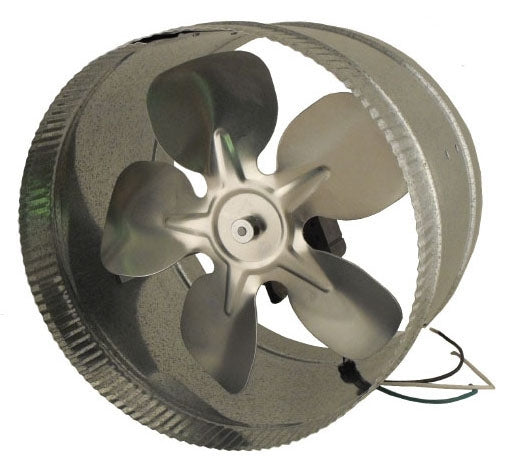

The Supco DB10 is a robust duct booster fan designed to enhance air flow in HVAC systems. Perfect for both heating and cooling applications, this fan handles air flow up to 650 cubic feet per minute (CFM) with a minimal noise output of just three Sones.
- Boosts air flow in low air flow areas
- Maintains a consistent 115 VAC at 60 Hz
- Consumes 120 Watts with a current rating of 1.5 Amps
Product Highlights
Equipped with an eight inch blade that operates at 1300 RPM, ensuring efficient air distribution. Installation is straightforward thanks to the included mounting kit and template.
Product Information
Standard Information
-
Brand: Supco
-
MPN: DB10
-
UPC: 84089912557
-
UNSPSC: 40101604
Technical Specifications
-
Power: 120 Watt
-
Voltage: 115 Volt AC 60 Hertz
-
Current: 1.5 Amp
-
Speed: 1300 RPM
-
Air Flow Rate: 650 CFM
-
Duct Size: 8 Inch x 10 Inch
-
Temperature Rating: 50 to 140 Degrees Fahrenheit
-
Approval: ANSI/UL 507, ETL (Canada and US)
