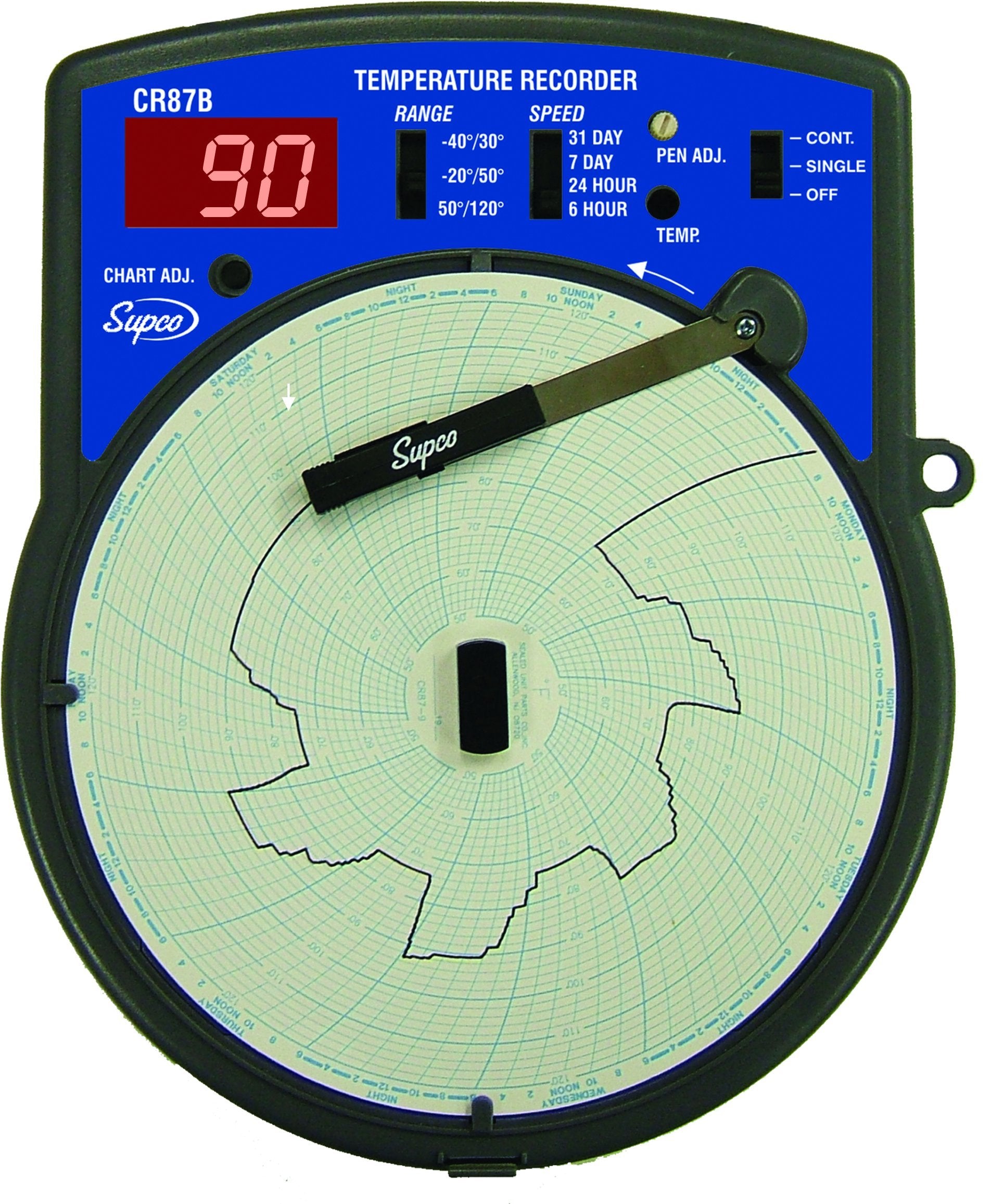

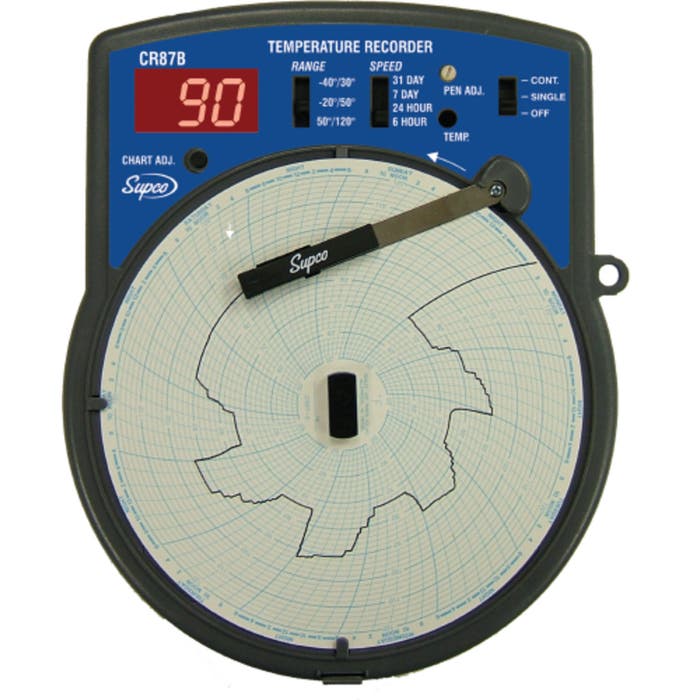

Supco CR87BC Celsius Temperature Circular Chart Recorder 120 VAC (6 inches Chart Diameter)

Product Description

The Supco CR87BC is a 6-inch Celsius temperature chart recorder that measures and records temperature on circular paper charts using an external probe. It supports selectable chart speeds (6 hours, 24 hours, 7 days, 31 days), single or continuous chart rotation, selectable Celsius ranges (-40°C to 50°C), and a 3-digit LED display. Primary power is 120 VAC (50/60 Hz) with 8 AA battery backup and a 15 ft stainless steel submersible probe.

• Selectable chart speeds (6 hr, 24 hr, 7 day, 31 day) with single or continuous rotation and +/-1% chart speed accuracy
• 15 ft sensor wire with 4" stainless steel submersible probe; temperature accuracy +/-1°C and selectable Celsius ranges
• Powered by 120 VAC (50/60 Hz) with battery backup (8 AA, ~48 hours); includes 2 ink cartridge pens and 60 assorted 6" charts

Product Highlights

6" circular chart recorder with LED display, external submersible probe, and multiple chart speed options

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: CR87BC

Technical Specifications

• Brand: SUPCO
• MPN: CR87BC
• Product type: Celsius temperature chart recorder
• Chart diameter: 6 inches
• Chart speeds: 6 hours, 24 hours, 7 days, 31 days
• Chart rotation: Single turn or continuous
• Chart speed accuracy: +/- 1%
• Chart sheets included: 60 assorted 6-inch charts
• Display: 3-digit LED (0.5")
• Primary power: 120 VAC, 50/60 Hz
• Power options: 12 V operation with optional adapter; battery backup (8 AA alkaline)
• Battery backup: 8 AA alkaline batteries (not supplied)
• Battery life: Approximately 48 hours continuous use
• Recording pen: Ink type (2 cartridge pens included)
• Temperature scales (Celsius): -40°C to 0°C; -30°C to 10°C; 10°C to 50°C (selectable)
• Temperature accuracy: +/- 1°C
• Temperature sensor / Probe: 15 ft sensor wire with 4" stainless steel submersible probe (maximum immersion depth 3")
• Operating temperature range: 0°C to 60°C
• Maximum relative humidity: 96% maximum
• Remote sensor capability: Remote readings up to 100 ft with optional extension cable
• Case material: Polycarbonate
• Dimensions: 9.25 x 7.25 x 2.75 inches
• Weight: 4 lb 7 oz
• Mounting: Free-standing or wall mount (keyhole slots)
• Handle and stand: Fold-down carrying handle and snap-on support legs; fold-out support stand
• Optional enclosure: Optional NEMA type 4X weatherproof case (CSA type 4)
