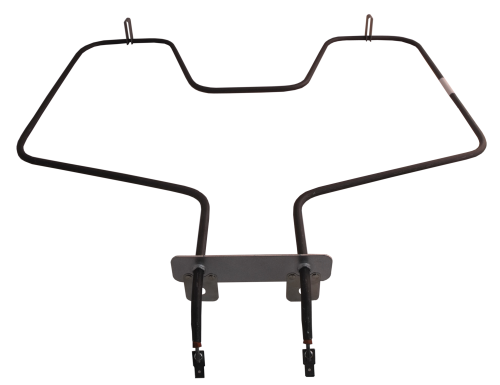

Supco ch44t10010 Bake Element 2585W 240V

Product Description

The SUPCO ch44t10010 is a direct replacement bake element designed for electric ovens. Rated at 2585 watts and 240 volts, it provides the bottom heat needed for baking cycles. The element mounts to the back wall of the oven cavity with screws and includes support tabs that rest on the oven floor to hold it in position. Terminal connections are 1/4 inch male quick connects, making electrical hookup straightforward during service calls. This part is manufactured to meet or exceed OEM fit and performance specifications, making it a reliable swap for the original component. HVAC and appliance technicians handle installation as part of routine oven element replacement service.

This bake element fits electric range and wall oven applications where the original WB44T10010 element has failed, burned out, or broken. The element measures 17 inches in length and 17.75 inches in width, with a 2.5 inch insert depth. Its dimensions and mounting configuration are designed to drop in without modification, reducing diagnostic and installation time. Typical installation scenarios include residential electric ranges and built-in wall ovens that use a rear-mounted bake element with floor-resting support tabs.

Key Features

• Rated 2585 watts at 240 volts for full baking output
• Mounts to rear oven wall with screws for secure attachment
• Support tabs rest on oven floor to stabilize the element
• 1/4 inch male quick connect terminals for fast wiring
• OEM-style fit and finish — no modification required
• Direct replacement for WB44T10010

Compatibility

Direct replacement for OEM part number WB44T10010. Designed as an OEM-style replacement bake element for compatible electric ranges and wall ovens originally equipped with the WB44T10010 element.

Installation Notes

Disconnect power to the appliance at the breaker before beginning any element replacement work. Remove any existing fasteners from the oven rear wall and disconnect the quick connect terminals from the old element before pulling it free. Seat the support tabs on the oven floor, align the mounting bracket, and secure with the original screws before reconnecting the terminals. Follow applicable local electrical codes when servicing 240-volt appliance circuits.

Technical Specifications

• Wattage: 2585 watts
• Voltage: 240 volts
• Length: 17 inches
• Width: 17.75 inches
• Insert Depth: 2.5 inches
• Terminal Type: 1/4 inch male quick connect

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: ch44t10010
