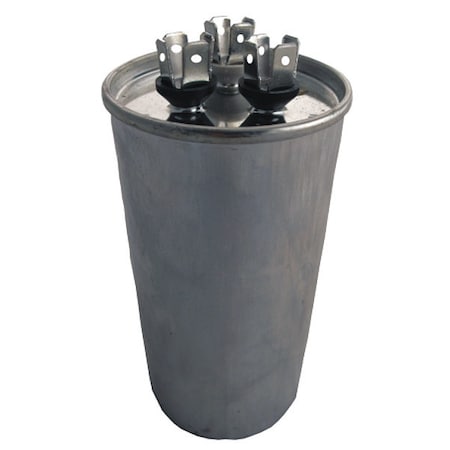

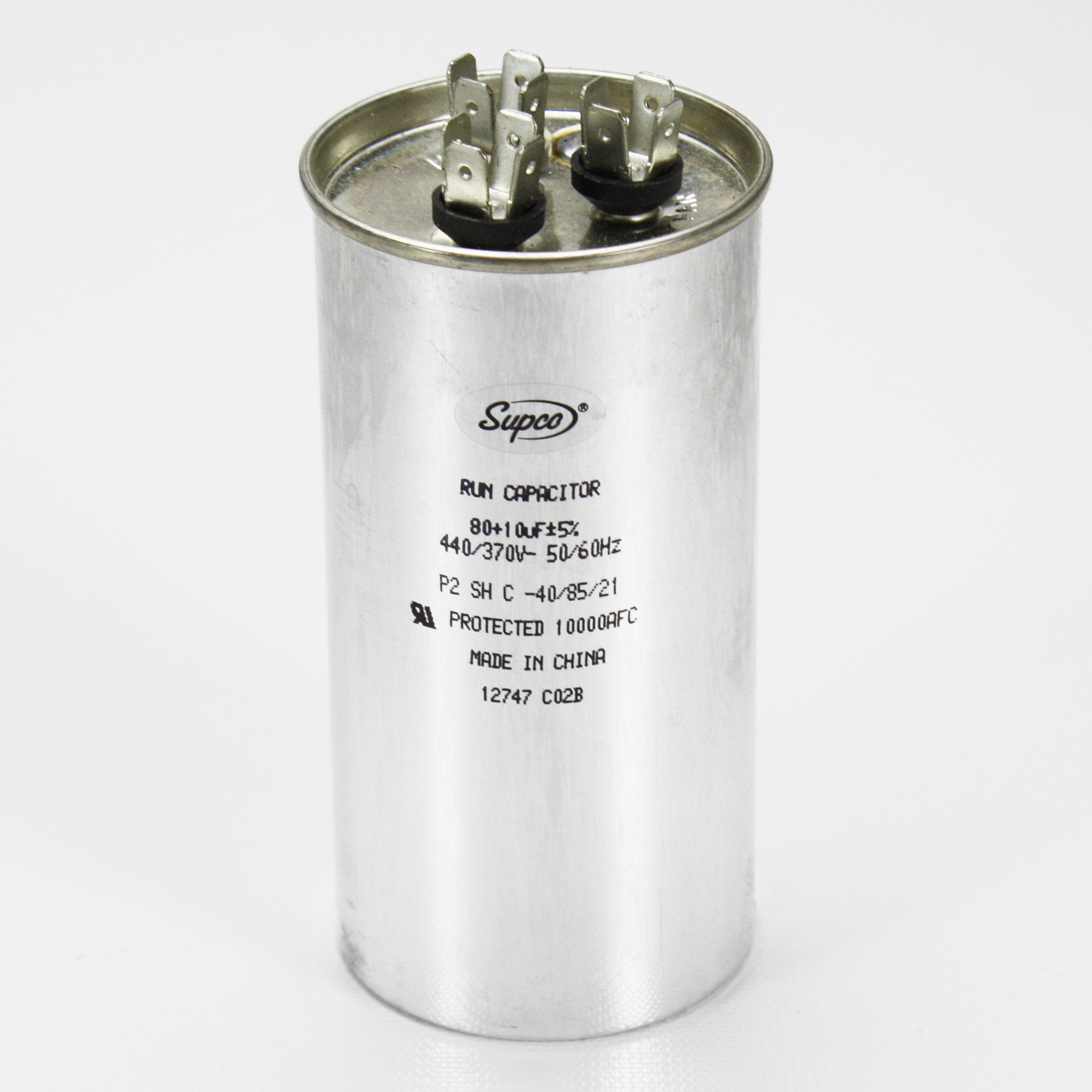

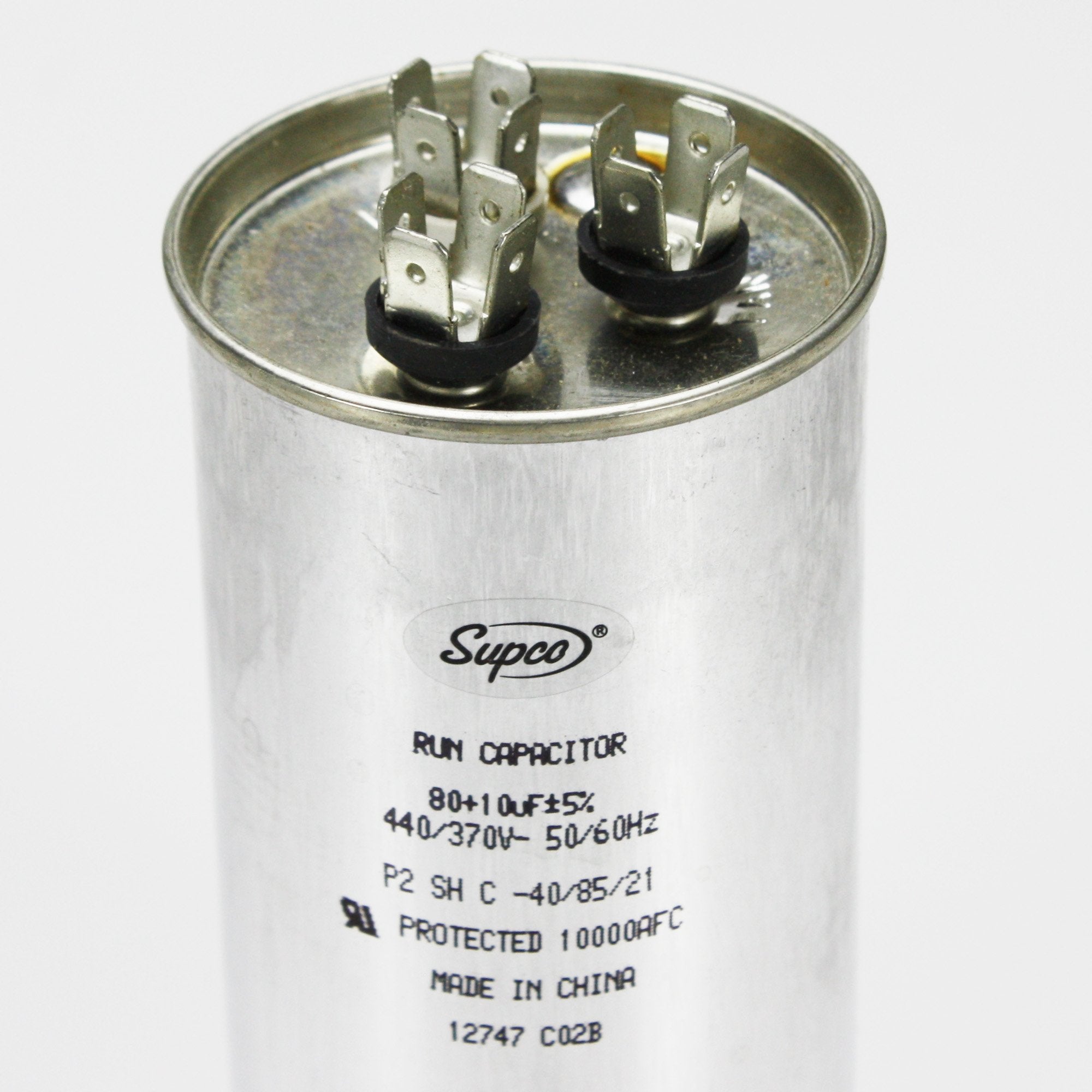

Supco CD80+10X440R Round Dual Run Capacitor 80+10 MFD 440 Volt

Product Description

The Supco CD80+10X440R is a 440V round dual run capacitor. It is manufactured with high-quality components and tested under high standards. It is suitable for condenser fan motors, furnace blower motors, refrigeration compressors, and air conditioning compressors. The capacitor features a drawn steel case construction and quad blade quick connect terminals.

• Operating Temperature: -40°F to 185°F
• Non-PCB Biodegradable Synthetic Oil
• Physical Interrupter for Safety

Product Highlights

This round dual run capacitor is made with quality components and is suitable for various applications.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: CD80+10X440R
• Country of Origin: China

Technical Specifications

• MPN: CD80+10X440R
• Brand: Supco
• Voltage: 440V
• Frequency: 50/60 Hz
• Capacitance: 80+10 MFD
• Application: Goodman Rheem Trane Amana Carrier
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Style: Round
• Product Dimensions (in): 2.49 OD x 5.12 H
• Tolerance (MFD): + / - 5%
• Agency: UL®, VDE®
• Box Dimensions (in): 2.49 W x 2.49 L x 5.71 H
• Dimensions: 2.50" x 5.125"
• Voltage Rating: 440 V
• Shape: Round
• Diameter: 2-1/2 in
• Additional Information: -40 to 185 deg F Temperature Rating, 6 um +/-5% Foil Thickness, +/-5% Standard Tolerance
