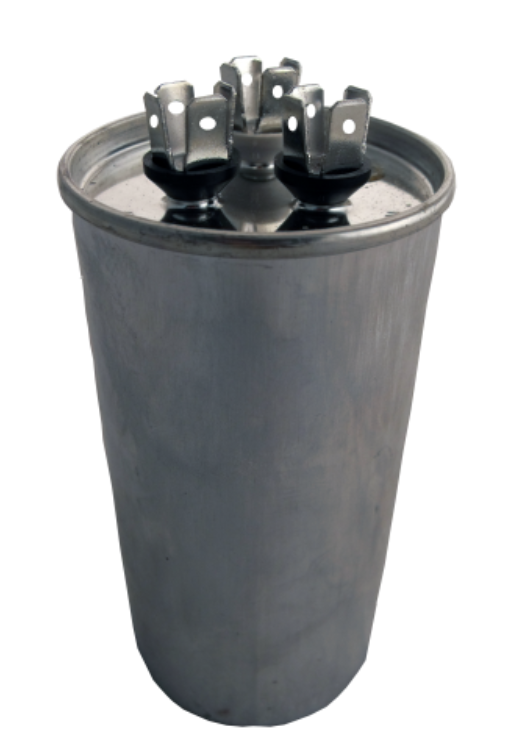

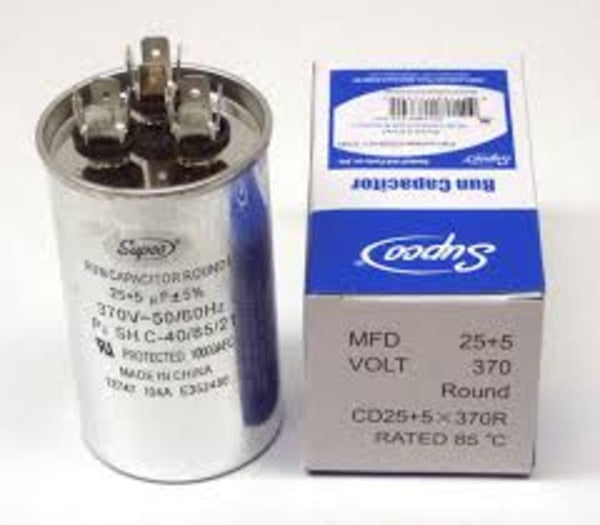

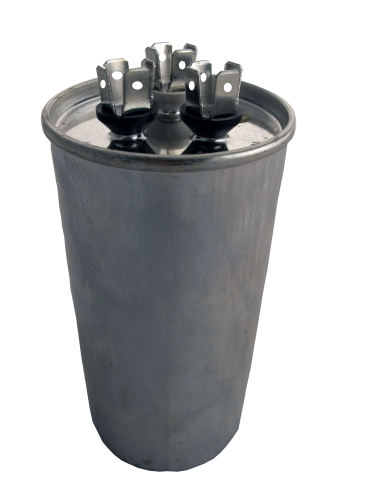

Supco CD25+5X370R Round Dual Run Capacitor 25+5 MFD

Product Description

The SUPCO CD25+5X370R is a 370V round dual run capacitor with 25+5 MFD capacitance. It is manufactured and tested under high standards. This capacitor features a drawn steel case construction, non-PCB biodegradable synthetic oil, and a physical interrupter for safety. It is suitable for condenser fan motors, furnace blower motors, refrigeration compressors, and air conditioning compressors.

• Drawn Steel Case Construction
• Non-PCB Biodegradable Synthetic Oil
• Physical Interrupter for Safety

Product Highlights

Round dual run capacitor with quad blade quick connect terminals and an operating temperature range of -40°F to 185°F.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: CD25+5X370R
• Country of Origin: China

Technical Specifications

• Product Type: Run Capacitor
• Brand: Supco
• Unit Height (in.): 3.35 in
• Voltage [Specifications]: 370VAC
• For Use With [Specifications]: Condenser Fan Motors; Furnace Blower Motors; Refrigeration Compressors; Air Conditioning Compressors
• Capacitor Voltage: 370VAC
• Style: Round
• Capacitor (MFD): 25+5
• Tolerance (MFD): + / - 5%
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Agency: UL®, VDE®
• Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
