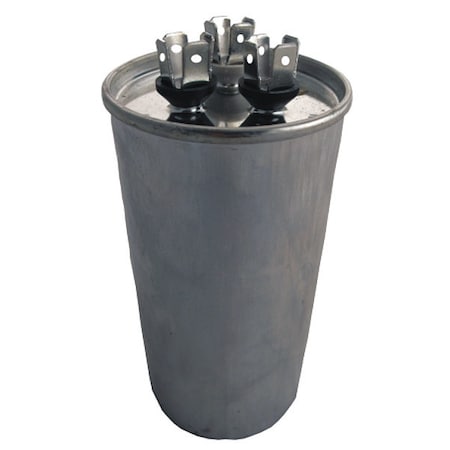

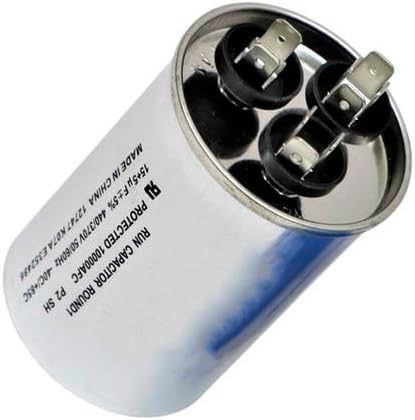

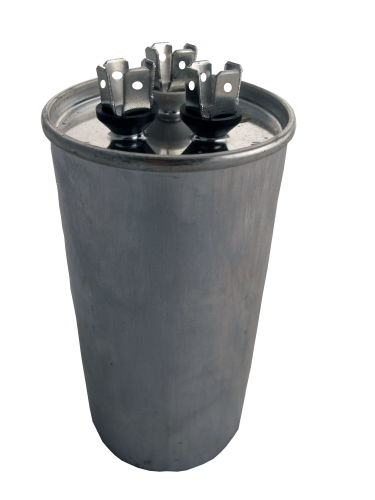

Supco CD15+5X440R Round Dual Run Capacitor 15+5 MFD 440VAC

Product Description

The SUPCO CD15+5X440R is a round dual run capacitor designed for various electronic devices. It has a capacitance of 15 + 5 MFD and is rated for 440VAC. It is suitable for condenser fan motors, furnace blower motors, refrigeration compressors, and air conditioning compressors. The capacitor features an operating temperature range of -40 to 185 degrees F.

• Operating Temperature: -40 to 185 degrees F
• Quad blade quick-connect terminals
• Drawn steel case construction

Product Highlights

This round dual run capacitor is made with high-quality components and manufactured under high standards. It features a physical interrupter for safety and non-PCB biodegradable synthetic oil.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: CD15+5X440R
• Country of Origin: China

Technical Specifications

• Voltage: 440VAC
• Operating Temperature: -40 to 185 °F (-40 to 85 °C)
• For Use With: Condenser Fan Motors; Furnace Blower Motors; Refrigeration Compressors; Air Conditioning Compressors
• Capacitance: 15 + 5 MFD (microfarads); tolerance: ±5%
• Dielectric: Non-PCB biodegradable synthetic oil
• Terminals: Quad blade quick-connect
• Safety feature: Physical interrupter
• Case: Drawn steel construction
• Certifications: UL, VDE
• Style: Round
• Tolerance (MFD): + / - 5%
• Applications: Condenser fan motors, Furnace blower motors, Refrigeration Compressors, Air conditioning compressors
• Capacitor (MFD): 15+5 MFD
• Voltage rating: 440/370 VAC
