Supco BPV14 Bullet Piercing Valve 1/4 Inch 12/Box

Product Description

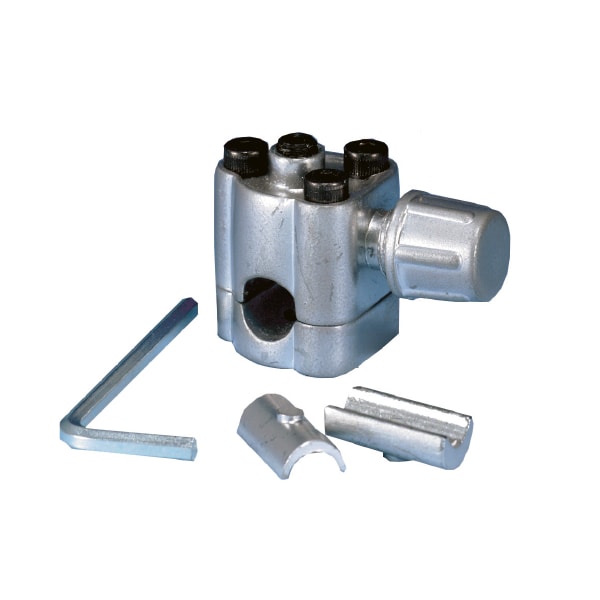

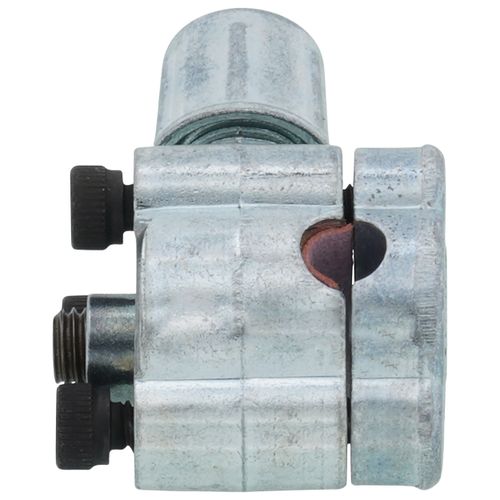

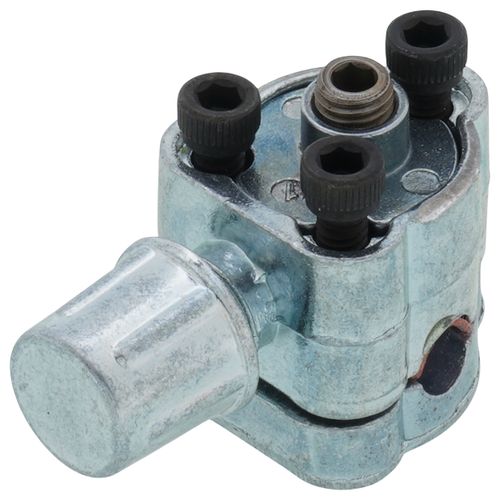

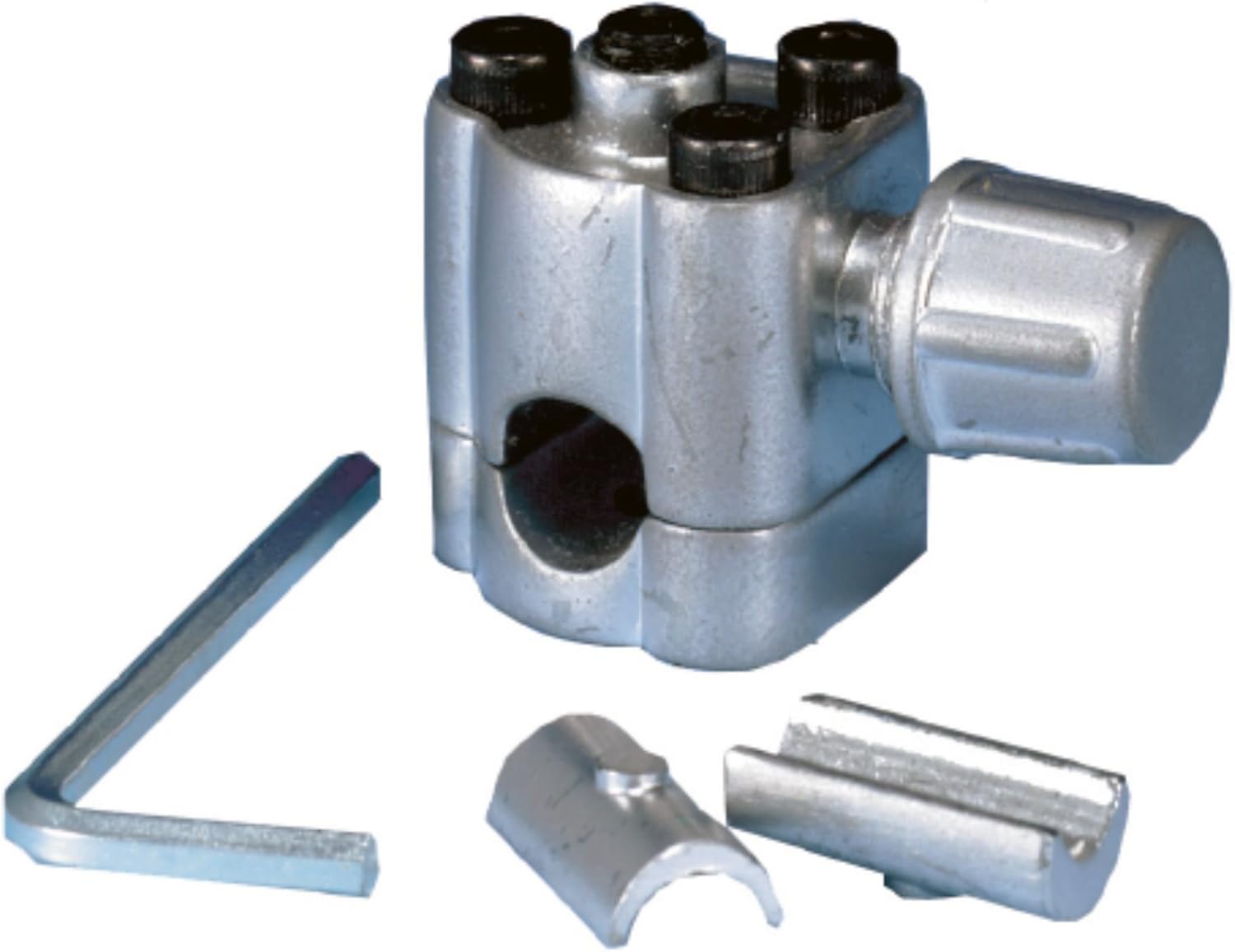

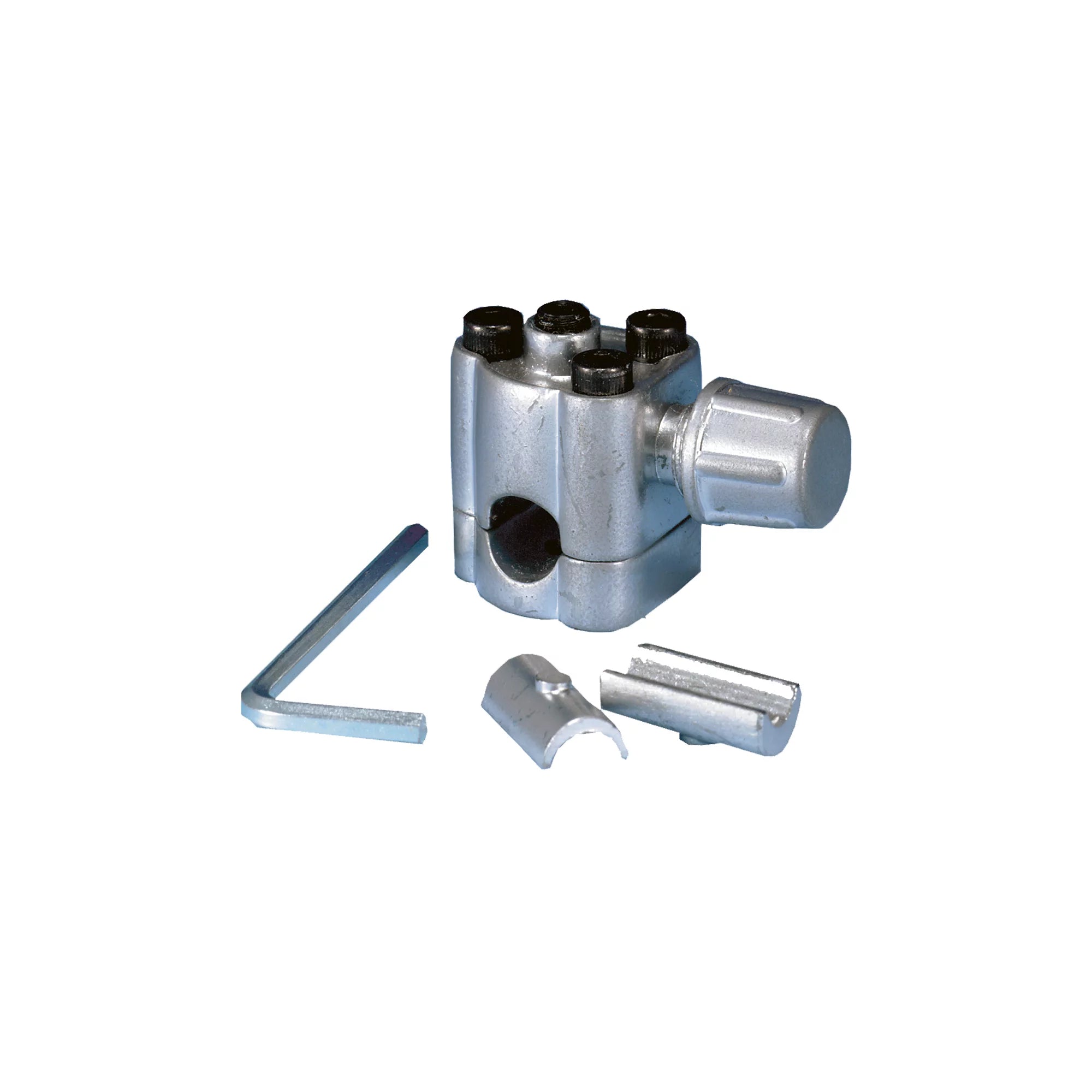

The SUPCO BPV14 Bullet Piercing Valve features a patented gasket application, creating a permanent, leakproof seal by compressing copper tubing by 0.020 inches. This design ensures durability against pressures up to 500 psi and temperatures up to 250 degrees F, suitable for the unit's lifespan. It can be installed on the high side as a permanent valve or on round suction lines and uneven tubing, preventing leaks. It is also safe for use on the low side of R410 systems.

• Hex Key Wrench Included - No Additional Tools Required
• Nonpositional Mounting - No Adapter Valve Required
• Patented Valve Gasket Application Provides 50 Times More Sealing Area Than Competitive "O" Ring Types

Product Highlights

Permanent, leakproof valve for copper tubing with patented gasket, includes hex key, and allows nonpositional mounting.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: BPV14
• Country of Origin: China

Technical Specifications

• Brand: Supco
• MPN: BPV14
• Category: Valves
• Material: Corrosion Resistant Metal
• Connection Size: 1/4 Inch
• Connection Type: Male Flare
• Size: 1/4 Inch
• Max Pressure: 500 psi
• Temperature Rating: 250 deg F
• Finish: Lacquered
• Series: BPV Series
• Includes: Hex key wrench
• Type: Bullet-Piercing Valve
