Product Description

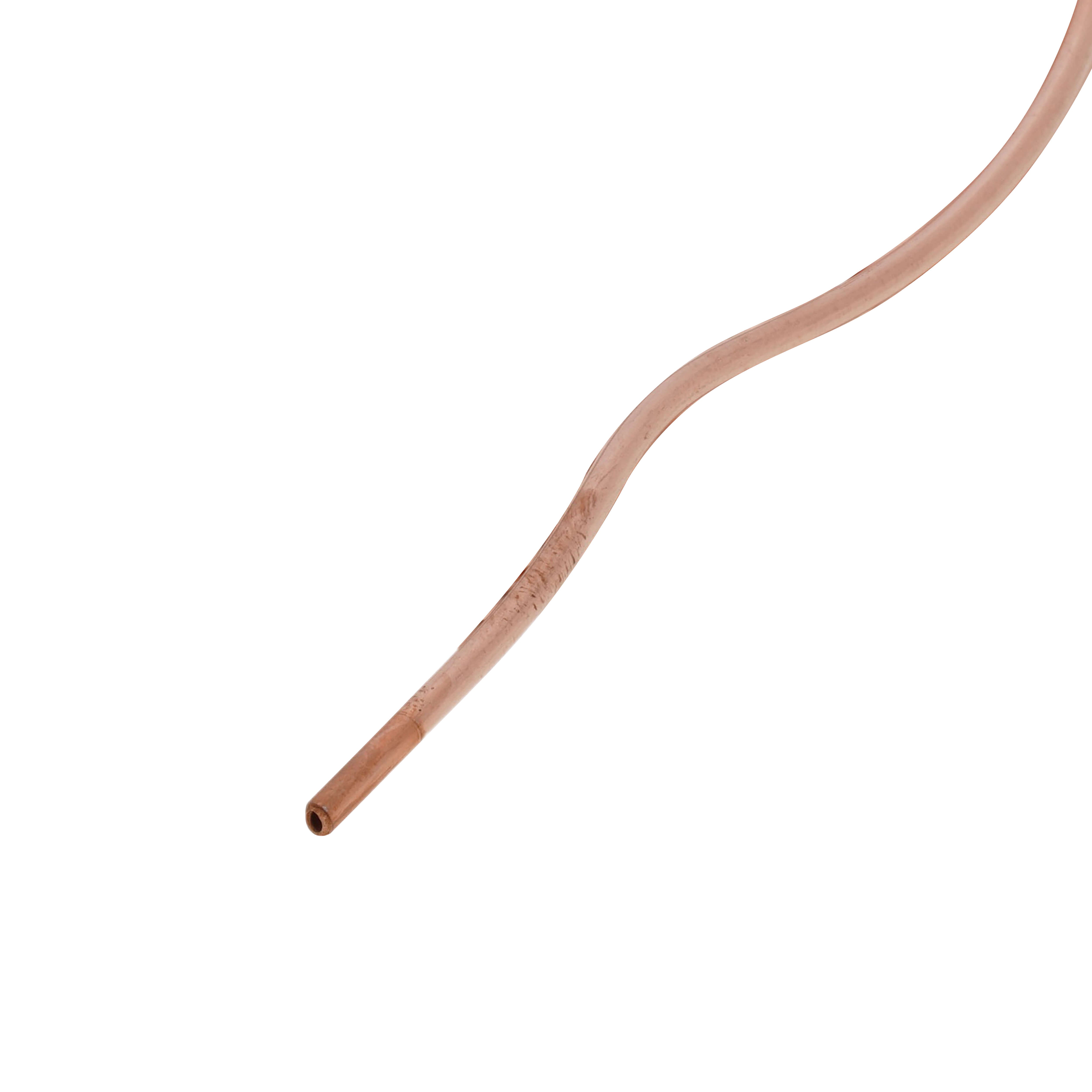

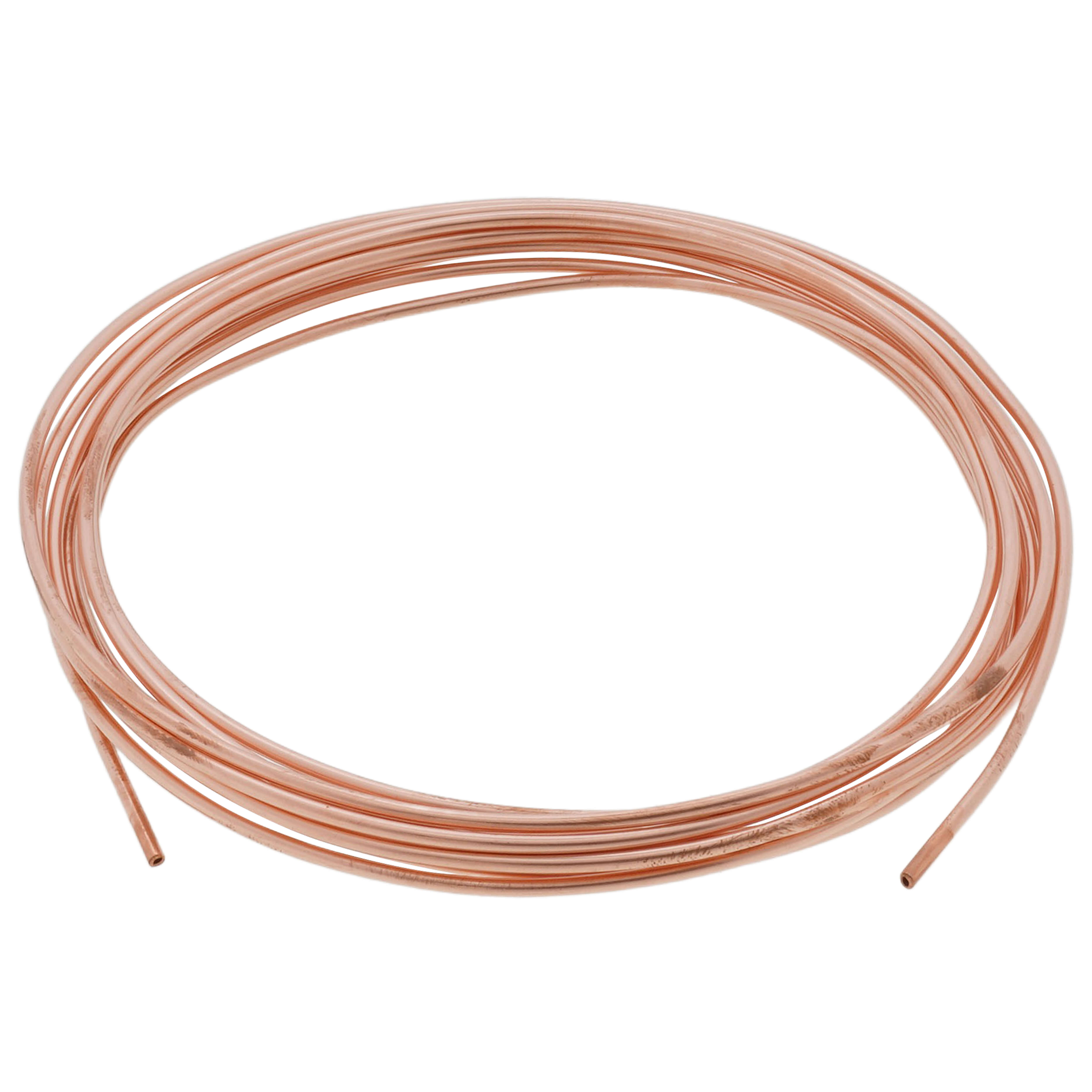

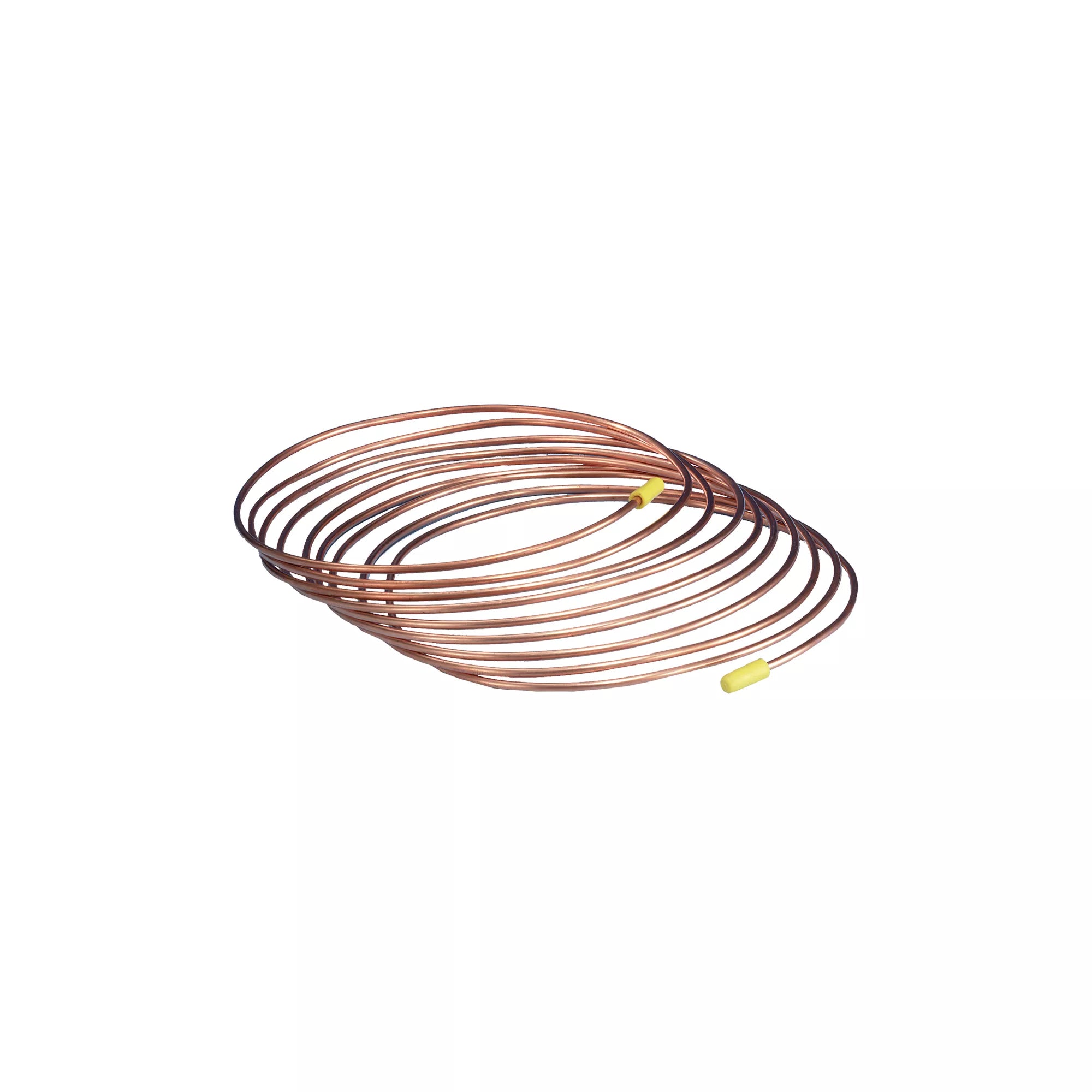

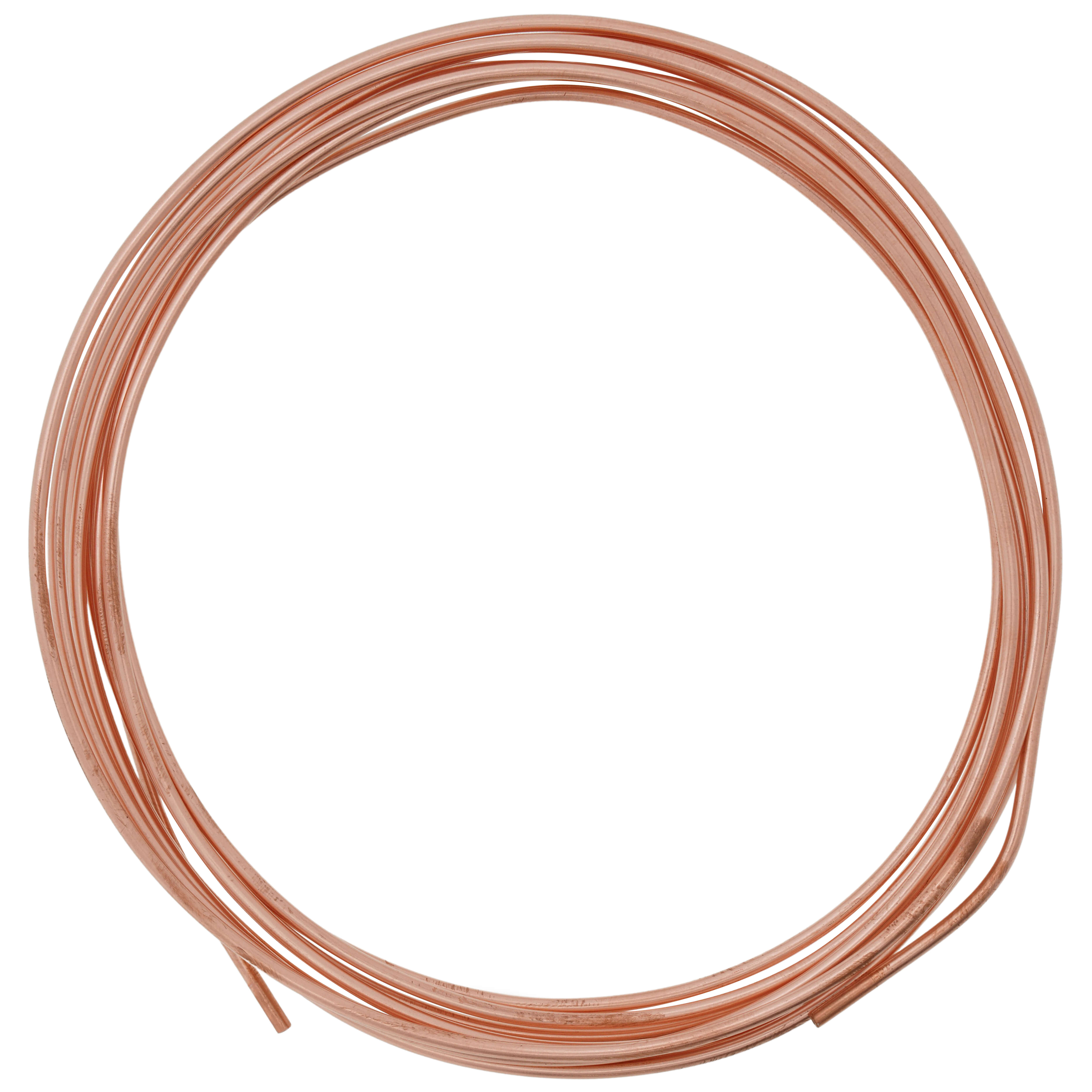

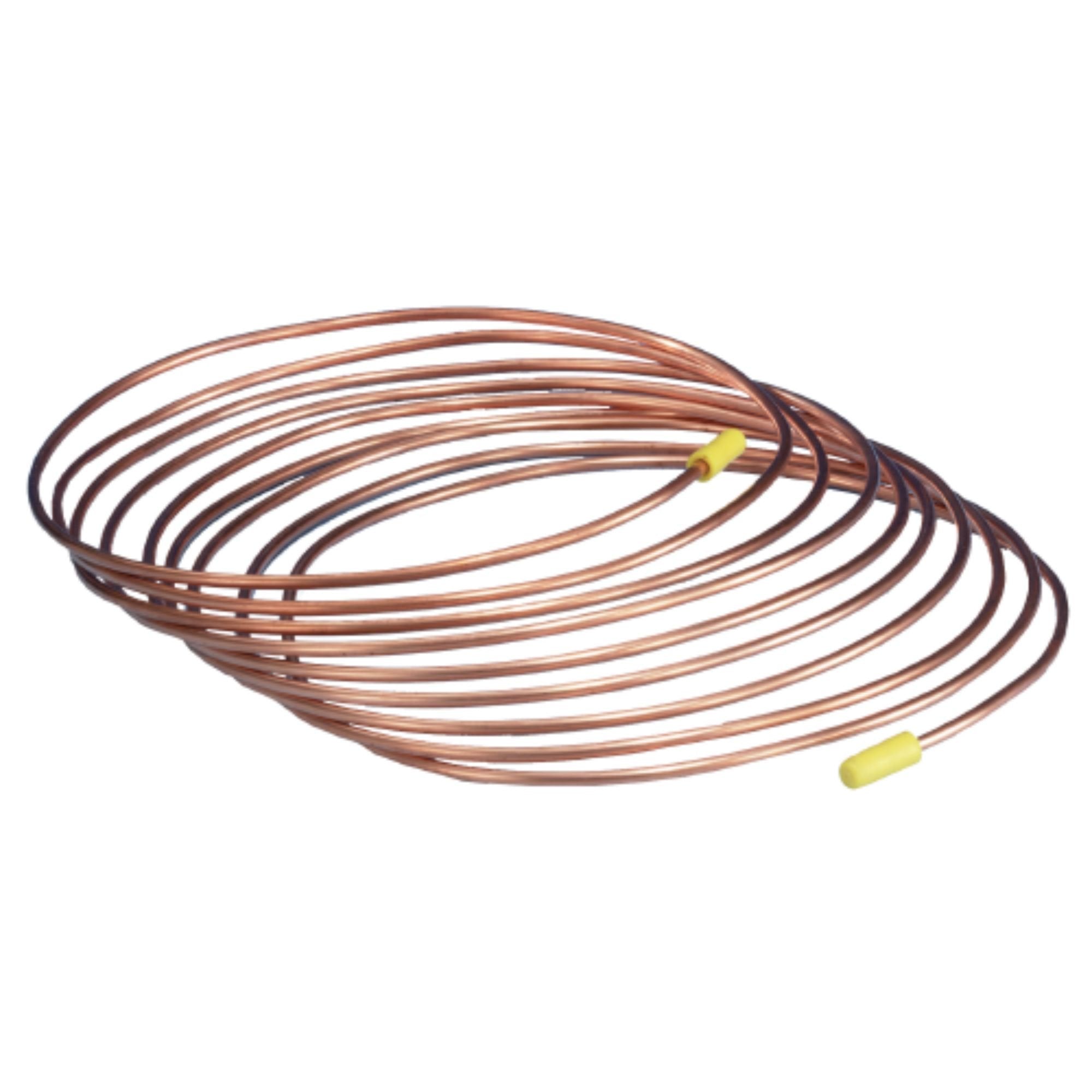

The SUPCO BC3 is a bullet restricto capillary tubing with a .093" outer diameter and a .052" inner diameter, with a length of 12". This soft copper capillary tubing is precision plug drawn with a internal diameter tolerance of +/- .001. It is suitable for domestic and commercial refrigerators or room air conditioners from 1/8 to 5 HP.
- Precision bore, plus or minus .001
- Material specification ASTM B360
- Fits any domestic and commercial refrigerator or room air conditioner from 1/8 to 5 HP
Product Highlights
The SUPCO BC3 capillary tubing can replace capillary tubes in domestic or commercial refrigerators or air conditioners.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: BC3
-
Country of Origin: China
Technical Specifications
-
EAN: 0687152010622
-
UOM: EA
-
UPC: 687152010622
-
Brand: Supco
-
Prop 65: No
-
Composition: Copper
-
Connection Type: Sweat or Braze
-
Inlet Connection Size: .052"
-
Outlet Connection Size: .052"
-
Maximum Working Pressure: Varies Based on Refrigerant Used
-
Item: Capillary Tubing
-
Size: 0.052 Inch Inner Diameter x 0.093 Inch Outer Diameter x 12 Foot Length
-
Used On Item: Domestic and Commercial Refrigerator, Freezer, 1/8 to 5 HP Air Conditioner
-
Material Specification: ASTM B360
-
Precision Bore Size: +/- 0.001 Inch
-
Outside Diameter: 0.093 Inch
-
Inside Diameter: 0.052 Inch
-
Application: Air Conditioner, Domestic and Commercial Refrigerator, Freezer
-
Product Type: HARDWARE_TUBING
-
Series: BC Series
-
Diameter: 0.052 in ID x 0.093 in OD
-
Material: Copper
-
Manufacturer Name: Supco
-
Suitable For Use With: 1/8 HP to 5 HP Refrigerator or Room Air Conditioner
-
Description: Capillary Tubing .052 Id X 12 Ft
-
Package Quantity: 1
-
I.D.: 0.052"
-
O.D.: 0.093"
-
Model: BC3
-
MPN: BC3
-
Model Number: BC3
-
Category: Business & Industrial
-
Coil Length: 12 ft
-
Vendor Name: Supco
-
URI Part Number: BC3
-
Vendor Part Number: BC3
-
Inside Diameter (In.): 0.052
-
Outside Diameter (In.): 0.093
