Product Description

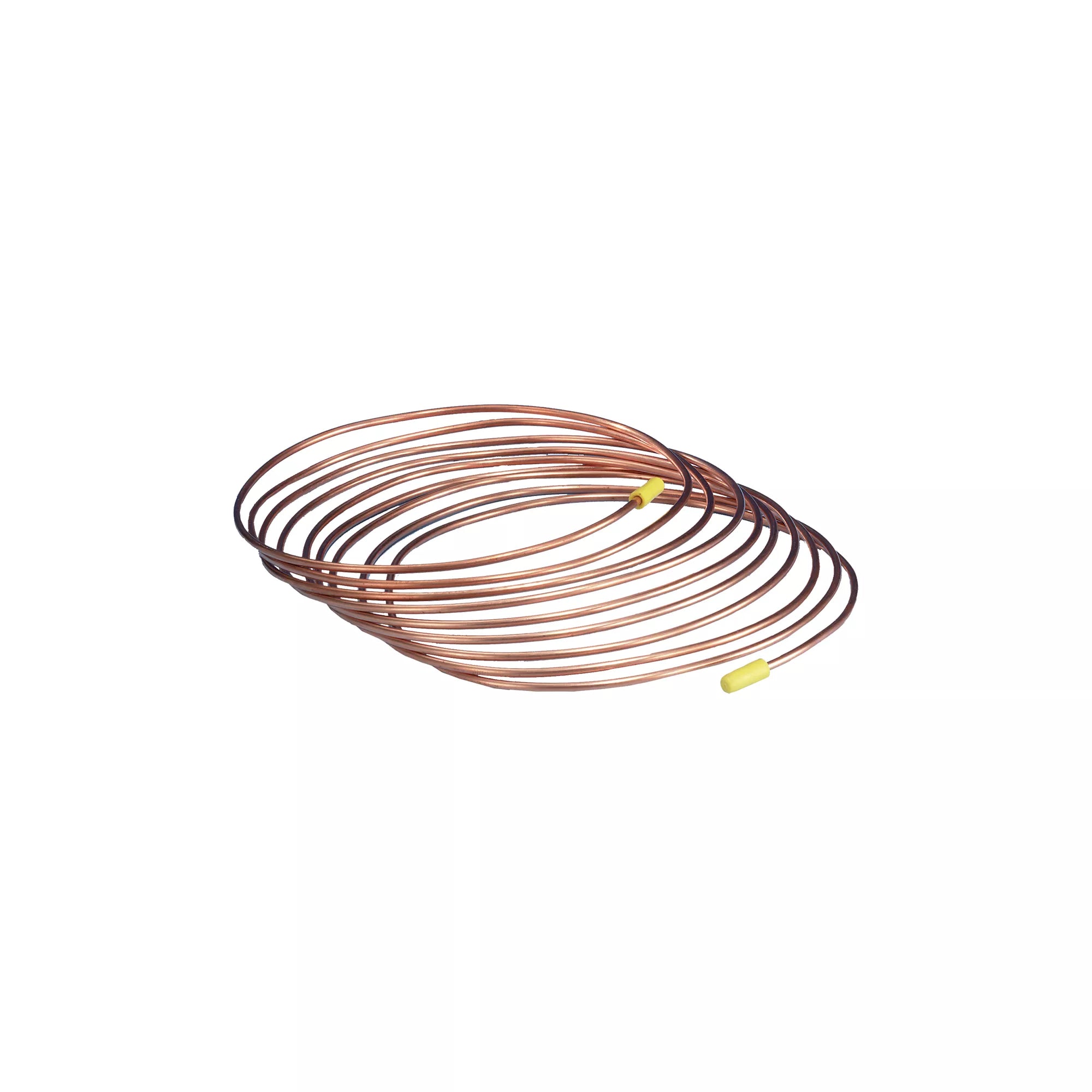

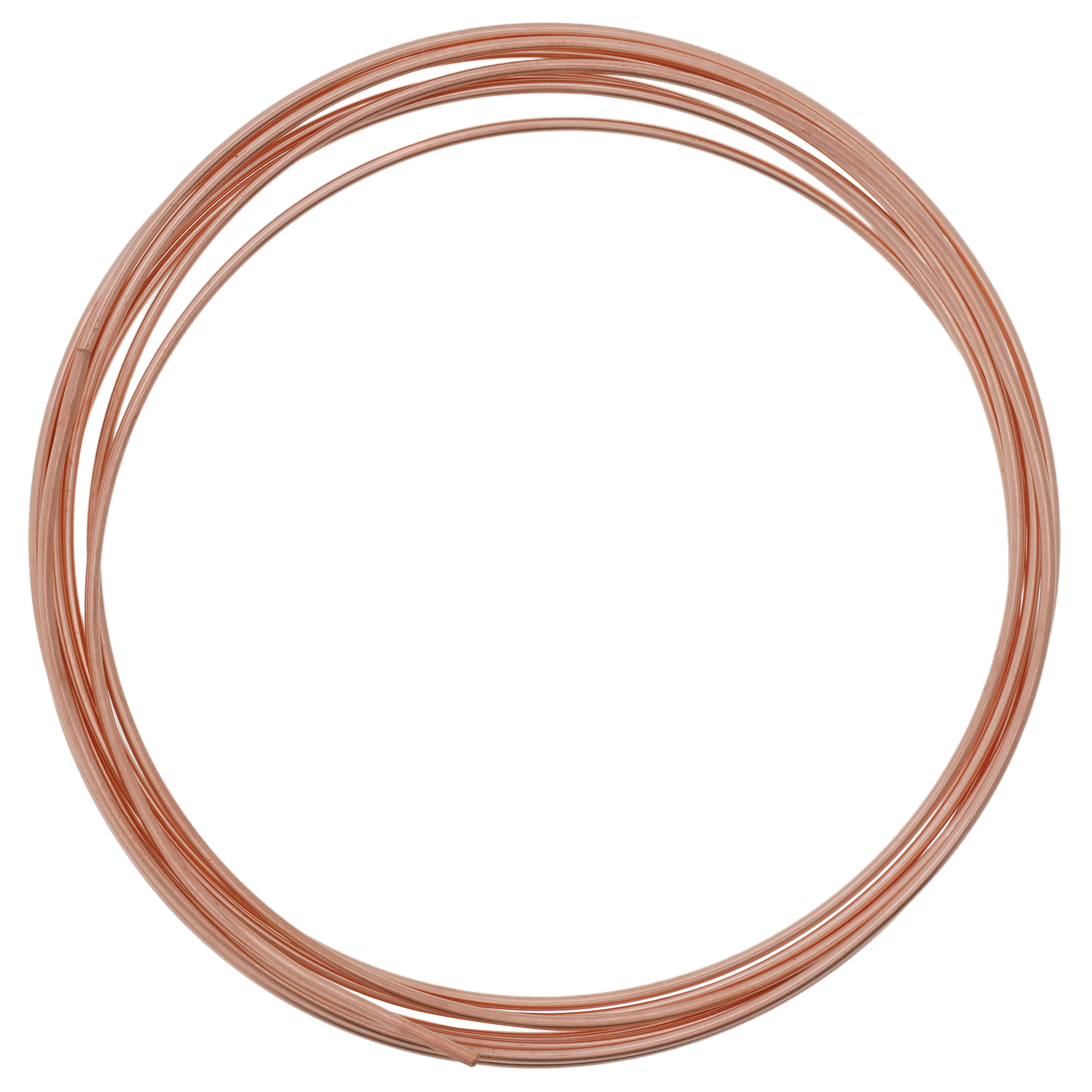

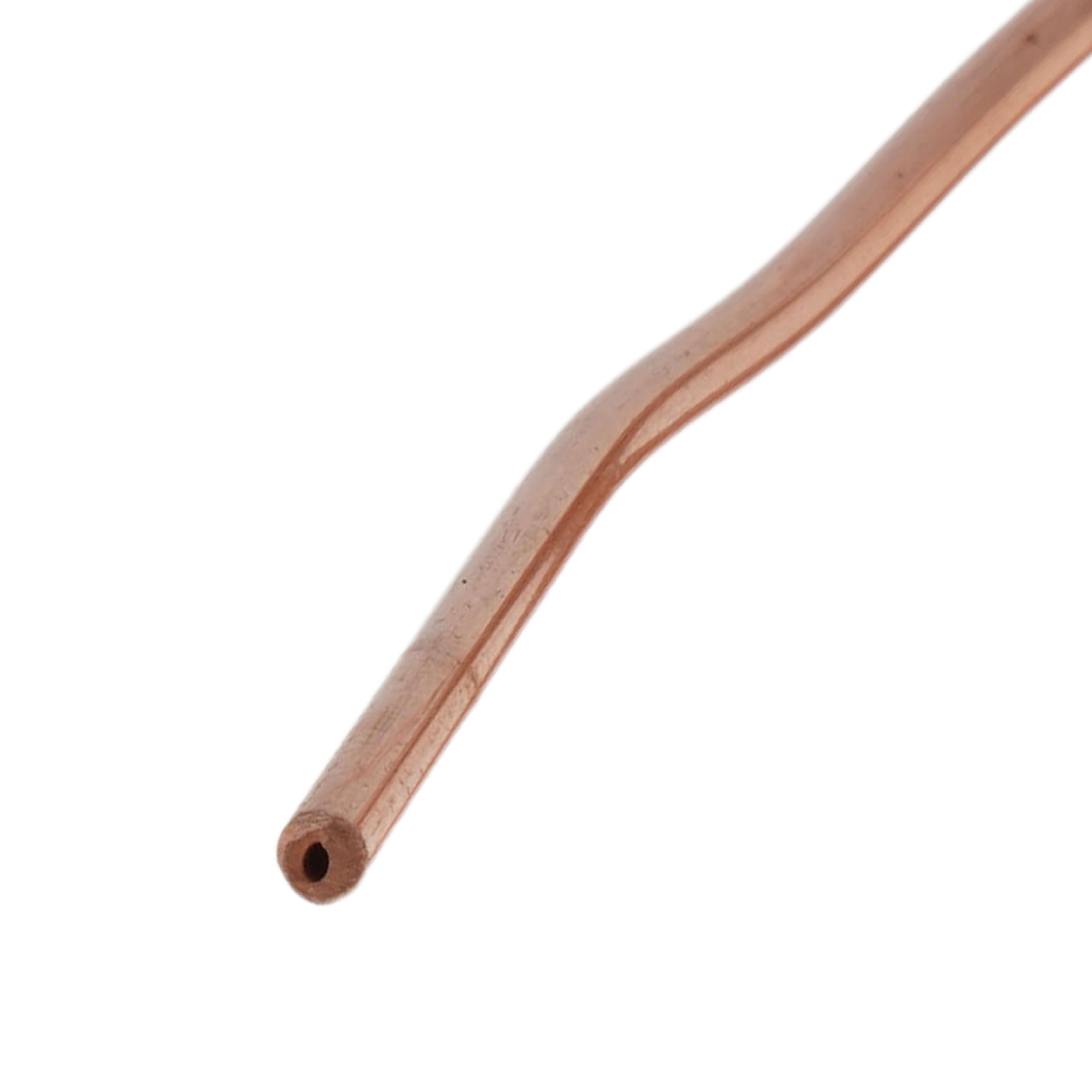

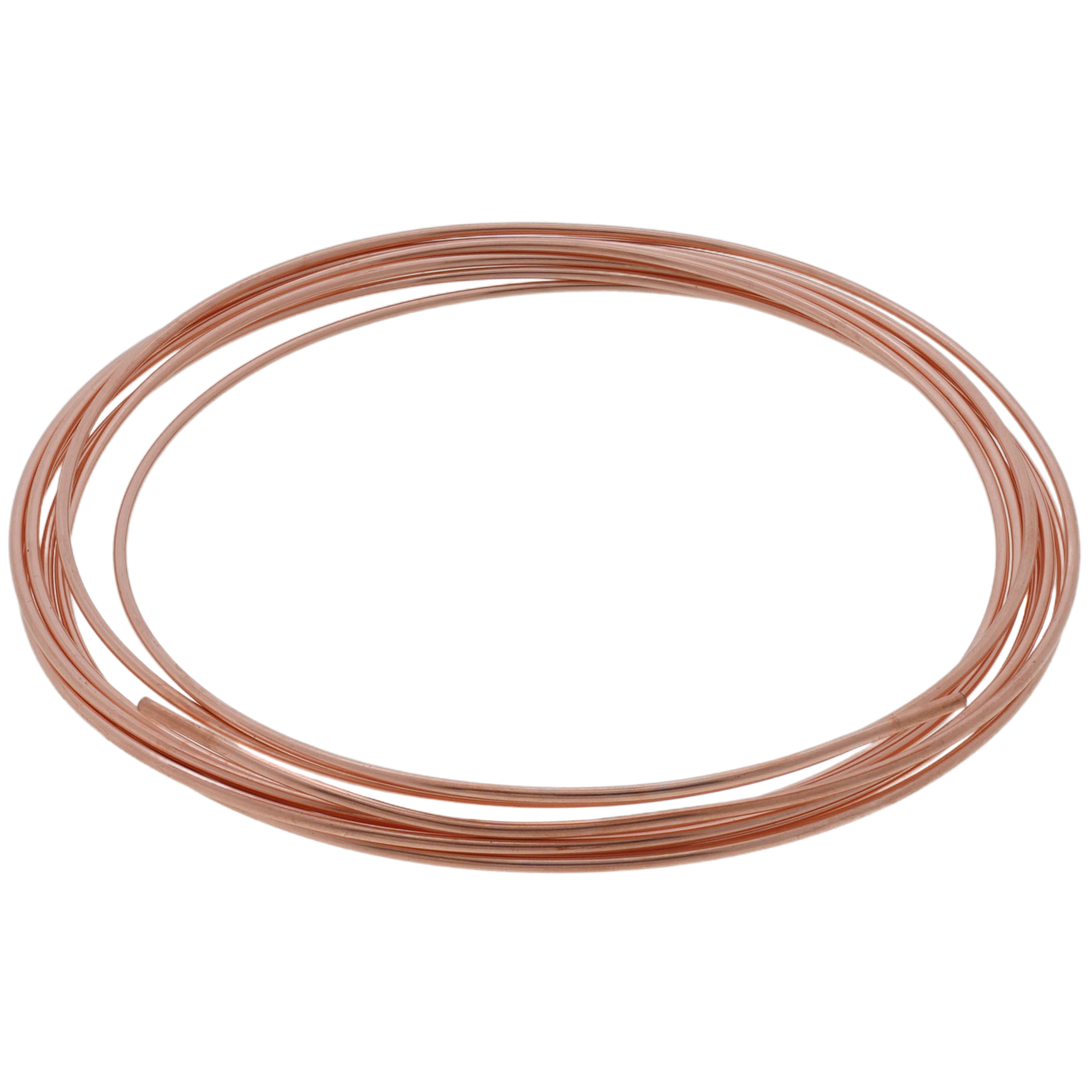

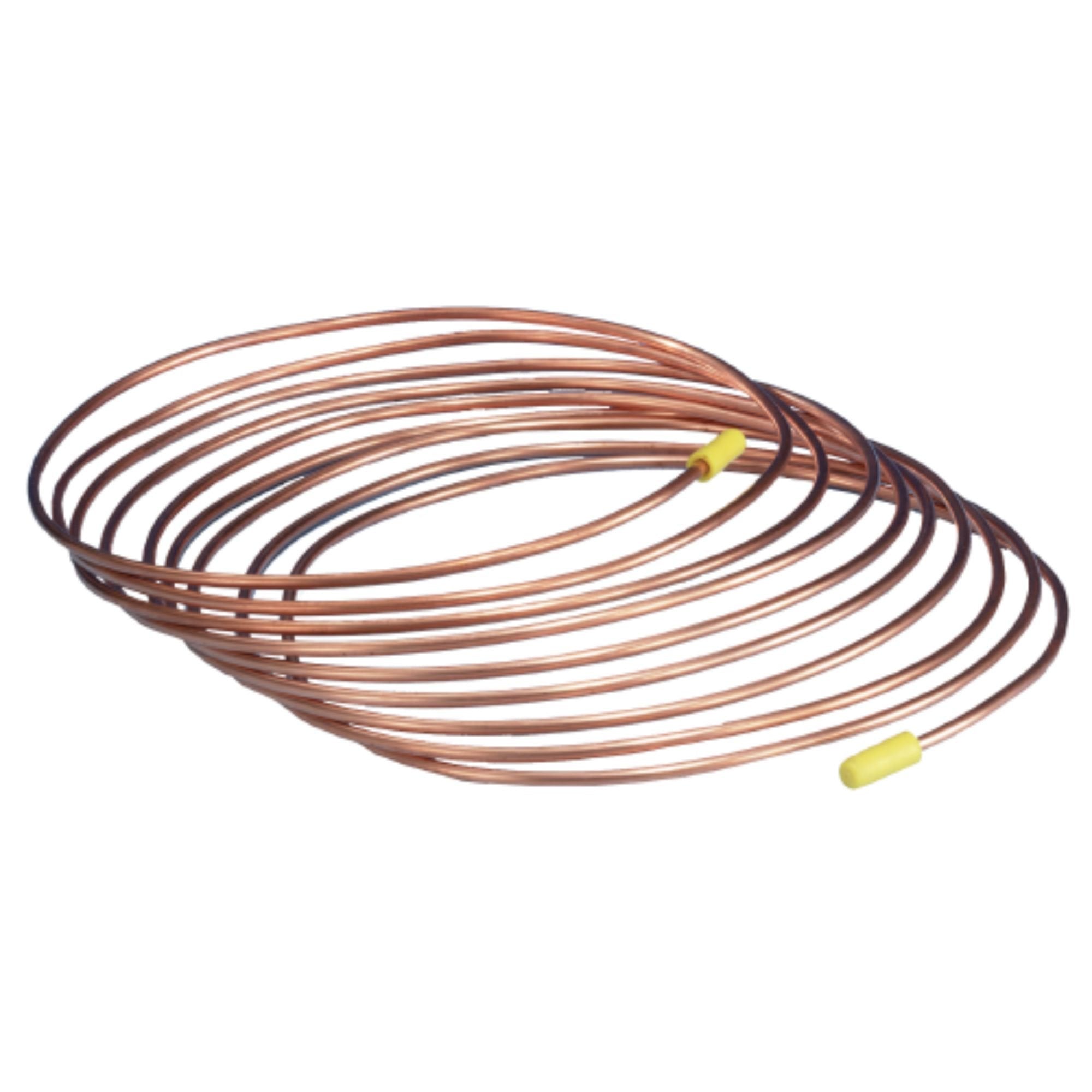

The SUPCO BC1 is a BC Series Bullet Restricto Capillary Tubing .081 O.D. x .031 I.D. 10' Ft. Coil. It fits any domestic and commercial refrigerator or room air conditioner from 1/8 Hp To 5 Hp. The soft copper capillary tubing is precision plug drawn with the internal diameter held to a tolerance of +/- .001.
- Precision Bore, Plus or Minus .001
- The Bullet Restricto CAP Is Consolidated Into A Five-Pak Replacement Kit. It's Guaranteed To Provide You with Uniformity On All Applications.
- The Five "Restricto Cap" Sizes Cover Hundreds Of Applications.
Product Highlights
The SUPCO BC1 capillary tubing can replace capillary tubes in domestic or commercial refrigerators or air conditioners. It is suitable for use with 1/8 HP to 5 HP Refrigerator or Room Air Conditioner.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: BC1
-
Country of Origin: CHN
Technical Specifications
-
Brand: Supco
-
Composition: Copper
-
Connection Type: Sweat or Braze
-
Inlet Connection Size: .031"
-
Maximum Working Pressure: Varies Based on Refrigerant Used
-
Outlet Connection Size: .031"
-
Prop 65: No
-
UOM: EA
-
UPC: 687152010578
-
Country of Origin: CHN
-
Item: Capillary Tubing
-
Size: 0.031 Inch Inner Diameter x 0.081 Inch Outer Diameter x 10 Foot Length
-
Used On Item: Domestic and Commercial Refrigerator, Freezer, 1/8 to 5 HP Air Conditioner
-
Material Specification: ASTM B360
-
Precision Bore Size: +/- 0.001 Inch
-
Outside Diameter: 0.081 Inch
-
Inside Diameter: 0.031 Inch
-
Application: Air Conditioner, Domestic and Commercial Refrigerator, Freezer
-
MPN: BC1
-
Product Type: HARDWARE_TUBING
-
Manufacturer: SUPCO
-
Product Group: Home Improvement
-
Series: BC Series
-
Diameter: 0.031 in ID x 0.081 in OD
-
Suitable For Use With: 1/8 HP to 5 HP Refrigerator or Room Air Conditioner
-
Package Quantity: 1
-
Depth: 120 in
-
Coil Length: 10 ft
-
I.D.: 0.031"
-
O.D.: 0.081"
-
Vendor Name: Supco
-
URI Part Number: BC1
-
Vendor Part Number: BC1
-
Inside Diameter (In.): 0.031
-
Outside Diameter (In.): 0.081
-
Prop65: No
-
Additional Information: Material Specification ASTM B360; Precision Bore Size +/- 0.001 Inch;Precision Bore Size +/-0.001 Inch
-
Brand Name: BULLET
-
CATALOG NUMBER: BC1
-
COMMODITY CODE DESCRIPTION Level 5: Refrigeration Capillary Tubing
-
CUSTOMER Manufacturer Part Number: 687152010578
-
Category: HVAC/R & Fans
-
Description: Refrigerant Restricto Capillary Tubing; Item Capillary Tubing; Size 0.031 Inch Inner Diameter x 0.081 Inch Outer Diameter x 10 Foot Length; Used On Item Domestic and Commercial Refrigerator, Freezer, 1/8 to 5 HP Air Conditioner; Material Specification ASTM B360; Precision Bore Size +/- 0.001 Inch;Refrigerant Capillary Tubing; Outside Diameter 0.081 Inch; Inside Diameter 0.031 Inch; Length 10 Foot Coil; Material Specification ASTM B360; Weight 0.235 Pound; Application Air Conditioner, Domestic and Commercial Refrigerator, Freezer; Precision Bore Size +/-0.001 Inch
-
Manufacturer Name: Supco
-
Manufacturer Part Number: BC1;BC31X10
-
Manufacturer Part Number Additional: BC31X10;BC1
-
Marketing Text: BC Series Bullet Restricto Capillary Tubing. Can replace capillary tubes in domestic or commercial refrigerators or air conditioners.
-
Price UOM: EA
-
Price UOM Quantity: 1
-
Series/Model: BC
-
UNSPSC Code: 40101705
-
Nominal Size: 0.081 Inch
-
Precision bore: 0.001"
-
Applications: Refrigeration & AC Systems
-
Nominal Wall Thickness: 0.05 inches
-
Item Length: 10 Feet
