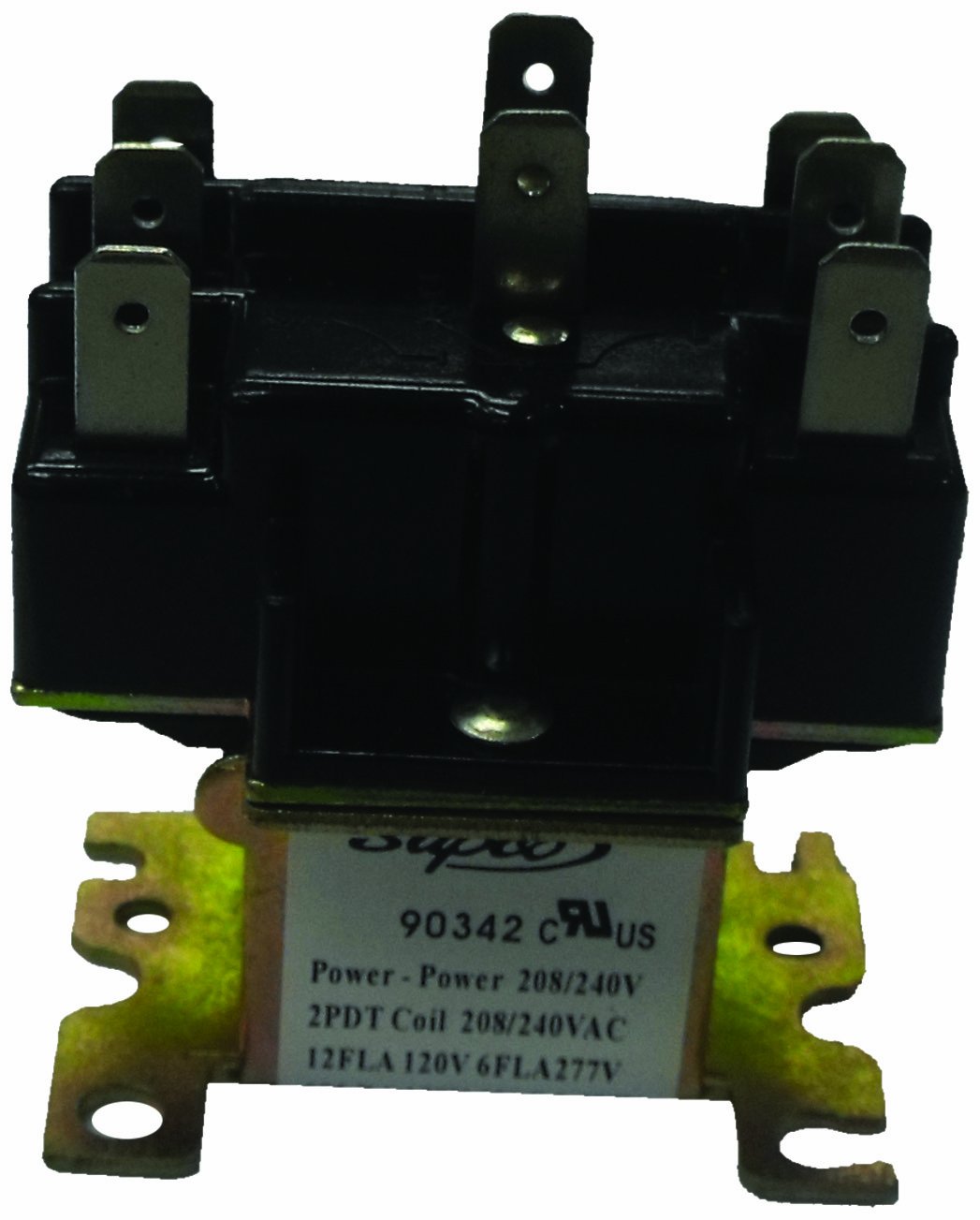

Supco 90342 General Purpose Switching Relay 208/240 V Coil Voltage Double Pole Double Throw Contacts

Product Description

This Supco 90342 general-purpose switching relay is designed for receiving and controlling electrical signals. It is suitable for various applications, including HVAC, refrigeration, appliance vending machines, fan controls, and business machines.

• Switching relay for receiving and controlling electric signals
• DPDT for simple changeover switching
• UL recognized for safety, and CSA certified for quality assurance

Product Highlights

The Supco 90342 switching relay is suitable for use in HVAC/R, vending machines, fan controls, and business machine applications.

Product Information

Standard Information

• Brand: Supco
• MPN: 90342
• UPC: 687152066834
• ASIN: B0071NAXNS

Technical Specifications

• Contacts: DPDT
• Coil voltage: 24, 110/12, 208/240
• Terminals: power
• Contact power ratings: 12 FLA and 60 LRA at 120V, 6 FLA, 15 RA, and 35 LRA at 277V
• Horsepower: 3/4
• Contact pilot ratings: 3 RA
• Horsepower: 1/10
