Product Description

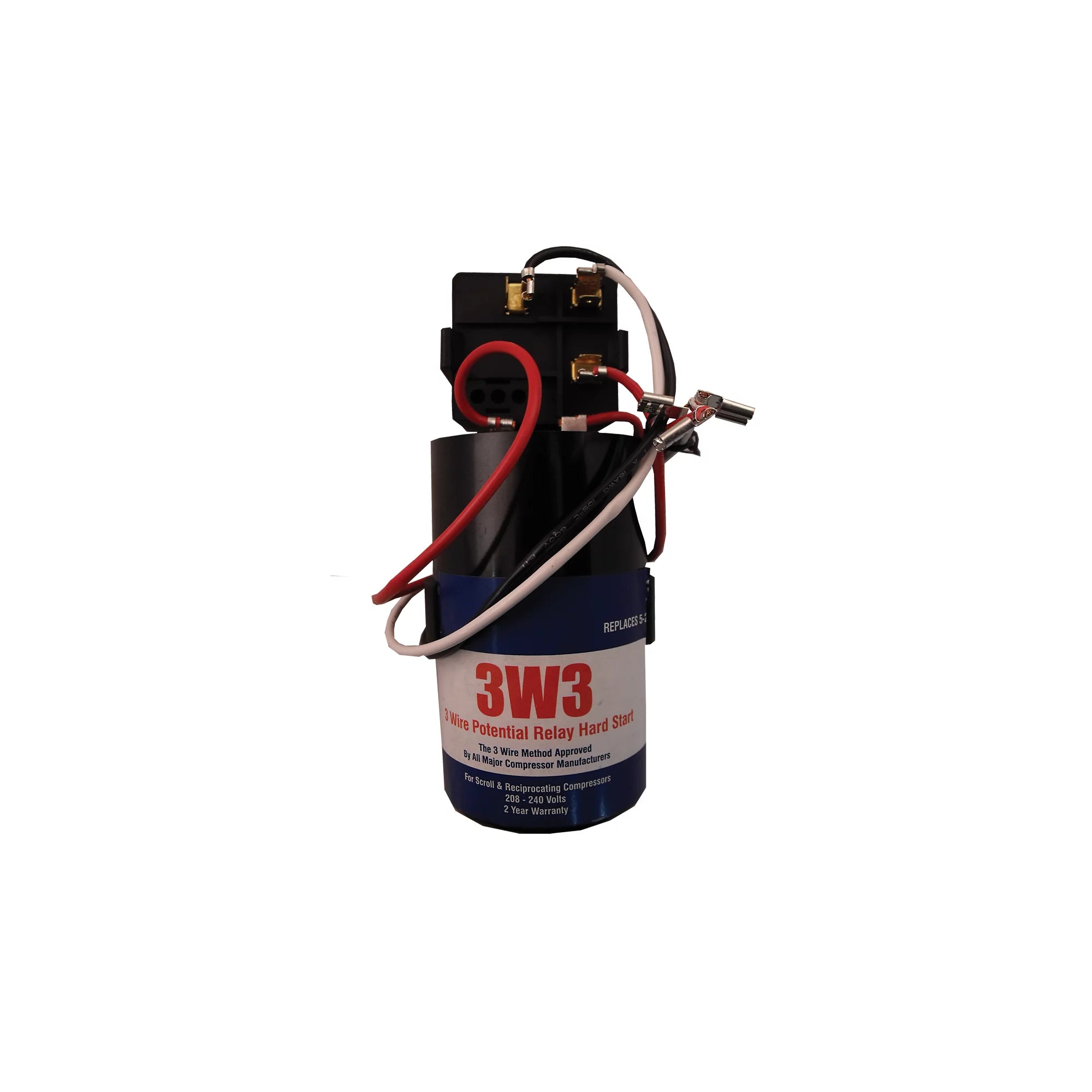

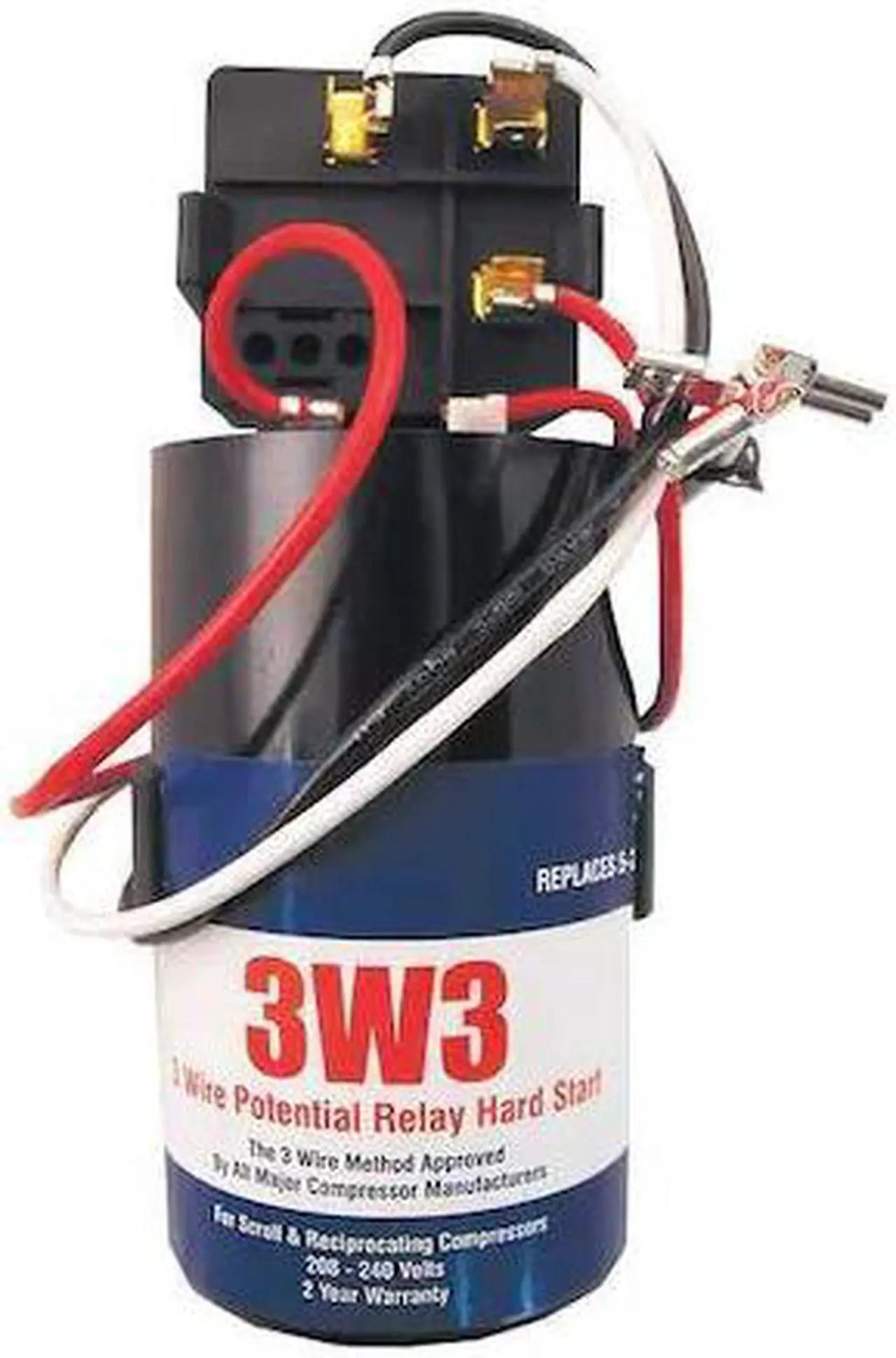

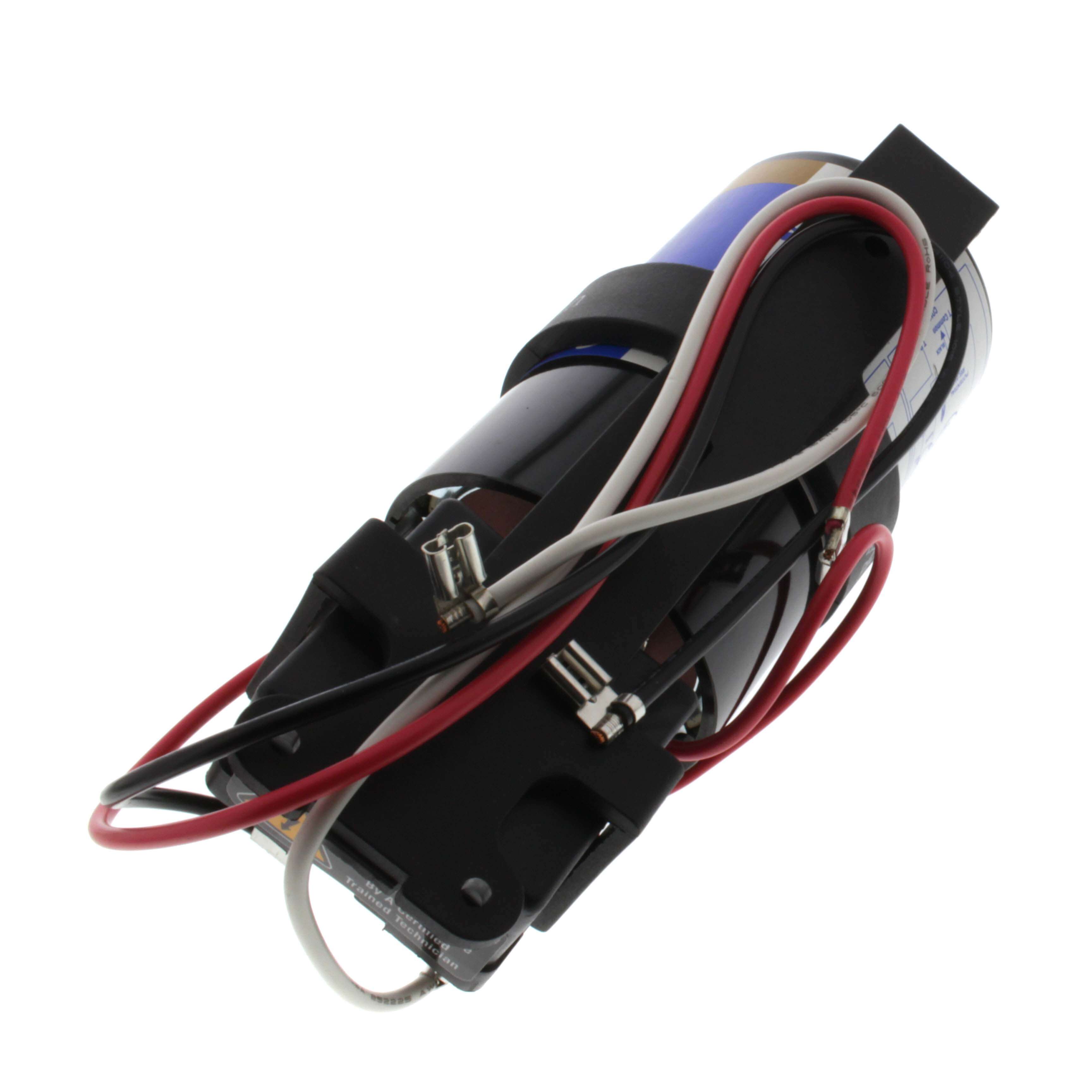

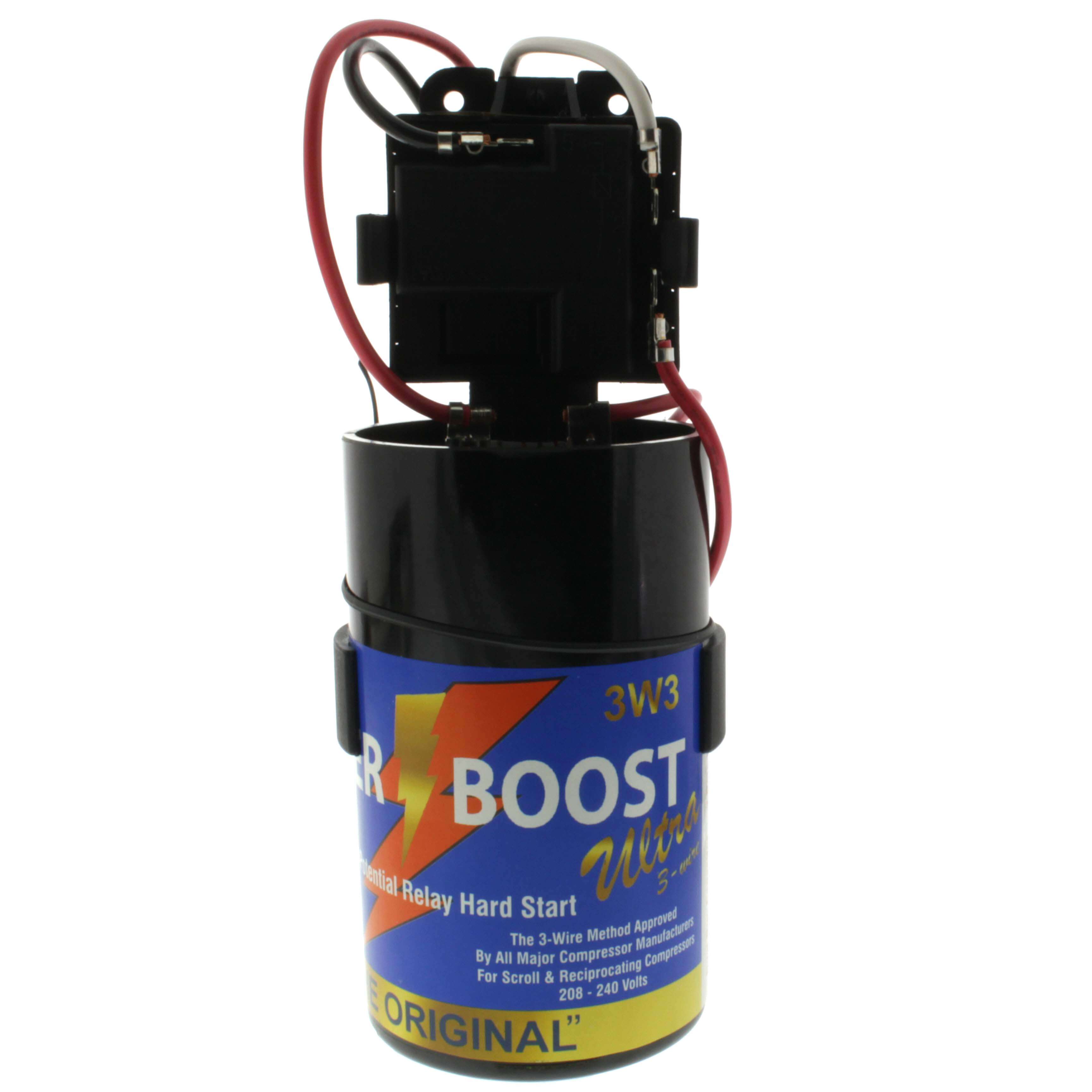

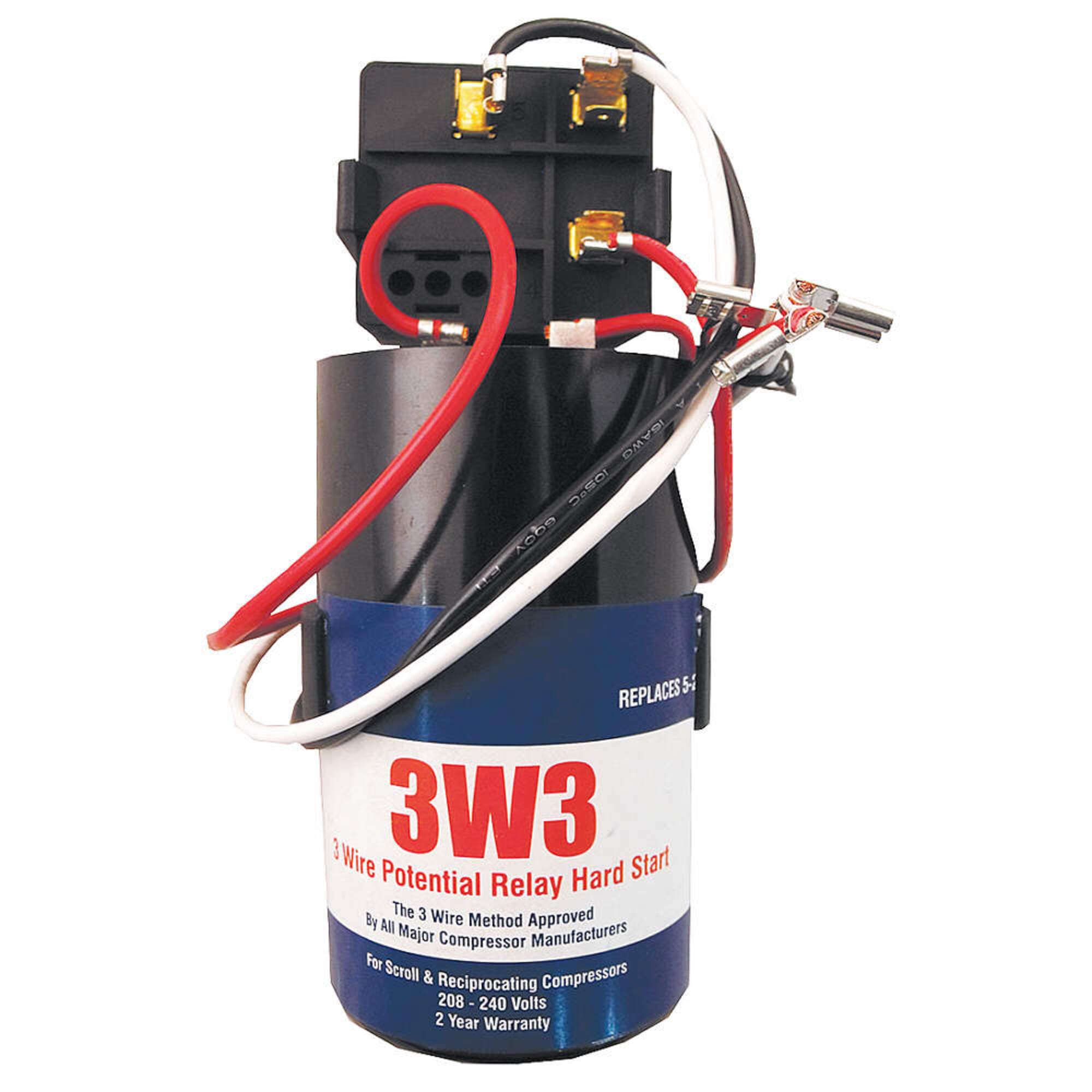

The SUPCO 3W3 hard start kit combines a potential relay and start capacitor, offering a true 3-wire solution for service professionals. It is designed for cooling capacity ranging from 4 to 5 tons and compressor types including reciprocating and scroll. The kit features instant restart and includes an EZ clamp bracket for quick installation.
- Features a mechanical potential relay
- Provides a true 3-wire solution
- Includes an EZ snap bracket for quick installation
Product Highlights
This hard start kit is voltage sensing and provides instant restart capabilities. It is suitable for single-phase air conditioner or refrigeration units and compressors.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: 3W3
-
Country of Origin: China
Technical Specifications
-
Capacitor Microfarad Rating: 270-324 MFD
-
Cooling Capacity Range: 4 to 5 ton
-
Compressor Type: Reciprocating, Scroll
-
Relay Type: Mechanical Potential Relay
-
Instant Restart: Instant Restart
-
Control Voltage: 208 to 277V AC
-
Maximum Horsepower Rating: 5 hp
-
Minimum Horsepower Rating: 4 hp
-
Number of Wires: 3 Wire
-
Product Type: Hard Start Kit
-
Includes: EZ Clamp Bracket
-
Pick Up Voltage: 180 to 195V
-
Drop Out Voltage: 40 to 105V
-
Capacitor size (µF): 270-324
-
Voltage: 208-240 VAC
-
Horse Power: 4-5
-
Cycle/Hertz: 50/60 Hz
-
For Use With: Single phase AC
-
Phase: Single
-
UL Recognized: Yes
-
Capacitor Voltage: 330 VAC
-
Range (HP): 4 to 5 hp
-
Capacitor (MFD): 270 to 324 MFD
-
Operating Voltage: 208 to 277 VAC
-
Vmax @ 40°C: 375 VAC
-
Resistance +/- 10% at 25°C: 7500 ohms
-
Pick Up: 180-195 @ 25°C
-
Drop Out: 40-105 @ 25°C
-
Applications: Hard starting compressors, Low voltage situations, Use on any single phase air-conditioner or refrigeration unit
-
Current Rating: 35 Amps
-
Brand: Supco
-
Operation Mode: Automatic
-
Number of Terminals: 3
-
Specification Met: UL
-
Manufacturer: Supco
-
Item model number: 3W3
