Product Description

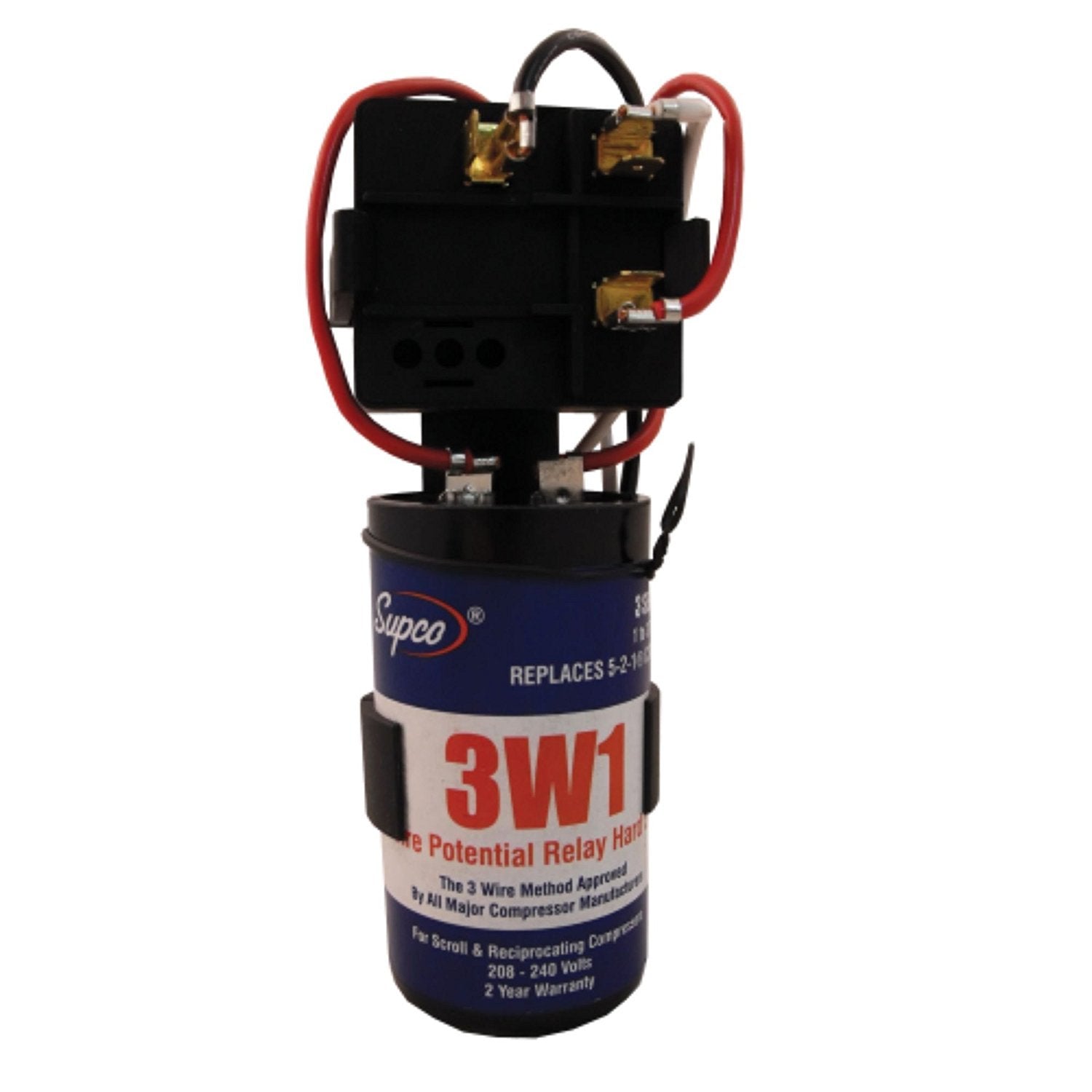

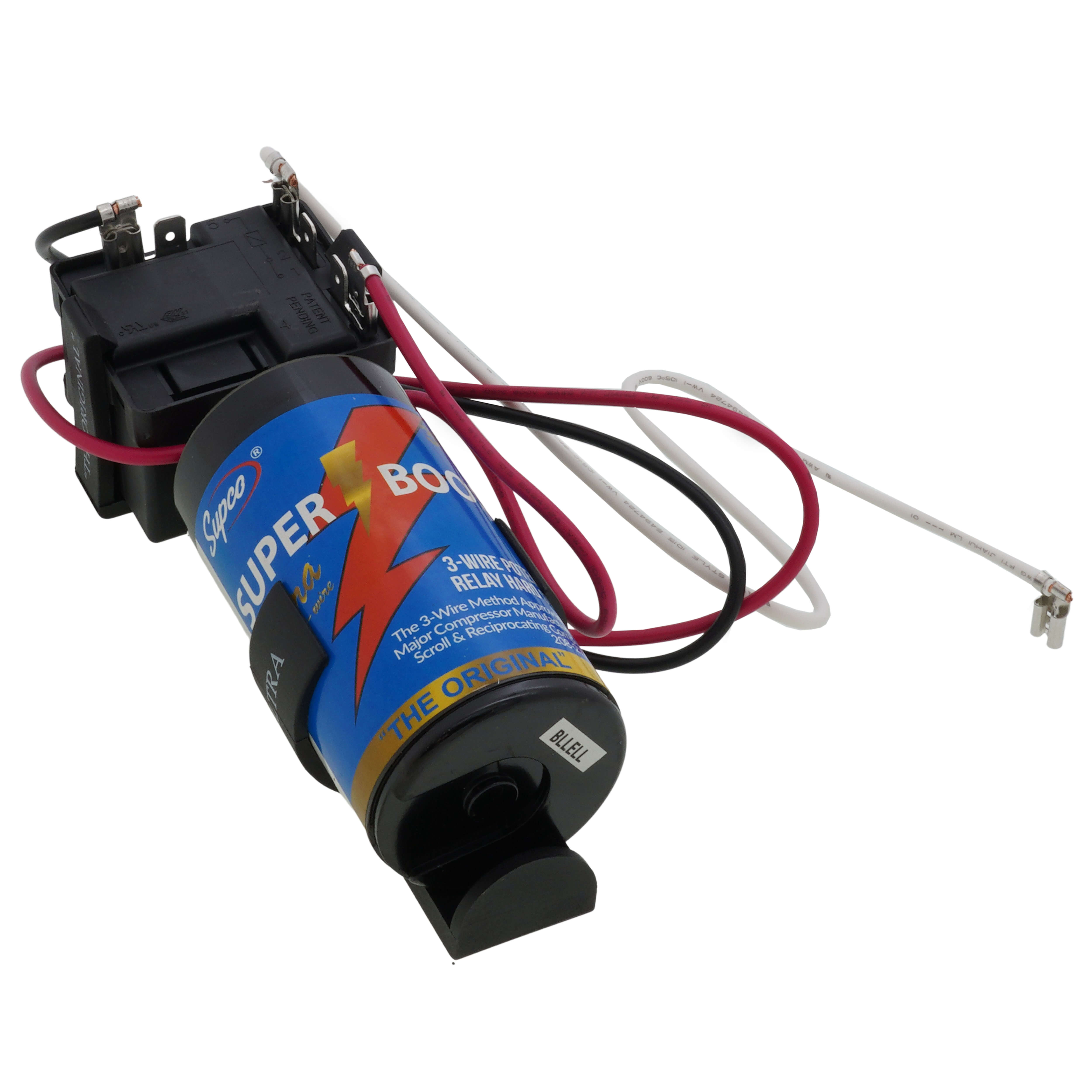

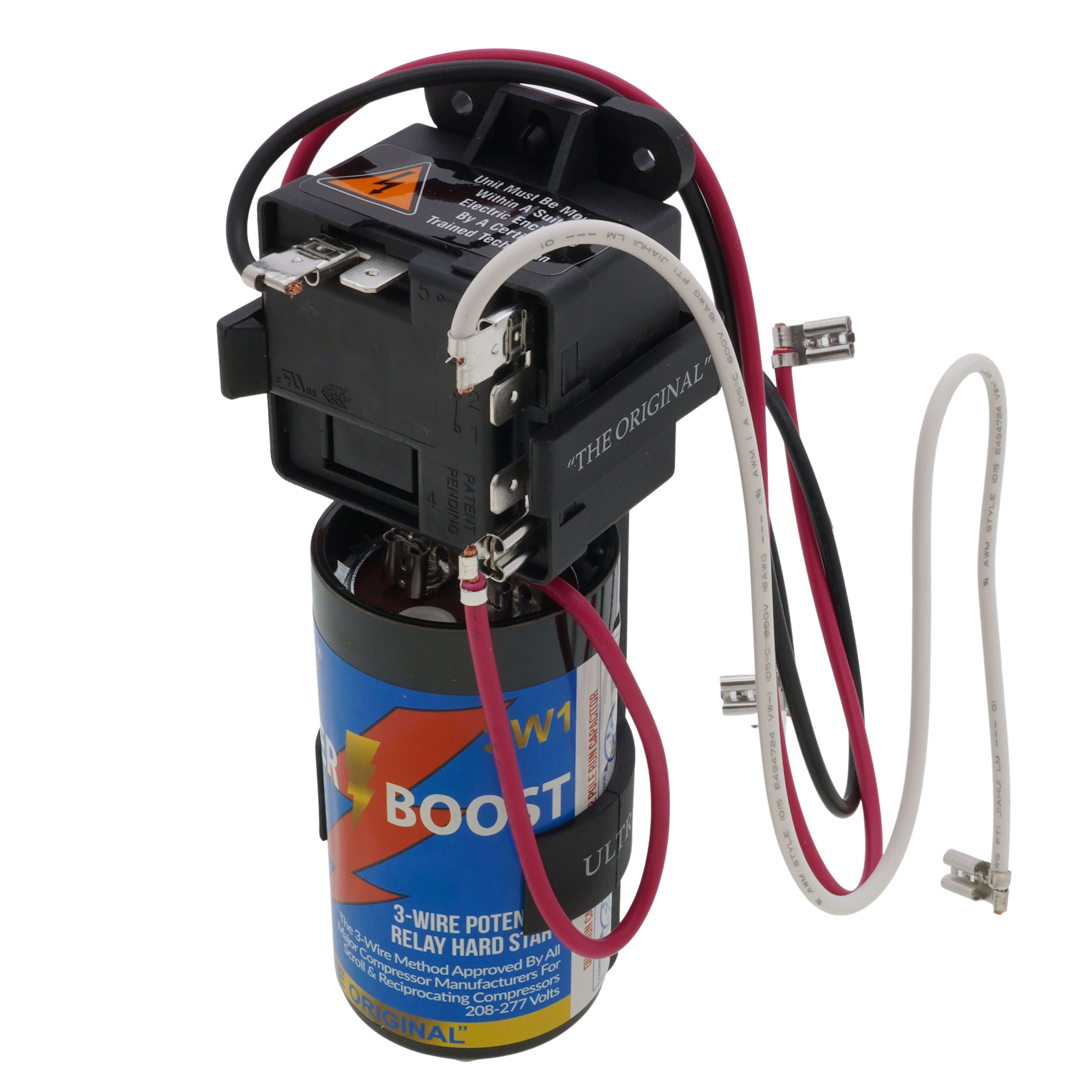

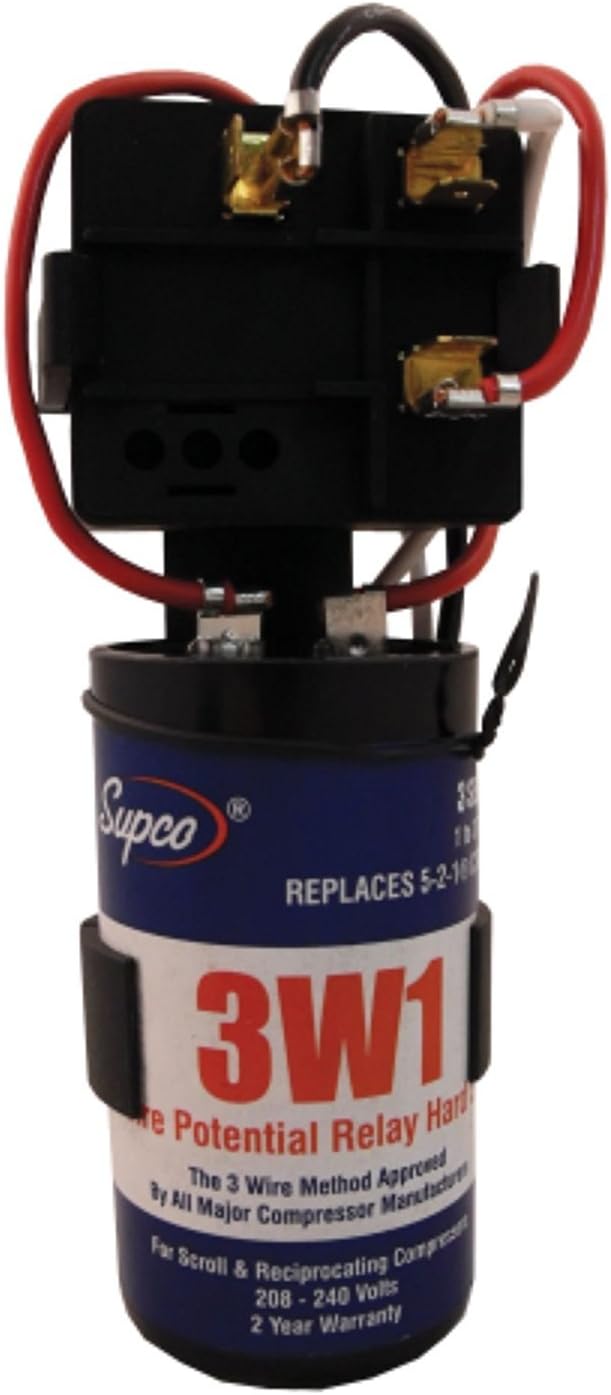

The SUPCO 3W1 hard start kit combines a potential relay and start capacitor, providing a true 3-wire solution. Designed for service professionals, this kit offers an OEM option for applications requiring a hard start. It features voltage sensing and instant restart capabilities. Operates at 208 to 277 VAC.
- Mechanical Potential Relay
- True 3-wire solution
- Voltage sensing, instant re-start
Product Highlights

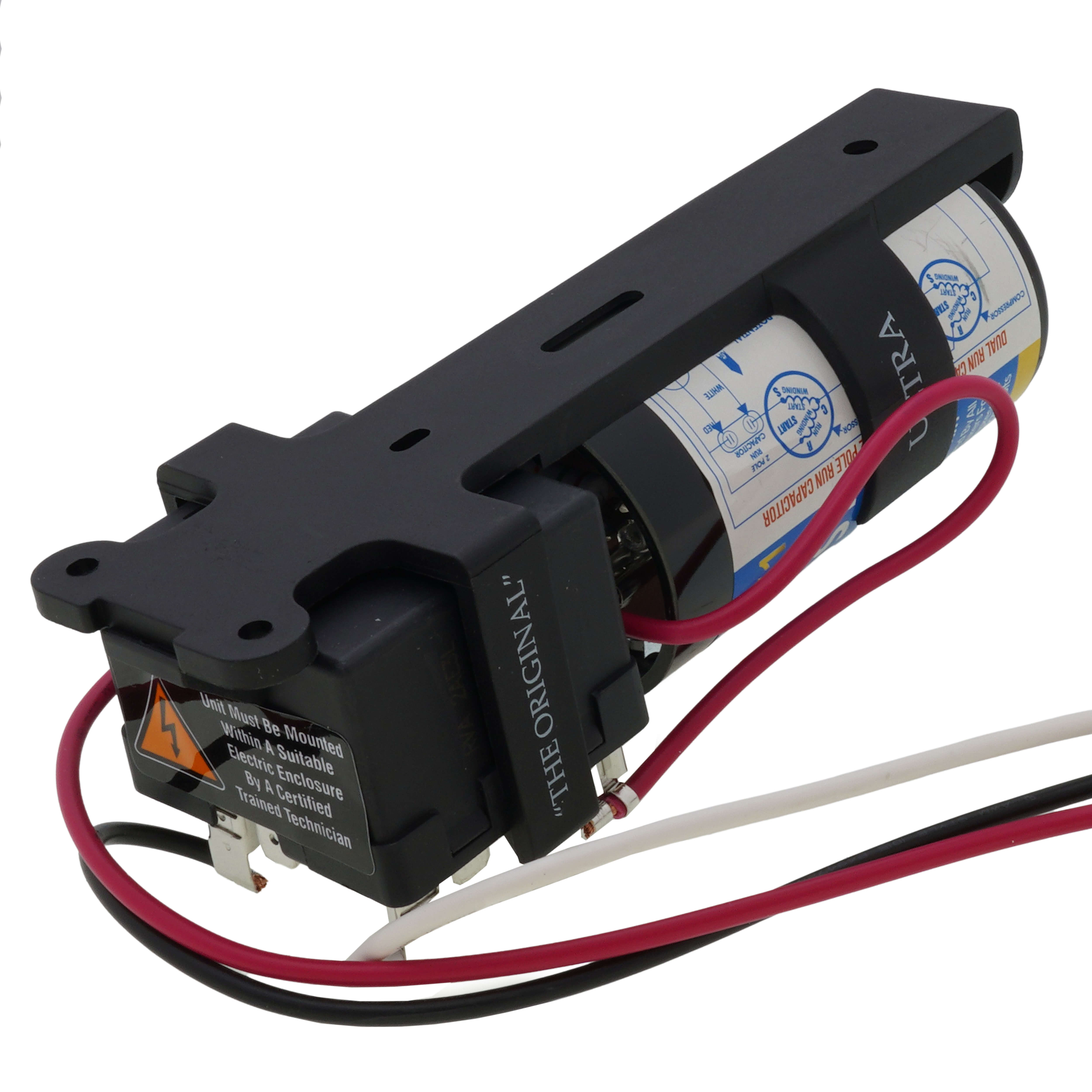

This hard start kit includes an EZ snap bracket for quick installation and a 330 VAC capacitor. UL and NATE Recognized.
Product Information
Standard Information
-
Brand: SUPCO
-
Manufacturer Part Number: 3W1
-
Country of Origin: United States
Technical Specifications
-
Wattage: 3 watts
-
Coil Voltage: 240 Volts
-
Current Rating: 35 Amps
-
Operation Mode: Automatic
-
Batteries required: No
-
Number of Terminals: 3
-
Contact Current Rating: 35 Amps
-
Maximum Switching Current: 35 Amps
-
Maximum Switching Voltage: 240 Volts
-
Voltage: 208-240V
-
Capacitor size (µF): 88-108
-
Voltage Rating: 208 to 277 Volt AC
-
Power Rating: 1 to 3 HP
-
Capacitance: 88 to 108 Microfarad
-
Capacitor Voltage Rating: 330 Volt
-
Relay Contact Rating: 35 Amp
-
Includes: EZ Snap Bracket
-
Item: Hard Start Kit, 3-Wire, Mechanical Potential Relay/Start Capacitor Combination
-
Used On Item: 1-Phase Air Conditioner/Refrigerant Unit
-
Applicable Standard: UL, NATE
-
Series/Model: 3
-
Operating Voltage: 208 to 277 VAC
-
Capacitor (MFD): 88 to 108 MFD
-
Range (HP): 1 to 3 HP
-
Capacitor Voltage: 330 VAC
-
Connector Type: Plug-In
-
Contact Type: Normally Open
-
Mounting Type: Panel Mount
-
Coil Resistance: 35
-
Minimum Switching Voltage: 208 Volts (AC)
-
Contact Material: Silver Alloy
-
Vmax @ 40°C: 332 VAC
