Supco 318984-753 SM4753 Draft Inducer Motor 115V (1 Pack) HC21ZE117

Product Description

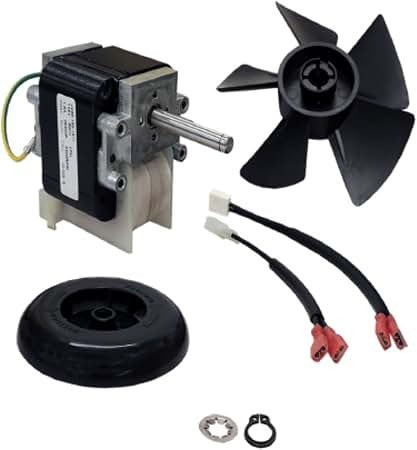

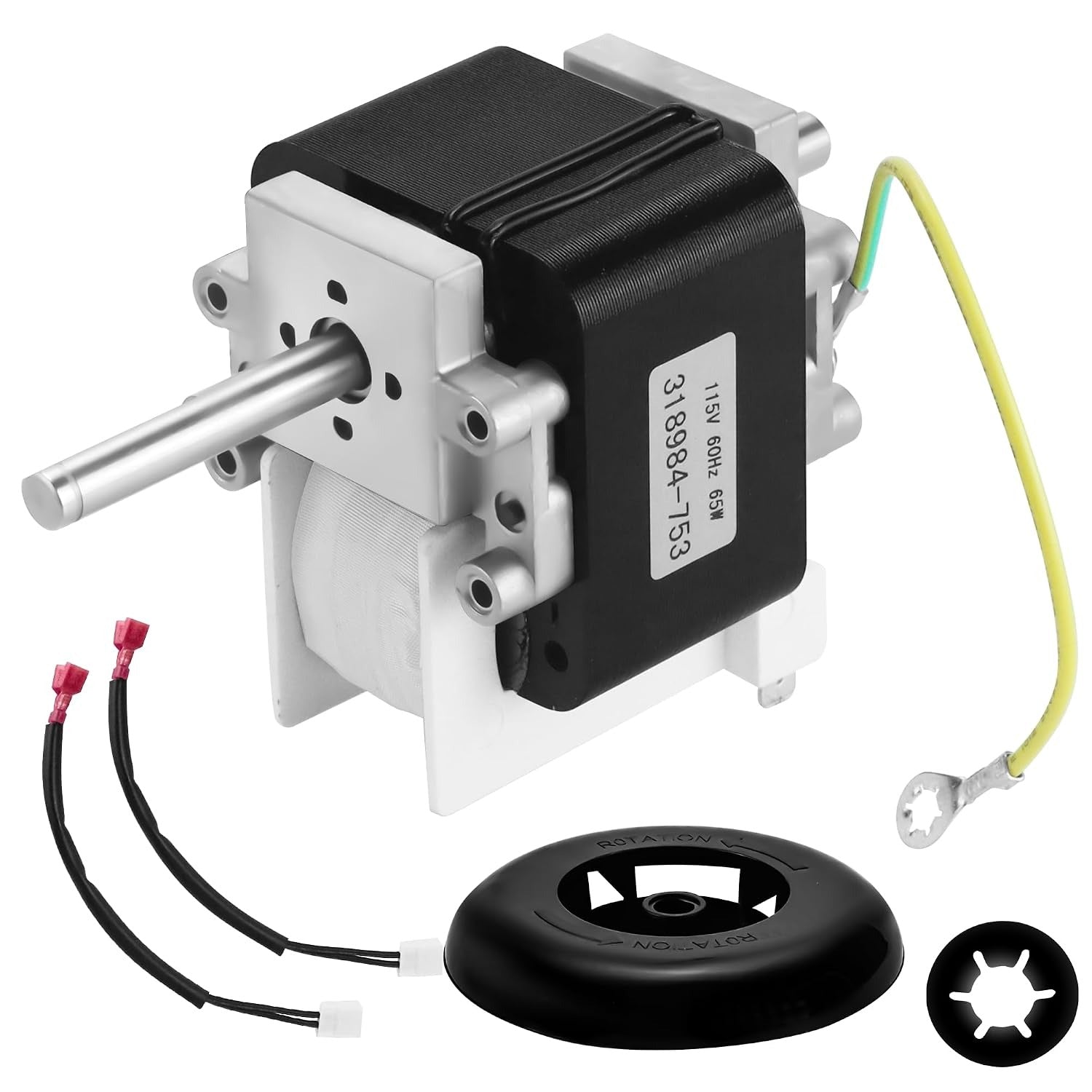

The Supco 318984-753 SM4753 is a shaded pole, ball bearing draft inducer motor rated for 115 V and intended for HVAC/R and furnace draft venting applications. The C-frame, single-speed motor delivers 3500 RPM and 1/22 HP with 1.5 FLA, includes a pre-attached cable with connectors and a plastic fan blade, and incorporates overload protection for continuous operation.

• Shaded pole, ball bearing motor with C-frame design and built-in overload protection
• Rated 115 V, 60 Hz; 3500 RPM; 1/22 HP; 1.5 full load amps; clockwise rotation
• Includes plastic fan blade and pre-attached cable with connectors; dual shaft sizes 1" & 1 7/8"

Product Highlights

Shaded pole draft inducer motor, 115 V, 3500 RPM, ball bearing, C-frame, includes fan blade and connectors

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: 318984-753
