Southland 521-604HP 3/4 in. Malleable Iron Floor Flange (1-Pack)

Brand: SOUTHLAND
SKU: 521-604HP
Availability: In Stock

Ships same day if ordered by 12 pm
$15.30
$15.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

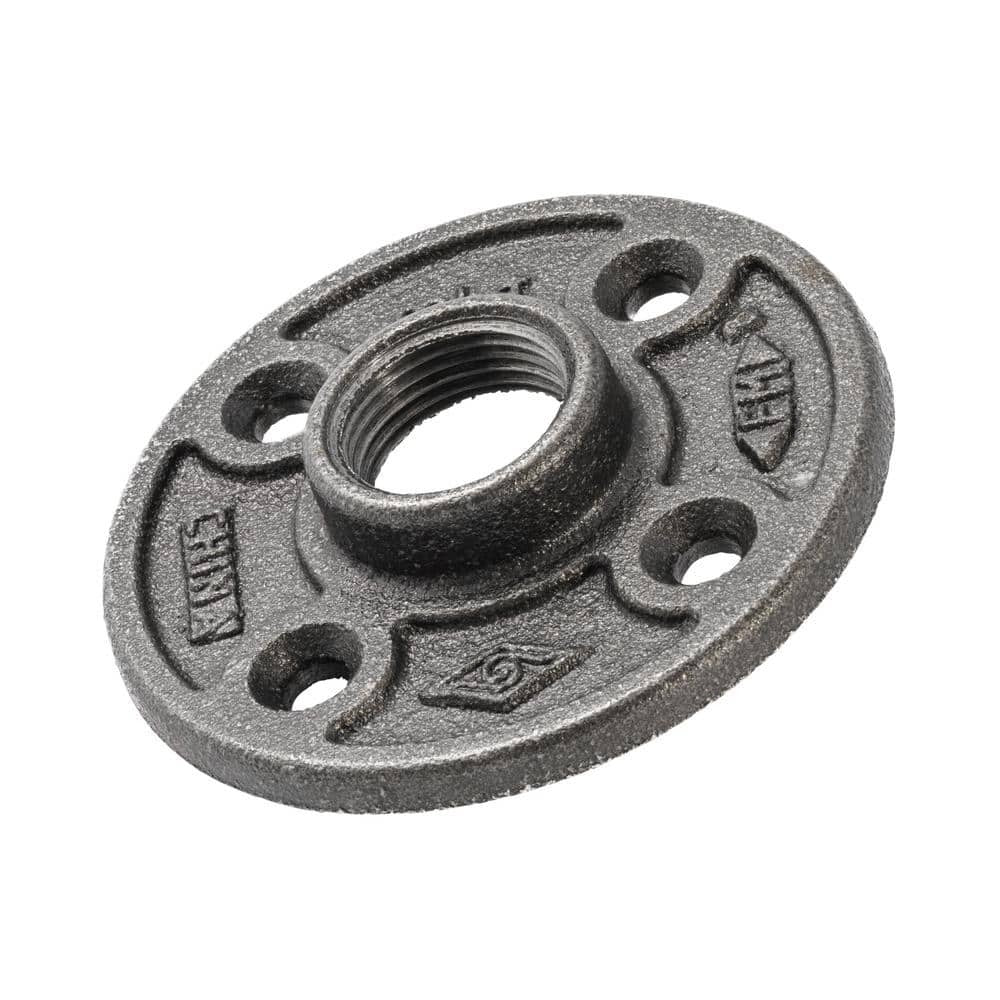

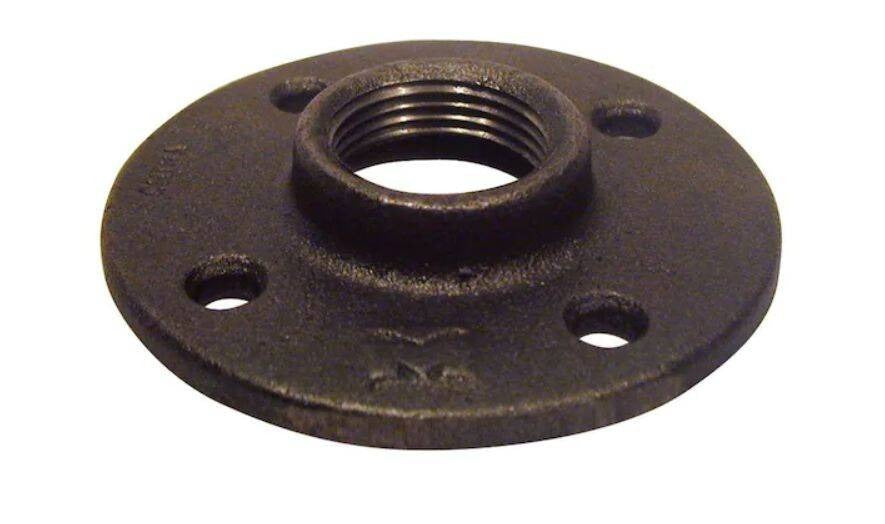

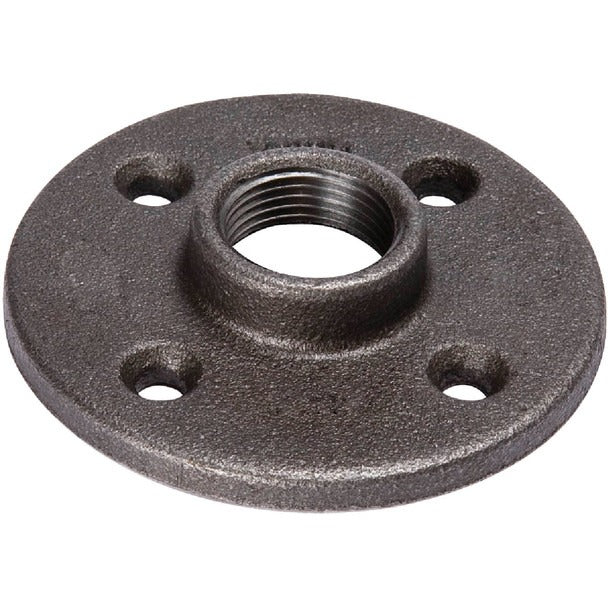

Southland 521-604HP is a 3/4 in. malleable iron floor flange designed for threaded pipe connections. The flange provides a wide base with four mounting holes and connects to NPT nipples and matching pipe threads. It is a 150-lb class hollow fitting with threads conforming to ANSI/ASME B1.20.1 and a working capability up to 500 PSI at 150°F; it is not intended for potable water use.

  • 3/4 in. malleable iron construction with threaded (NPT) connection; threads conform to ANSI/ASME B1.20.1
  • 150-lb class fitting with working capability up to 500 PSI at 150°F; temperature range -20°F to 347°F
  • Wide base with four mounting holes; hollow flange for floor or wall piping used with oil, gas, LP gas, lubricant and similar media

Product Highlights

3/4 in. malleable iron floor flange with NPT threads, four mounting holes, 150-lb class.

Product Information

Standard Information

  • Brand: SOUTHLAND
  • Manufacturer Part Number: 521-604HP
  • Country of Origin: Thailand
Technical Specifications
Brand
Southland
Manufacturer Part Number
521-604HP
Size
3/4 in.
Material
Malleable iron
Connection Type
Threaded (NPT)
Inlet Connection Size
3/4 in.
Thread Standard
ANSI/ASME B1.20.1
Class
150-lb class malleable fitting
Pressure Rating
Up to 500 PSI at 150°F
Temperature Rating
Min: -20°F; Working: 77°F; Max: 347°F
Mounting
Wide base with four mounting holes
Design
Hollow fitting (not for medium containment)
Applications
Oil, gas, LP gas, lubricant, grease, natural gas, steam, diesel, decorative projects
Not For
Potable water applications
Certifications
UL listed; FM listed
Standards
ANSI/ASME B1.20.1; ANSI/ASTM A-197; ANSI/ASME B16.3; ANSI/ASME B16.14; ANSI/ASME B16.39; ANSI B1.20.5
Dimensions
Width: 3.43 in; Height: 0.63 in
Country of Origin
China
UPC
032888209688
Prop 65
Contains lead; known to the State of California to cause cancer and reproductive harm
