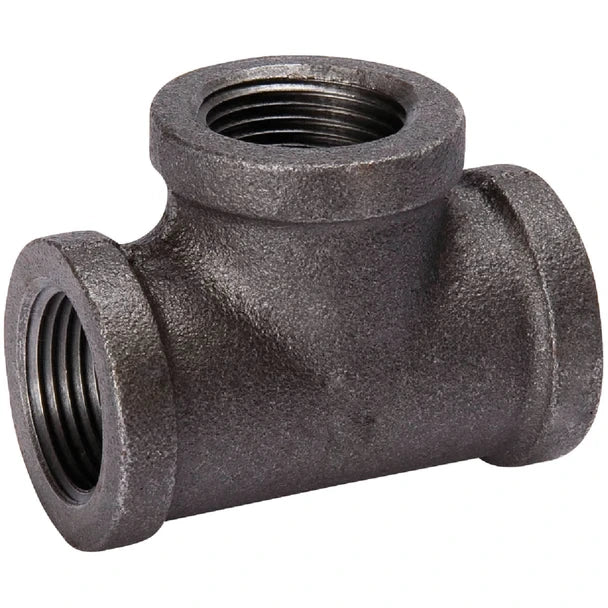

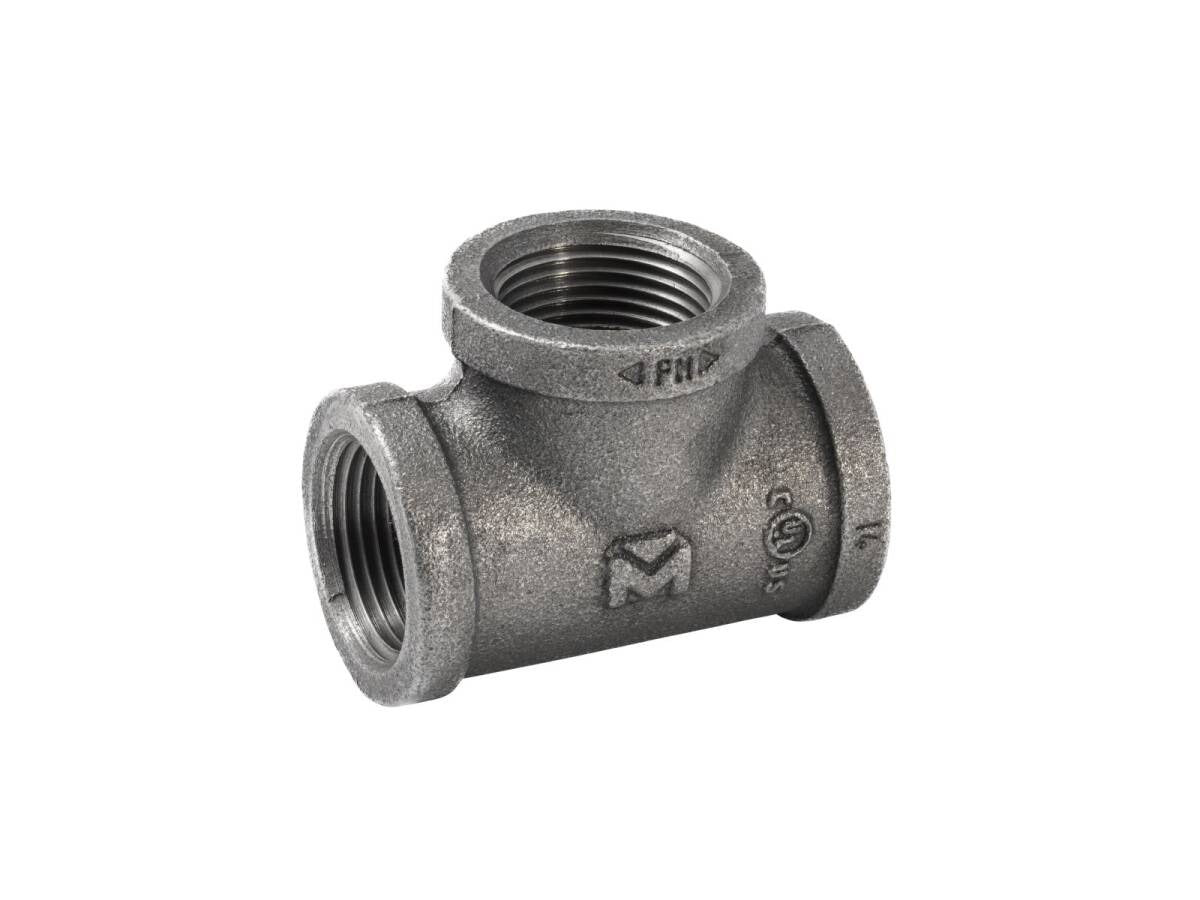

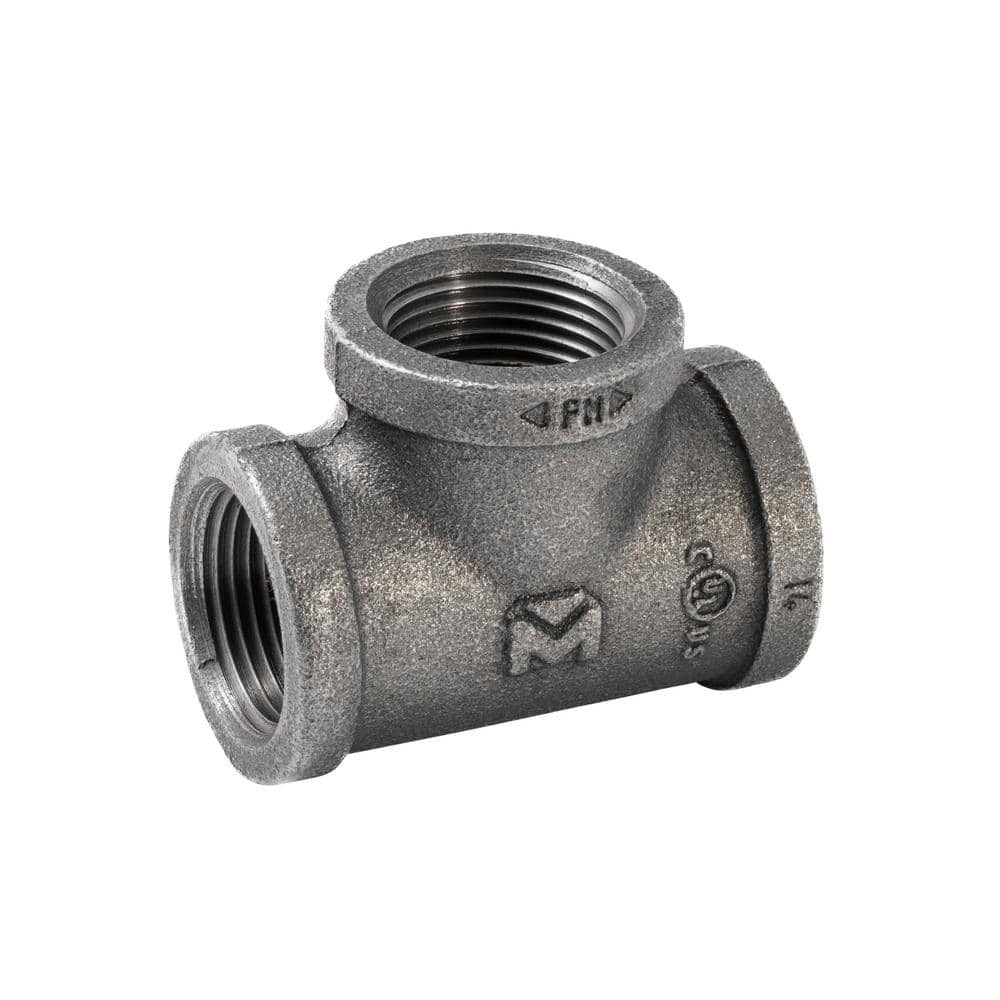

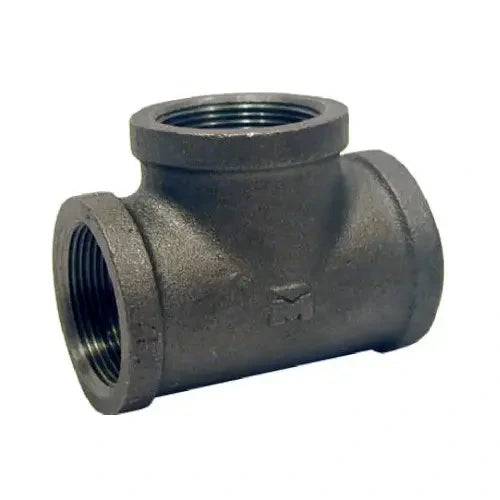

Southland 520-605HN Straight Tee 1-in (1-in)

Product Description

Southland 520-605HN is a 1-inch straight tee malleable iron pipe fitting with female iron pipe (FIP) threaded connections on all three ends. The fitting connects with NPT nipples and matching-size pipe and is intended for use in black pipe systems transporting air, natural gas, non-potable water, oil and LP gases. Dimensions are approximately 2.8 in and the part has a listed maximum working pressure of 1150 psi and temperature rating up to 350 F.

• Malleable iron construction; nominal size 1 in; triple female iron pipe (FIP) threaded connections (FIP x FIP x FIP).
• Rated maximum working pressure 1150 psi; approximate dimensions 2.8 x 2.8 x 2.8 in; weight about 0.84 lb.
• Applications include air, natural gas, oil, LP gases and non-potable water; compatible with NPT nipples; UL and FM listings noted.

Product Highlights

1 in malleable iron tee with FIP x FIP x FIP threads; 1150 psi rating; dimensions ~2.8 in; compatible with NPT connections.

Product Information

Standard Information

• Brand: SOUTHLAND
• Manufacturer Part Number: 520-605HN
• Country of Origin: China
