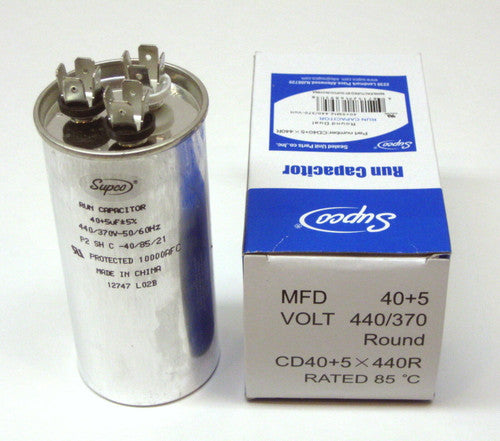

Sealed Unit Parts Supco CD40+5X440R Dual Run Capacitor

Product Description

The Sealed Unit Parts Supco CD40+5X440R is designed for HVAC and refrigeration systems. It features robust steel case construction and quick connect terminals for easy installation. The capacitor uses non-PCB biodegradable synthetic oil and includes a physical interrupter for enhanced safety.

• Round dual run capacitor
• Quick connect terminals for installation
• Physical interrupter for safety

Product Highlights

This capacitor is suitable for both new installations and replacements. It ensures efficient operation within HVAC systems.

Product Information

Standard Information

• Brand: Sealed Unit Parts Supco
• MPN: CD40+5X440R

Technical Specifications

• Capacitance: 40+5 MFD
• Capacitor Voltage: 440VAC
• Tolerance: +/- 5%
• Operating Temperature: -40 to 185 degrees F
• Agency: UL, VDE
• Shape: Round
• Frequency: 50/60 Hz
• AFC: 10,000 Protected
• Height of Can: Four and one eighth inches
• Height of Can with Terminals: Four and one half inches
• Diameter of Can: One and fifteen sixteenths inches
