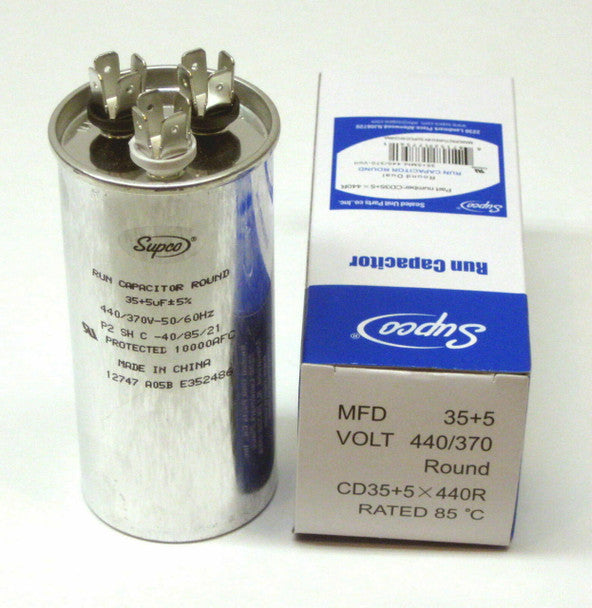

Sealed Unit Parts Supco CD35+5X440R Dual Run Capacitor

Product Description

The Sealed Unit Parts Supco CD35+5X440R is a dual run capacitor engineered for HVAC motor applications. This component has a round design and is made from reliable materials. It is tested to ensure it operates effectively within its designated voltage and temperature ranges. The capacitor contains a non-PCB biodegradable synthetic oil and includes quad blade quick connect terminals.

• Capacitance: 35 + 5 MFD
• Voltage Rating: 440 VAC
• Operating Temperature: -40 to 185 degrees F

Product Highlights

This dual run capacitor is designed for durability and performance in HVAC systems. Its efficient construction provides consistent power supply to motors, aiding in operational efficiency.

Product Information

Standard Information

• Manufacturer: Supco
• Manufacturer Part #: CD35+5X440R

Technical Specifications

• Capacitance: 35/5 Microfarad
• Capacitor Voltage: 440VAC
• Hertz: 50/60
• Style: Round
• Dimensions: 2 INCH Diameter X 4-1/8 INCH Height
• Height of Can: 4 1/8
• Diameter of Can: 1 15/16
• Tolerance (MFD): + / - 5%
• Operating Temperature: -13°F to 185°F
• Case Material: DRAWN STEEL
• Terminal Type: QUAD BLADE QUICK-CONNECT
• Agency: UL, VDE
• Non-PCB Biodegradable Synthetic Oil: Yes
• Internally Protected: true
• AFC: 10,000
