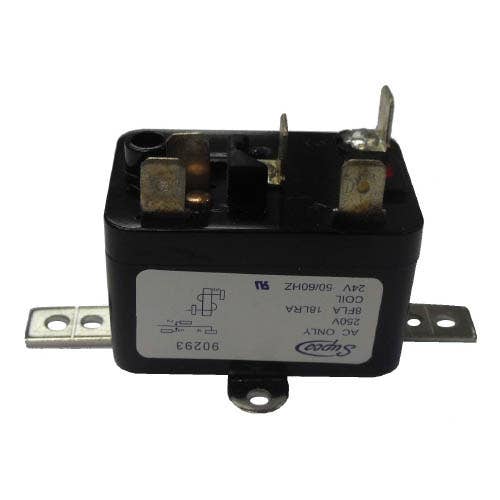

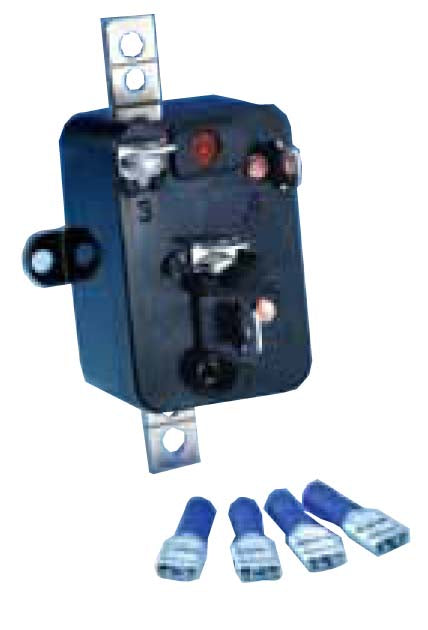

Sealed Unit Parts Supco 90293 General Purpose Fan Relay 1 A 24 V

Product Description

The Sealed Unit Parts Supco 90293 is a general-purpose fan relay designed for HVAC and refrigeration applications. This relay controls electric signals efficiently and is made for various uses like fan controls and vending machines.

• SPST-NO, SPST-NC, and SPDT contact forms
• Coil voltage rating of 24 VAC
• Compatible with HVAC/R equipment

Product Highlights

This relay is suitable for electric systems that require reliable performance in controlling fan operations.

Product Information

Standard Information

• Brand: Sealed Unit Parts Supco
• MPN: 90293

Technical Specifications

• Contacts: SPST-NO, SPST-NC, SPDT, 1 NO/1 NC
• Contact material: Silver alloy
• Power ratings: 125VAC, 18 amp resistive; 12 FLA; 240/277VAC, 18 amp resistive
• Special power ratings: 125VAC, 14 FLA; 277VAC, 25 amp resistive
• Pilot ratings: 3 amp, 277VAC general purpose
• Coil voltage rating: 24VAC
• Coil frequency: 50/60 Hz
• Coil pick-up voltage: AC 85% of nominal
