Sealed Unit Parts SM550P2 Exhaust Fan Motor and Fan Assembly Package Of 2 Replacement EM550

Product Description

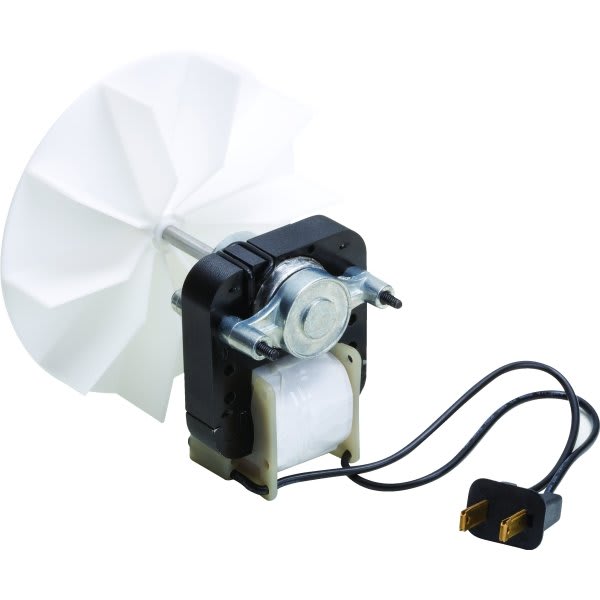

The SEALED UNIT PARTS SM550P2 is an exhaust fan motor and fan assembly package. The package includes two fan assemblies with a 4.5" diameter fan blade, 1.88" bolt center, and 0.5" stack. Operates at 120 volts and 0.48 amps, with a maximum speed of 3000 RPM. It replaces Nutone C65878, K111 and EM550, and Robertshaw 33-100 exhaust fans.

• Includes two fan assemblies
• Operates at 120V and 0.48 amps
• Replaces Nutone C65878, K111 and EM550

Product Highlights

This package contains two exhaust fan motor and fan assemblies, suitable for replacing various Nutone and Robertshaw exhaust fans.

Product Information

Standard Information

• Brand: SEALED UNIT PARTS
• Manufacturer Part Number: SM550P2
• Country of Origin: CHINA

Technical Specifications

• Amperage: 0.48 amp
• Frequency: 60 Hz
• Horsepower: 0.02 hp
• Material: Plastic
• Maximum rpm: 3000 RPM
• Model Compatibility: Nutone C65878,K111 and EM550
• Motor Rotation: CCW
• Motor Speed: 1
• Package Quantity: 2
• Phase: Single
• Shaft Diameter: 0.22 in.
• Shaft Length: 1.75 in.
• Shaft Rotation: CCW
• Voltage: 120 V
• Wattage: 9 W
• Product Depth: 3.5 in.
• Product Height: 4.5 in.
• Product Width: 4.5 in.
• Certifications & Standards: CSA Certified, UL Listed
