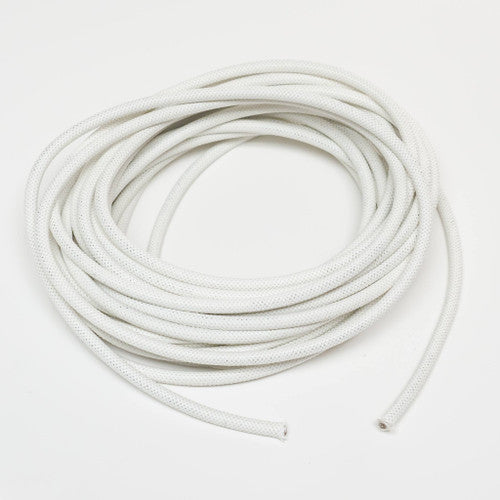

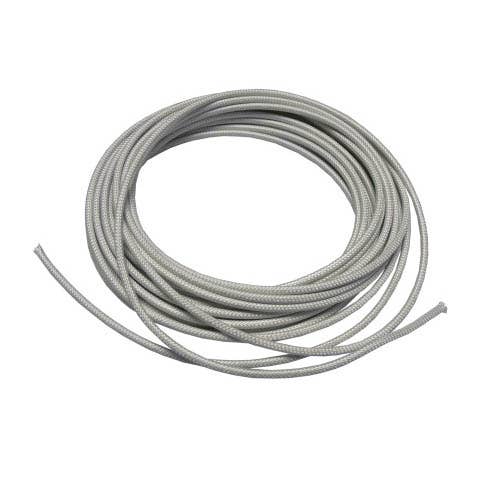

Sealed Unit Parts Co T301025 Supco 10-Gauge Nickel Hinge Wire 25 ft

Product Description

The Sealed Unit Parts Co T301025 is a ten-gauge wire designed for high-temperature applications. This twenty-five-foot wire features silicone insulation and nickel-plated copper, making it safe for high heat. Rated for up to four hundred eighty-two degrees Fahrenheit or two hundred fifty degrees Celsius and capable of handling six hundred volts, this wire is ideal for use in a variety of applications.

• High-temperature glass braid with silicone insulation
• Glass braided cover for abrasion resistance
• Replacement appliance wire

Product Highlights

This wire is perfect for HVAC and appliance replacement needs. The durable construction enhances its usability in demanding environments.

Product Information

Standard Information

• Gauge: 10 AWG
• Voltage: 600 V

Technical Specifications

• Length: 25 feet
• Temperature Rating: 482 degrees F / 250 degrees C
• Maximum Amps at 104 degrees F (40 degrees C): 73 A
• Package: Bag
