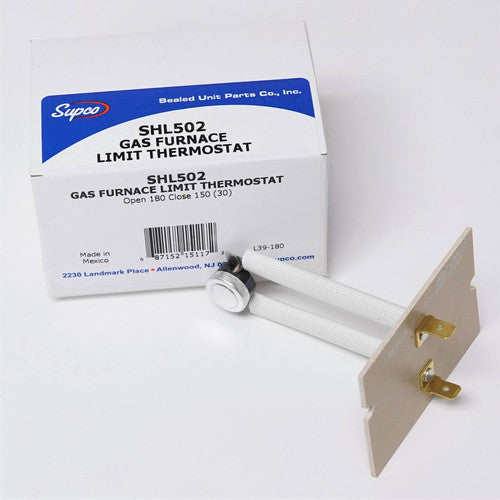

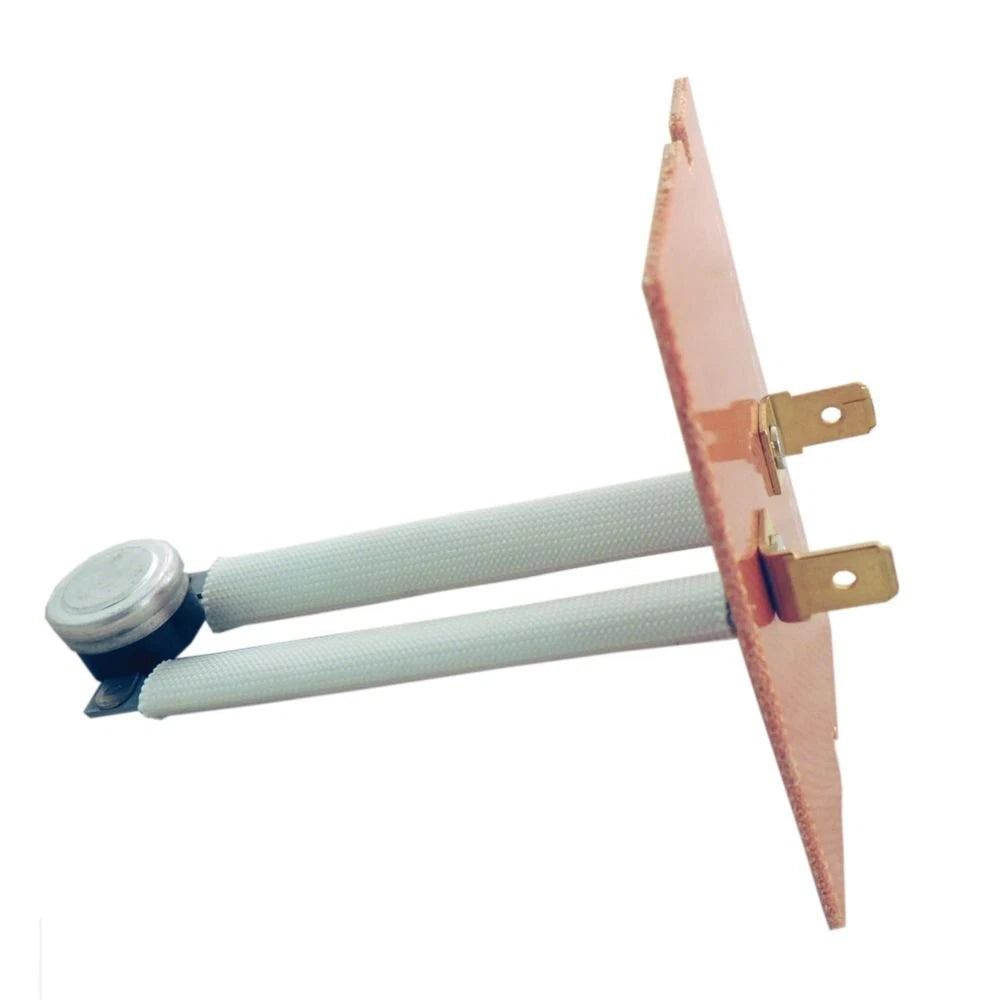

Sealed Unit Parts Co SUPCO-SHL502 Furnace Limit Thermostat

Product Description

The Sealed Unit Parts Co SUPCO-SHL502 is a furnace limit thermostat suitable for gas furnace applications. This thermostat operates as a limit switch, opening at a temperature of one hundred eighty degrees Fahrenheit and closing at one hundred fifty degrees Fahrenheit. The board dimensions are one point eight eight inches in width and two point eight inches in height, with a total insertion length of three point one two inches. Made from copper material, this multi-colored thermostat is identifiable by the manufacturer part number SHL502.

• Opens at one hundred eighty degrees Fahrenheit and closes at one hundred fifty degrees Fahrenheit.
• Board width is one point eight eight inches and board height is two point eight inches.
• The insertion length is three point one two inches.

Product Highlights

This limit thermostat is essential for maintaining safe operating temperatures in gas furnaces.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: SUPCO-SHL502

Technical Specifications

• Open Temperature: 180 degrees Fahrenheit
• Close Temperature: 150 degrees Fahrenheit
• Board Width: 1.88 inches
• Board Height: 2.8 inches
• Insertion Length: 3.12 inches
• Material: Copper
• UPC: 700985124004
