Sealed Unit Parts Co SUPCO-NS2000031 Universal Air Pressure Switch

Product Description

The Sealed Unit Parts Co SUPCO-NS2000031 is a universal air pressure switch designed for HVAC applications. It monitors positive, negative, and differential air pressures. This switch operates in temperatures from negative forty degrees Fahrenheit to one hundred ninety degrees Fahrenheit.

• Senses pressure in a range of zero point ten to ten point zero W.C.
• Maximum pressure rating of fourteen W.C.

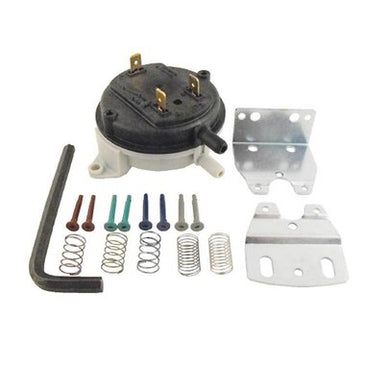

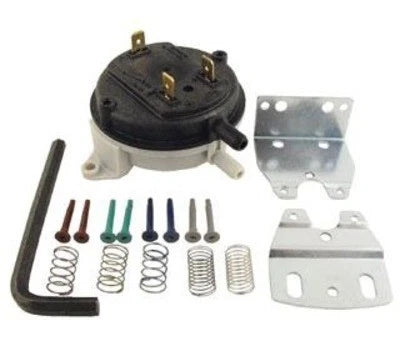

• Includes a hardware kit for easy installation.

Product Highlights

This pressure switch is suitable for a variety of HVAC/R uses and is built to last.

Product Information

Standard Information

• Type: Pressure Switch
• UPC: 687152213665

Technical Specifications

• Minimum Operating Temperature: negative forty degrees Fahrenheit
• Maximum Operating Temperature: one hundred ninety degrees Fahrenheit
• UL Listed: Yes
• CSA Listed: Yes
• Operating Range: zero point ten to ten point zero W.C.
• Max Pressure Rating: fourteen W.C.
• Product Life: one hundred thousand cycles
• Approvals: UL, CUL, CSA, CE, Australian Gas Association
• Item Number: NS2000031
