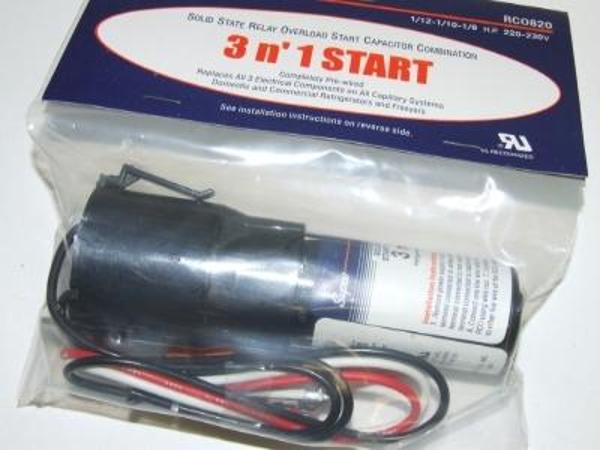

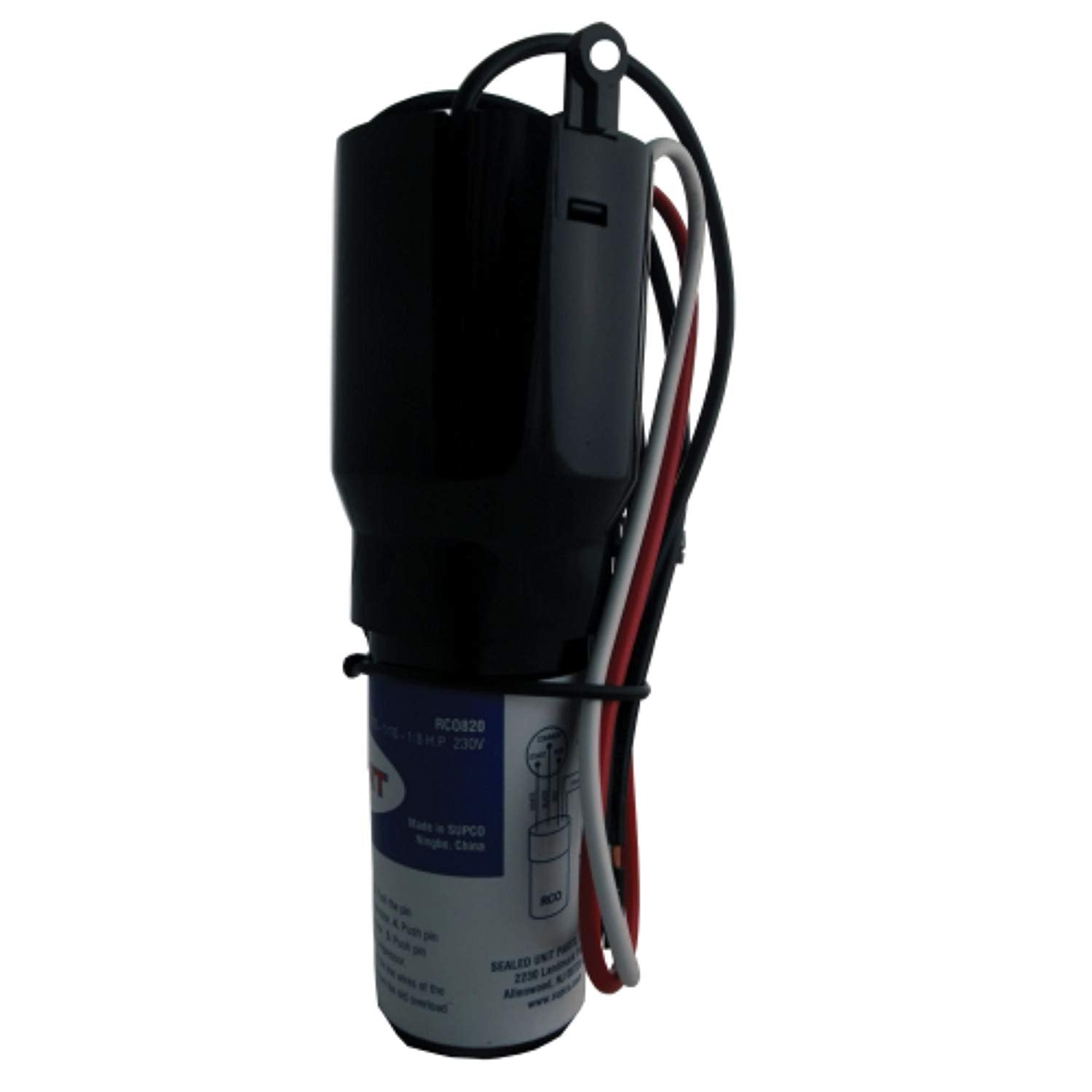

Sealed Unit Parts Co RCO820 RCO Series 3-in-1 Start Relay

Product Description

The Sealed Unit Parts Co RCO820 is an RCO Series 3-in-1 start relay for systems operating at 230 volts. This device replaces both relay and overload components and aids hard start applications, making it ideal for unbalanced systems. It is UL Recognized and designed for compressors ranging from one-twelfth to one-eighth horsepower. The relay ensures a quick connect mounting for easy installation and features solid state components along with a built-in capacitor and overload protection.

• Maximum continuous RLA: 1.66A
• HP rating: 1/12 - 1/8
• 230V voltage rating

Product Highlights

This start relay is effective in preventing low voltage starting issues, thus improving the performance of your equipment.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: RCO820

Technical Specifications

• Maximum Continuous RLA: 1.66A
• Voltage: 230V
• HP Rating: 1/12 - 1/8
• Mounting: Quick connect
• Type: Solid state + capacitor + overload protection
