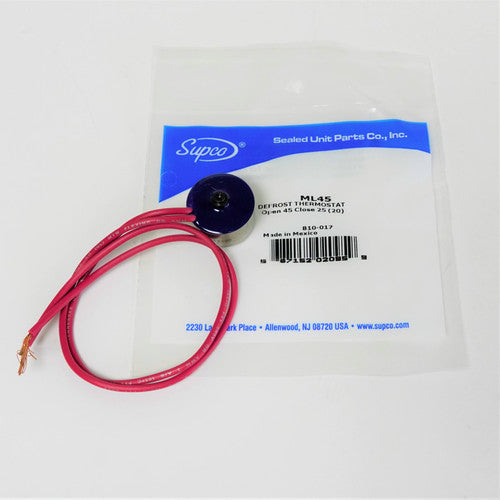

SEALED UNIT PARTS CO ML45 Thermostat

Product Description

The SEALED UNIT PARTS CO ML45 is a bimetal disc thermostat designed specifically for effective temperature control. Its sealed construction makes it ideal for moisture-prone environments, ensuring durability and reliability. This thermostat is capable of handling electrical loads of up to 10 amps at one hundred twenty volts and five amps at two hundred forty volts. It opens at forty-five degrees Fahrenheit and closes at twenty-five degrees Fahrenheit.

• Features a robust metal case.
• Includes leads for straightforward connection.
• Recognized by UL and CSA approved.

Product Highlights

This thermostat is built for both efficiency and safety in temperature regulation.

Product Information

Standard Information

• Brand: SEALED UNIT PARTS CO
• MPN: ML45

Technical Specifications

• Open Temperature: 45 °F
• Close Temperature: 25 °F
• Differential: 20 °F
• Current Rating: 10 amps at 120V, 5 amps at 240V
• Lead Length: 24 inches
• UL Recognized: Yes
• CSA Approved: Yes
