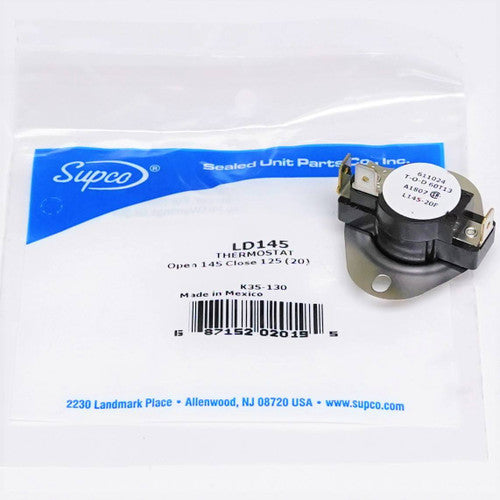

Sealed Unit Parts Co LD145-2 Heater Limit Thermostat

Product Description

The Sealed Unit Parts Co LD145-2 is a heater limit thermostat with SPDT functionality. This device opens when the temperature rises beyond one hundred forty-five degrees Fahrenheit and closes at one hundred twenty-five degrees Fahrenheit. It includes 1/4 quick disconnect terminals for easy and efficient electrical connections.

• SPDT thermostat functionality
• Opens at one hundred forty-five degrees Fahrenheit and closes at one hundred twenty-five degrees Fahrenheit
• Welded construction for improved component integrity

Product Highlights

This thermostat is part of the L Series and is built to manage up to twenty-five amps at 240VAC. It incorporates a three-quarter inch (nineteen millimeter) bimetal disc for reliable operation.

Product Information

Standard Information

• UPC: 687152020195

Technical Specifications

• Opens at: 145 Degrees Fahrenheit
• Closes at: 125 Degrees Fahrenheit
• Series: L Series
• Disc Size: 3/4 (19mm)
• Amperage: Up to 25 amps
• Voltage: 240VAC
