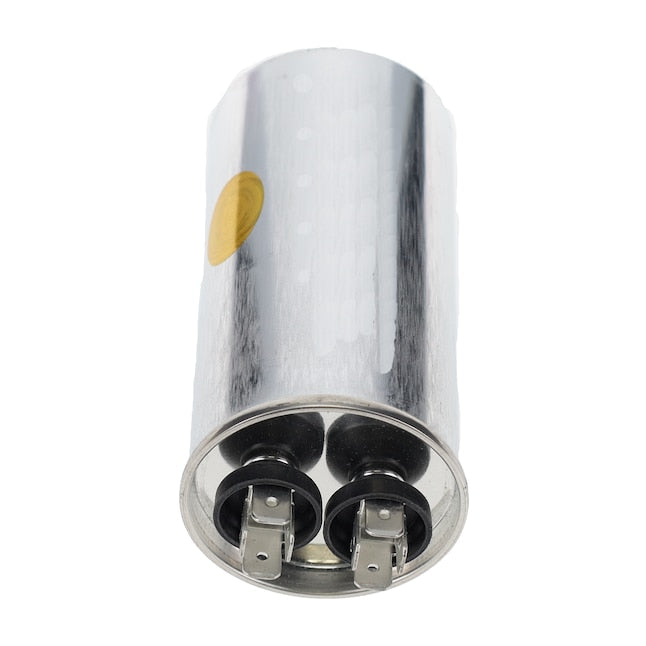

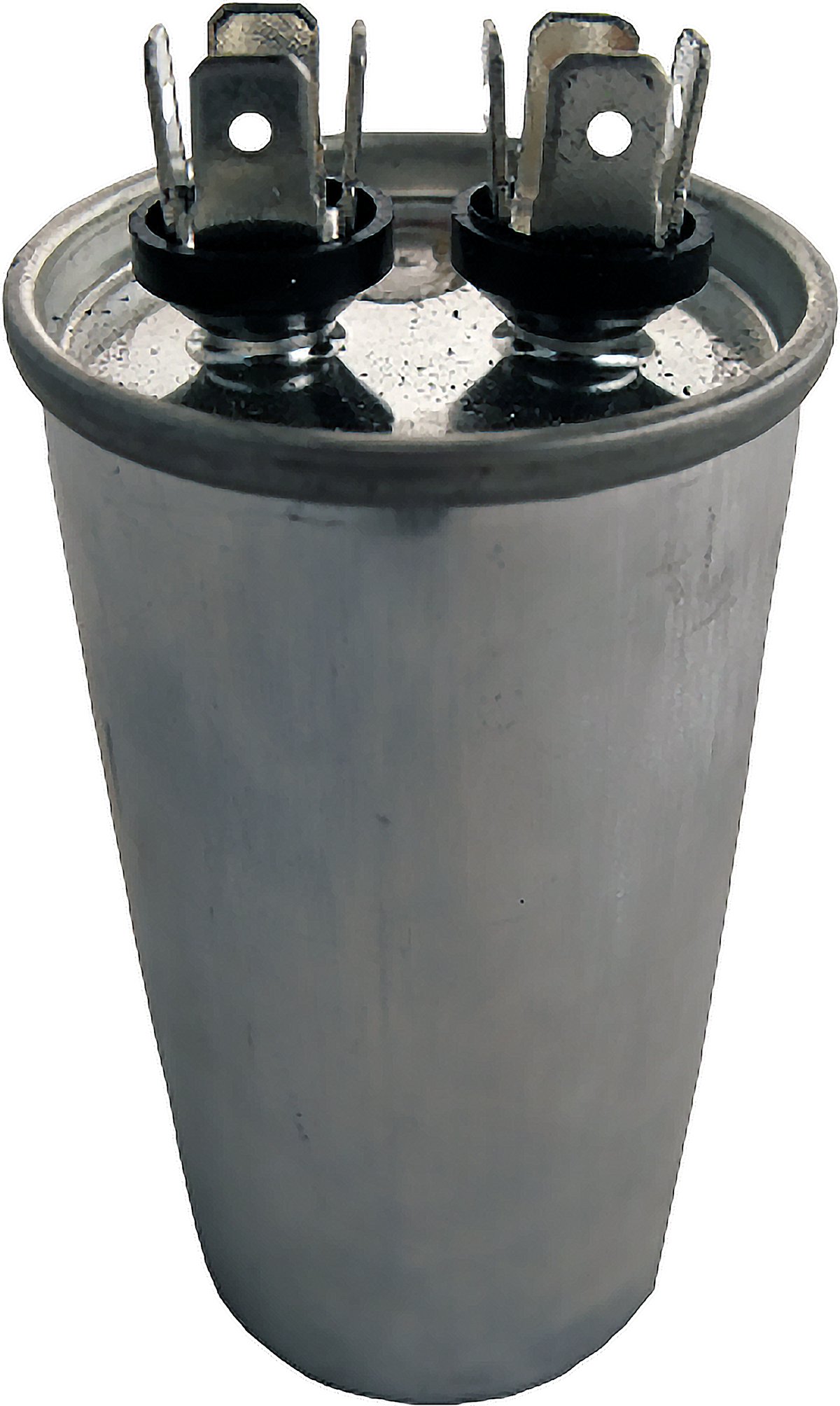

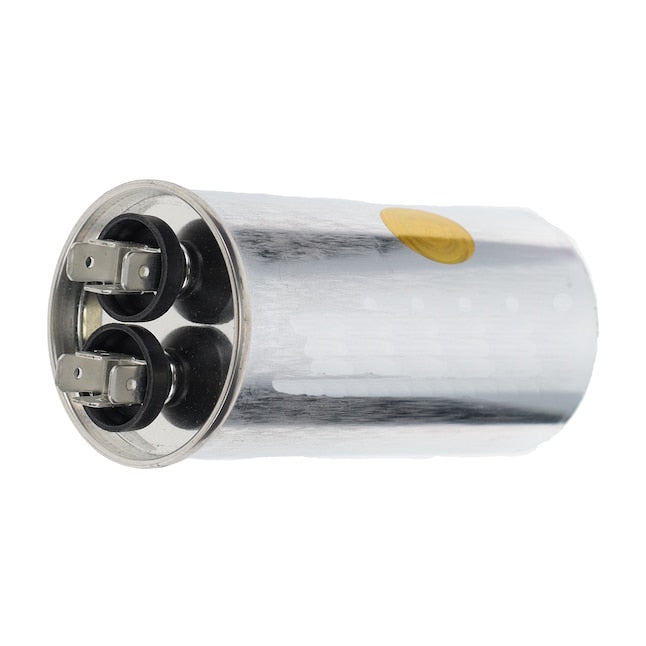

Sealed Unit Parts Co LCR40X440R Round Run Dual Motor Capacitor 370/440 VAC

Product Description

The Sealed Unit Parts Co LCR40X440R is a round run dual motor capacitor used in HVAC systems. This component is essential for air conditioning and refrigeration compressors, as well as for furnace blowers and condenser fan motors. This capacitor is made by Sealed Unit Parts Co, an ISO-certified manufacturer with over twenty years of experience in producing reliable OEM capacitors. Each unit is tested in-line to meet strict international standards. Built with thick polypropylene foil, this capacitor can manage high operating temperatures effectively.

• Capacitance of 40 MFD rated for 370/440 VAC.
• Meets EIA-456A life test requirements at seventy degrees Celsius for sixty thousand hours.
• Includes quad blade quick connect terminals for straightforward installation.

Product Highlights

This dual motor capacitor provides stable performance for HVAC applications, ensuring efficient operation in various systems.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: LCR40X440R

Technical Specifications

• Capacitor Voltage: 370/440 VAC
• Capacitance (MFD): 40 uf
• Style: Round Run
• Dimensions: 1.77 inches diameter x 3.94 inches
• Tolerance (MFD): +/- 5%
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Agency Approvals: UL, VDE
• UL File Number: E352486
