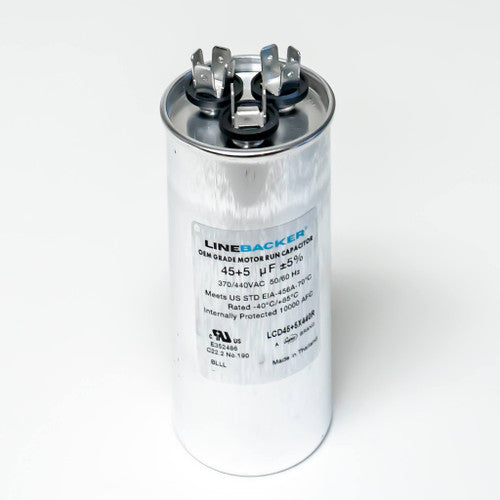

SEALED UNIT PARTS CO LCD45+5X440R Dual Run Capacitor

Product Description

The SEALED UNIT PARTS CO LCD45+5X440R is a dual run capacitor suitable for HVAC motors and compressors. It operates safely at voltages of three hundred seventy or four hundred forty VAC and offers a capacitance of forty-five and five Mfd uf with a tolerance of plus or minus five percent.

• Dimensions: two inches in diameter and four point three inches in height
• Temperature range: operates between negative forty and eighty-five degrees Celsius
• Equipped with quad blade quick connect terminals

Product Highlights

This capacitor meets the EIA-456A accelerated life test at seventy degrees Celsius for sixty thousand hours. It has a pressure-sensitive short-circuit interrupting capability of ten thousand AFC and undergoes extensive testing for life, oil leaks, and dielectric integrity.

Product Information

Standard Information

• Brand: SEALED UNIT PARTS CO
• MPN: LCD45+5X440R

Technical Specifications

• Capacitor Voltage: 370/440VAC
• Style: Round
• Capacitance: 45 + 5 Mfd uf
• Dimensions: 2 inches diameter x 4.3 inches
• Tolerance: + / - 5%
• Operating Temperature: -40 to 85 degrees C
• Agency Approvals: UL, VDE
