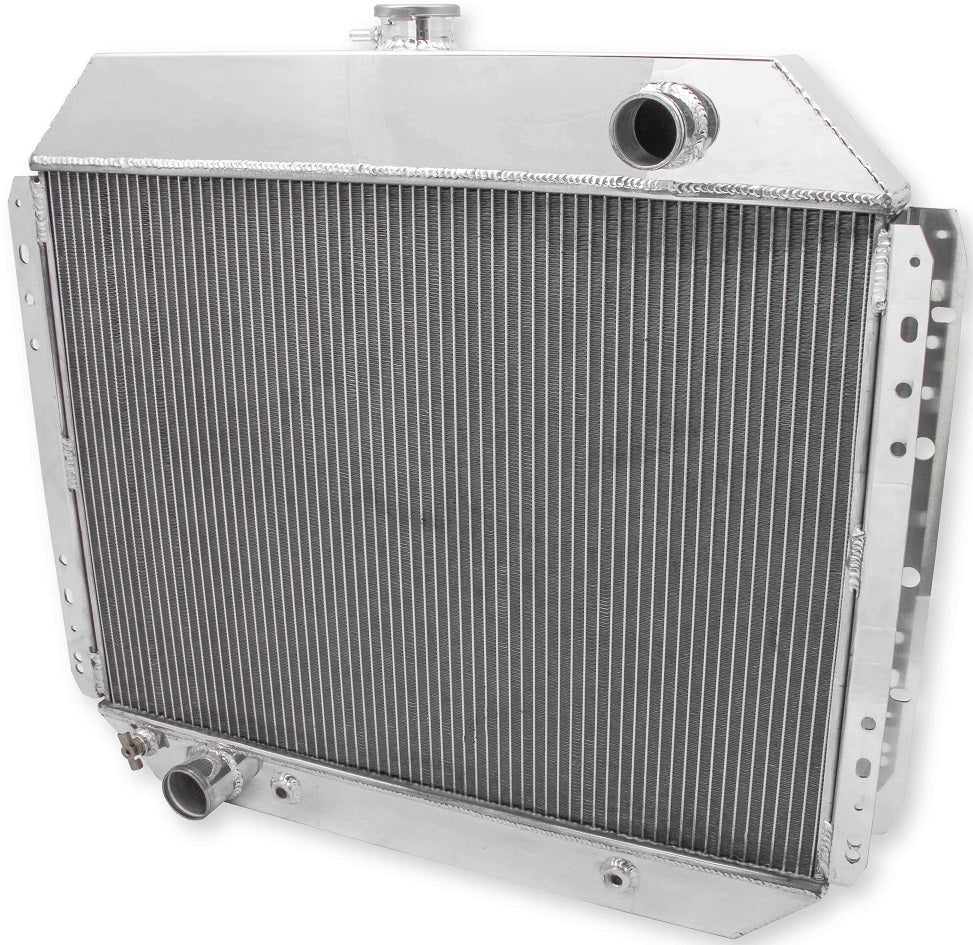

SEALED UNIT PARTS CO FB159 Radiator - Aluminum 2-Row for 66-79 Ford Truck V-8

Product Description

The SEALED UNIT PARTS CO FB159 radiator is engineered for Ford trucks manufactured between nineteen sixty-six and nineteen seventy-nine that are equipped with V-8 engines. It features a durable aluminum construction with TIG-welded seams and a billet aluminum filler neck.

• Core dimensions are nineteen and seven eighths inches by twenty-five and seven eighths inches.
• Inlet size is one and three quarters inches; outlet size is two inches.
• Includes a high-performance sixteen-pound radiator cap.

Product Highlights

This radiator promotes efficient cooling with increased fins per inch and is designed for a direct fit using a bracket mount.

Product Information

Standard Information

• Flow Style: Down flow
• Hose Location Inlet: Passenger side
• Hose Location Outlet: Driver side

Technical Specifications

• Cooling Row Diameter: three quarters inches
• Core Thickness: one point five seven inches
• Rows: two
• Transcooler Provision: one eighth-27NPT
• Overall Dimension: twenty-five and one eighth inches by twenty-nine and one half inches
