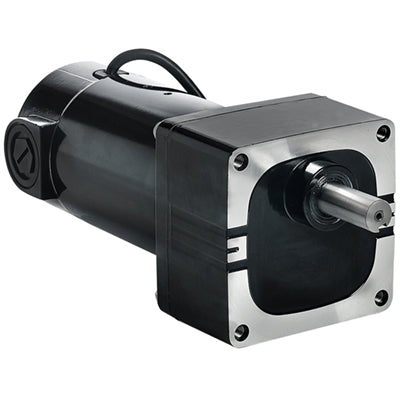

Sealed Unit Parts Co 1070 33A-WX Series Parallel Shaft DC Gearmotor

Product Description

The Sealed Unit Parts Co 1070 33A-WX Series Parallel Shaft DC Gearmotor features a robust design and is ideal for various applications. It includes a totally enclosed, non-ventilated design and an unvented gearhousing that ensures reliability. The motor is lubricated for life with synthetic lubricant and offers winding options of 90/130 VDC or 12/24 VDC, providing adjustable speed capabilities.

• High starting torque for demanding applications.
• Operates with 90/130 VDC or 12/24 VDC winding options.
• All steel helical gears meet or exceed AGMA 9 standards.

Product Highlights

This gearmotor is designed for high performance and durability, making it suitable for tasks requiring consistent torque and reliability.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: 1070

Technical Specifications

• Speed (rpm) @ 130V: 15
• Speed (rpm) @ 90V: 10
• Motor HP @ 130V: 1/4
• Motor HP @ 90V: 1/8
• Current (Amps) @ 130/90V: 1.7 / 1.3
• Gear Ratio: 172
• Rated Torque (lb-in): 200
• Radial Load (lbs): 300
• Length XH (inch): 8.7
• Weight (lbs): 9.7
