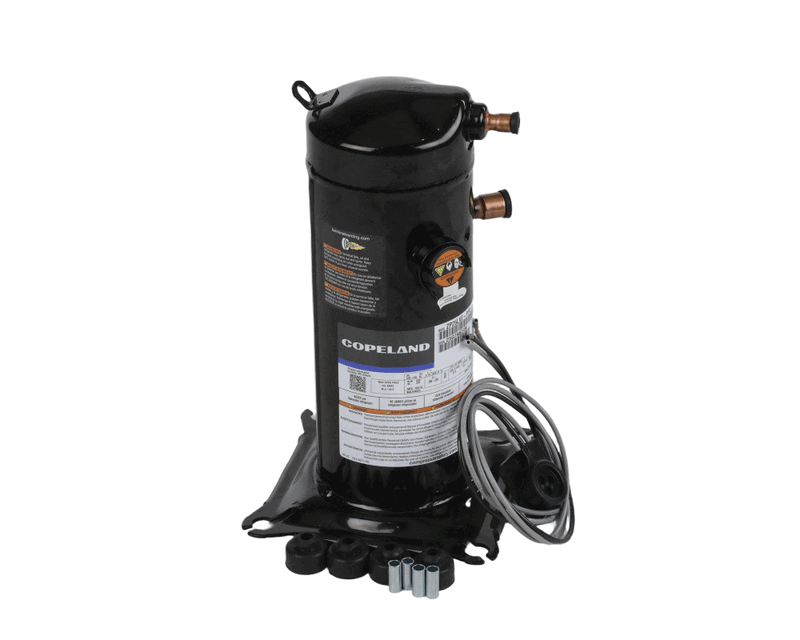

Rcd zp25lxe-pfv-800 Scroll Compressor 25000 Btu/h R410A

Product Description

The RCD zp25lxe-pfv-800 is a scroll compressor designed for residential and light-commercial split-system air conditioning and heat pump applications. Operating on 208/230 volt single-phase power at 60 Hz, it delivers 25,000 BTU/h of cooling capacity using R410A refrigerant. Scroll compressors use two interleaving spiral elements to compress refrigerant, producing fewer moving parts and quieter operation compared to reciprocating designs. This unit is installed by licensed HVAC technicians as the core vapor-compression component in the refrigerant circuit.

This compressor is suited for residential split-system and packaged air conditioning or heat pump installations where R410A is the system refrigerant. It operates on single-phase 208/230 volt power, making it compatible with standard residential electrical service. The scroll design is commonly specified in residential equipment in the 2-ton range. Technicians sourcing this part should verify system voltage, refrigerant type, and tonnage before installation to confirm proper fitment.

Key Features

• Scroll compressor design with fewer moving parts than reciprocating alternatives
• 25,000 BTU/h cooling capacity suitable for residential applications
• R410A refrigerant compatible
• 208/230 volt single-phase 60 Hz operation fits standard residential electrical service
• Dimensions of 15 inches length, 13.75 inches width, and 20 inches height for sizing in equipment cabinets

Compatibility

Designed as an OEM-style replacement scroll compressor for R410A residential split-system and heat pump equipment rated at approximately 25,000 BTU/h on single-phase 208/230 volt power. Verify system refrigerant, voltage, phase, and capacity requirements before ordering.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Recover all system refrigerant and relieve system pressure before opening refrigerant lines. Electrical power must be disconnected and locked out at the disconnect before any work begins. Follow the equipment manufacturer service literature for brazing procedures, oil charge requirements, and evacuation specifications prior to recharging the system with R410A.

Technical Specifications

• Compressor Type: Scroll
• Cooling Capacity: 25,000 BTU/h
• Voltage: 208/230 volts
• Phase: Single Phase
• Frequency: 60 Hz
• Refrigerant: R410A
• Length: 15 inches
• Width: 13.75 inches
• Height: 20 inches

Standard Information

• Brand: RCD
• Manufacturer Part Number: zp25lxe-pfv-800
