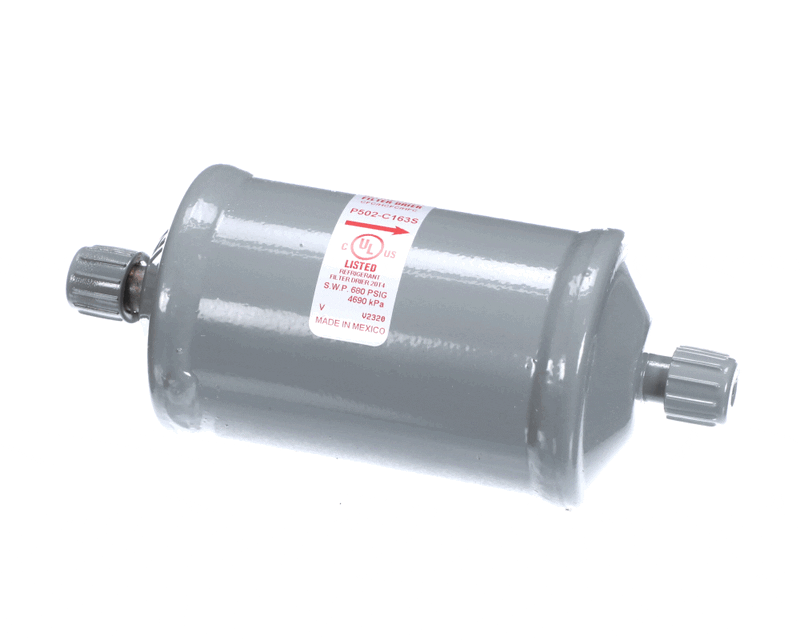

Rcd p502-c163s Liquid Line Filter Drier 16CI 3/8 Odf

Product Description

The RCD p502-c163s is a liquid line filter drier designed to remove moisture, acid, and contaminants from a refrigerant system. Sized at 16 cubic inches with a 3/8 inch ODF connection, it fits standard liquid line installations in residential and light commercial HVAC systems. Licensed HVAC technicians install this component during system commissioning, after a compressor burnout, or any time the refrigerant circuit has been opened and moisture contamination is a concern. Keeping the liquid line clean and dry protects the expansion device and compressor from acid and freeze-up damage.

This filter drier is installed on the liquid line between the condenser and the metering device. It is suited for residential split systems, packaged units, and light commercial refrigeration circuits where liquid line filtration is required. The 3/8 inch ODF connection size is common across a wide range of residential cooling equipment, making this a straightforward drop-in replacement during routine maintenance or refrigerant circuit service.

Key Features

• 16 cubic inch capacity for effective moisture and contaminant removal in the liquid line
• 3/8 inch ODF connections sized for standard residential and light commercial liquid line tubing
• Designed to protect the metering device and compressor from moisture, acid, and debris
• Suitable for use after compressor burnout or any open-system service event
• OEM-style replacement construction for reliable long-term system performance

Compatibility

Designed as an OEM-style liquid line filter drier replacement for residential and light commercial HVAC systems using 3/8 inch ODF liquid line connections.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and EPA Section 608 refrigerant handling requirements. Always recover refrigerant and de-energize the system before cutting or opening any refrigerant line. The drier should be installed with the flow arrow pointing in the direction of refrigerant flow toward the metering device. Replace the filter drier any time the system has been opened to atmosphere or a compressor burnout has occurred.

Technical Specifications

• Application: Liquid Line
• Capacity: 16 cubic inches
• Connection Size: 3/8 inch ODF
• Length: 16.15 inches
• Width: 10.2 inches
• Height: 2.8 inches

Standard Information

• Brand: RCD
• Manufacturer Part Number: p502-c163s
