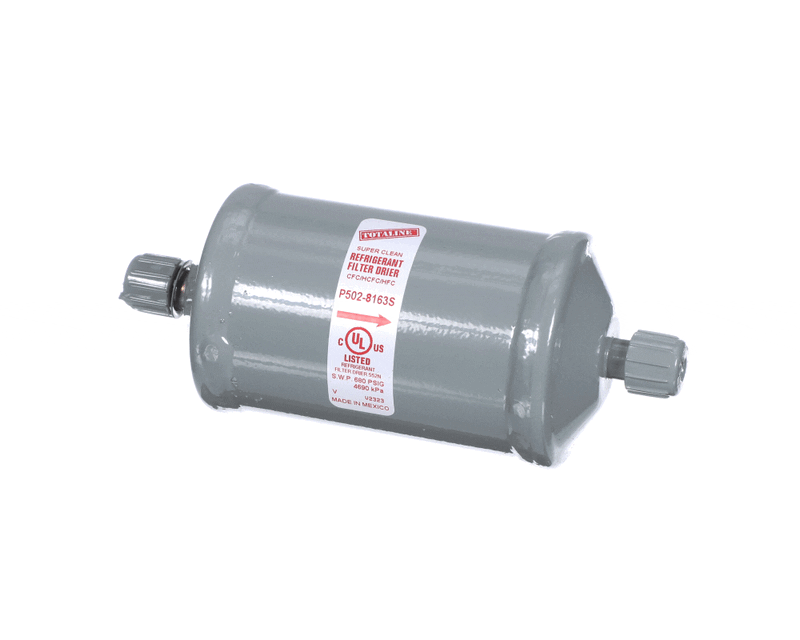

Rcd p502-8163s Filter Drier 3/8 Inch Odf

Product Description

The RCD p502-8163s is a refrigerant filter drier designed to remove moisture, acid, and particulate contaminants from the refrigerant circuit in air conditioning and heat pump systems. Sized at 8.4 inches in length, 2.9 inches in width, and 2.8 inches in height, it uses a 3/8 inch ODF connection for direct in-line installation on suction or liquid line service. This part is intended for installation by licensed HVAC technicians performing system service, compressor replacement, or refrigerant circuit repairs where the drier must be replaced to protect downstream components from moisture-induced damage.

The p502-8163s is suited for residential and light commercial split-system air conditioners and heat pumps. It is a replacement filter drier appropriate for systems requiring a 3/8 inch ODF brazed inline drier. Compatible models listed in product data include 38BRC042 360, 561AJX060000AEAA, and 48DA 008 500.

Key Features

• 3/8 inch ODF connection for brazed inline installation on refrigerant lines
• Removes moisture, acid, and particulate matter from the refrigerant circuit
• Compact form factor: 8.4 inches long, 2.9 inches wide, 2.8 inches in height
• Designed to protect compressors and metering devices from contamination damage
• OEM-specification replacement part for applicable Carrier-platform systems

Compatibility

Compatible models listed in the source data include 38BRC042 360, 561AJX060000AEAA, and 48DA 008 500. Verify the required ODF connection size and drier orientation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under applicable EPA Section 608 regulations. Recover all refrigerant from the system before cutting or unbrazing any refrigerant line. When brazing the new drier into the circuit, use dry nitrogen purge to prevent oxidation scale inside the copper tubing. Always replace the filter drier any time the refrigerant circuit is opened.

Technical Specifications

• Connection Type: 3/8 inch ODF
• Length: 8.4 inches
• Width: 2.9 inches
• Height: 2.8 inches

Standard Information

• Brand: RCD
• Manufacturer Part Number: p502-8163s
