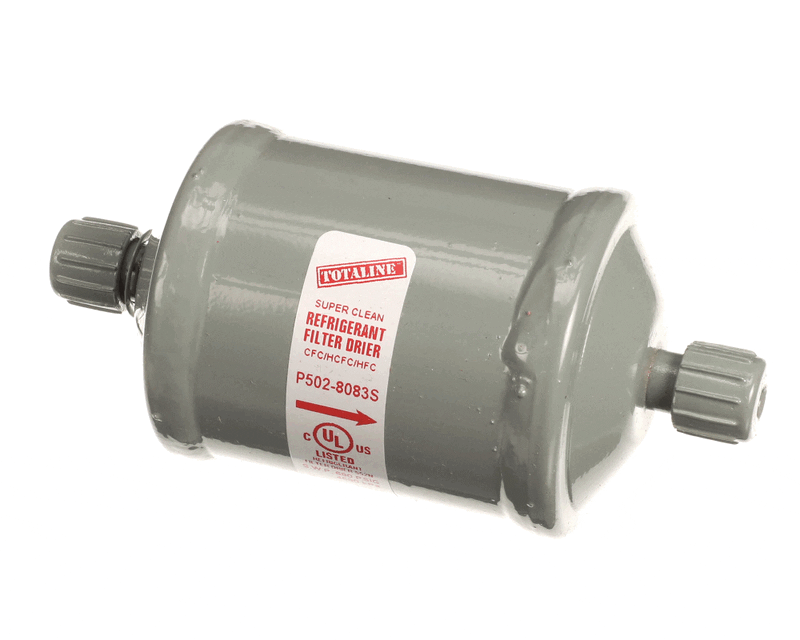

Rcd p502-8083s Line Dryer Hvac Refrigerant Circuit

Product Description

The RCD p502-8083s is a line dryer designed for use in refrigerant circuits in HVAC systems. A line dryer removes moisture and contaminants from the refrigerant stream, protecting compressors, metering devices, and heat exchanger surfaces from acid formation and ice blockage. Weighing 1.5 pounds and measuring 9 inches in length, this part is sized for standard residential and light commercial installation. Licensed HVAC technicians install this component as part of routine system service or following a compressor changeout.

Line dryers are a standard element of split-system and packaged HVAC refrigerant circuits. This dryer is appropriate for installation in the liquid line to protect downstream components including TXVs and orifice restrictors. It is also commonly installed during system evacuation and recharge procedures when moisture contamination is suspected or confirmed. The compact form factor accommodates tight equipment cabinet layouts typical of residential split systems and packaged units.

Key Features

• Removes moisture and contaminants from the refrigerant stream to prevent acid formation and ice blockage
• Compact dimensions of 9 inches x 6 inches x 5 inches suit tight equipment cabinet installations
• 1.5-pound unit weight simplifies single-technician handling and positioning
• OEM-style replacement part for reliable drop-in service

Compatibility

Designed as an OEM-style replacement line dryer for residential and light commercial HVAC refrigerant circuits requiring moisture and contamination removal.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Recover all refrigerant from the system before opening the refrigerant circuit. After installing the new line dryer, pressure-test and evacuate the system to the required micron level before recharging. Follow all local mechanical codes and manufacturer service procedures for refrigerant line brazing or flare connections.

Technical Specifications

• Length: 9 inches
• Width: 6 inches
• Height: 5 inches
• Weight: 1.5 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: p502-8083s
