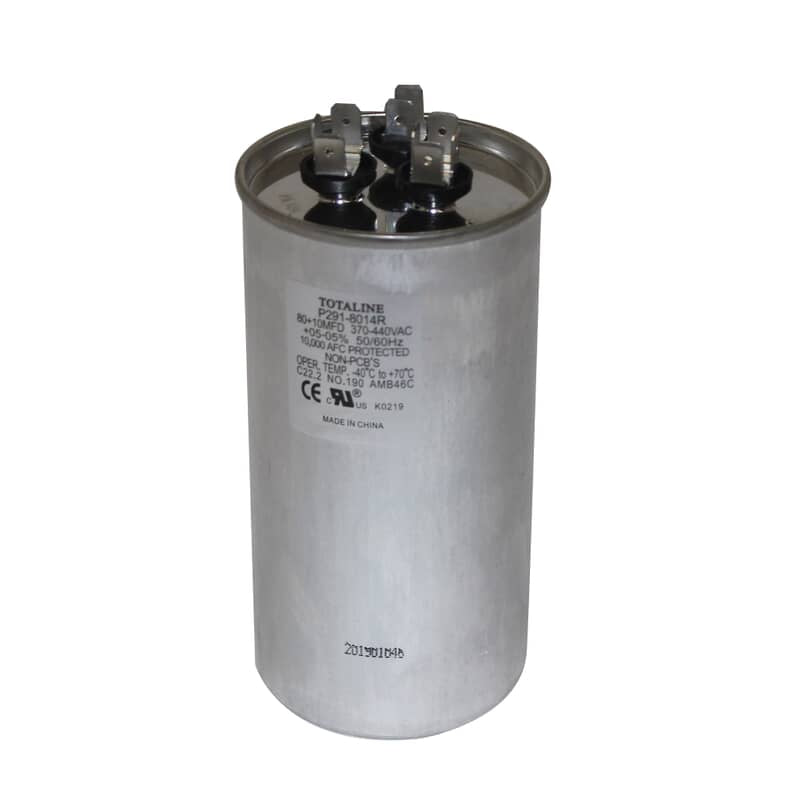

Rcd p291-8014r Dual Run Capacitor 80+10 Mfd 440V

Product Description

The RCD p291-8014r is a dual run capacitor designed to stabilize motor operation and support compressor function in HVAC systems. Rated at 80+10 microfarads (MFD) with a 440-volt AC rating, this round capacitor maintains the phase difference needed to keep both the compressor and fan motor running at correct torque and efficiency. The aluminum case and polypropylene film dielectric construction provide durability in demanding service environments. It is installed by licensed HVAC technicians as an OEM-style replacement during routine service or component failure calls.

This capacitor is suited for residential and light commercial HVAC applications where a dual round run capacitor is required. The quick-connect terminals allow for straightforward swap-out during service calls. It is rated for 50/60 Hz operation, making it compatible with standard North American electrical systems. Typical installations include split-system air conditioners and heat pumps where both the compressor and condenser fan motor share a single dual capacitor.

Key Features

• Dual capacitor design: 80 MFD and 10 MFD in a single round unit
• 440V AC voltage rating with 50/60 Hz frequency compatibility
• Quick-connect terminals for faster field replacement
• Aluminum case with polypropylene film dielectric for durability
• Tolerance rated at plus or minus 6 percent
• Temperature rated from -29 to 68 degrees C for broad operating range

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC systems requiring an 80+10 MFD, 440V AC round capacitor with quick-connect terminals.

Installation Notes

This capacitor is replaced by a licensed HVAC technician. Always disconnect and lock out power to the unit before accessing the capacitor compartment, and discharge any stored voltage in the existing capacitor before handling. Use insulated tools rated for the operating voltage. Proper disposal of old capacitors may be subject to local regulations due to the materials involved.

Technical Specifications

• Capacitance: 80+10 MFD
• Voltage: 440V AC
• Type: Dual Run
• Shape: Round
• Frequency: 50/60 Hz
• Tolerance: plus or minus 6 percent
• Terminal Type: Quick Connect
• Temperature Rating: -29 to 68 degrees C
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch
• Material: Aluminum case, Polypropylene film dielectric

Standard Information

• Brand: RCD
• Manufacturer Part Number: p291-8014r
